PCA9535 Series
Manufacturer: ON Semiconductor
Beta
⌘K
IC XPNDR 100KHZ I2C SMBUS 24SOIC
| Part | Interface | Output Type | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output Source/Sink [custom] | Current - Output Source/Sink [custom] | Number of I/O | Package / Case [custom] | Package / Case | Package / Case [custom] | Voltage - Supply [Max] | Voltage - Supply [Min] | Features | Clock Frequency | Supplier Device Package | Interrupt Output | Mounting Type | Current - Output Source/Sink | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | I2C SMBus | Push-Pull | -55 °C | 125 °C | 10 mA | 25 mA | 16 | 7.5 mm | 24-SOIC | 0.295 in | 5.5 V | 1.65 V | POR | 100 kHz | 24-SOIC | Surface Mount | |||
 ON Semiconductor | I2C SMBus | Push-Pull | -55 °C | 125 °C | 10 mA | 25 mA | 16 | 24-WFQFN Exposed Pad | 5.5 V | 1.65 V | POR | 100 kHz | 24-QFN (4x4) | Surface Mount | |||||

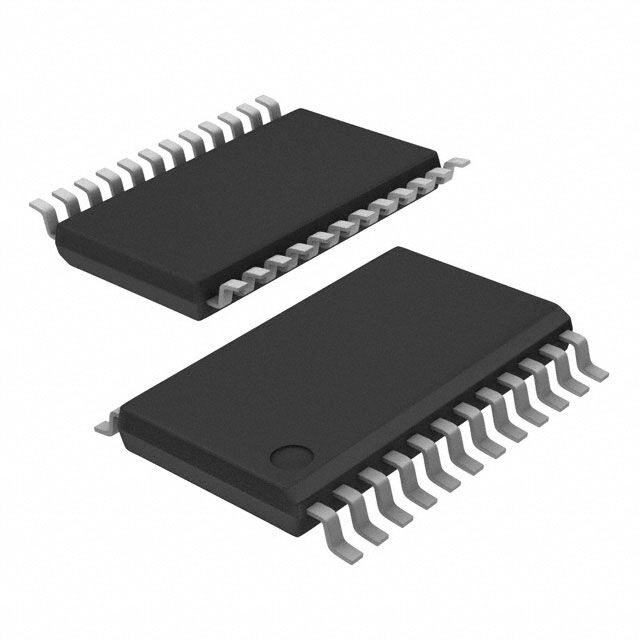

 ON Semiconductor | I2C SMBus | Open Drain | -55 °C | 125 °C | 16 | 24-TSSOP | 5.5 V | 1.65 V | POR | 100 kHz | 24-TSSOP | Surface Mount | 25 mA | 0.173 in 4.4 mm | |||||
 ON Semiconductor | I2C SMBus | Push-Pull | -55 °C | 125 °C | 10 mA | 25 mA | 16 | 24-TSSOP | 5.5 V | 1.65 V | POR | 100 kHz | 24-TSSOP | Surface Mount | 0.173 in 4.4 mm |
