146763 Series

Catalog

CONN RCPT 4POS 0.1 TIN-LEAD PCB

Part	Insulation Material	Contact Material	Current Rating (Amps)	Fastening Type	Termination	Mounting Type	Contact Finish - Mating	Contact Finish - Post	Style	Contact Type	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Number of Rows	Connector Type	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating
TE Connectivity Raychem Cable Protection 146763-6	Polyester Glass Filled	Phosphor Bronze	2 A	Push-Pull	Solder	Through Hole	Tin-Lead	Tin-Lead	Board to Board Cable	Female Socket	Black	0.1 in	2.54 mm	150 Áin	3.81 Ám	4	2.92 mm	0.115 in	All	150 Áin	3.81 Ám	Square	1	Receptacle	0.34 in	8.64 mm	125 °C	-65 ░C
TE Connectivity Raychem Cable Protection 5-146763-3	Polyester Glass Filled	Phosphor Bronze	2 A	Push-Pull	Solder	Through Hole		Tin	Board to Board Cable	Female Socket	Black	0.1 in	2.54 mm	150 Áin	3.81 Ám	10	2.92 mm	0.115 in	All	150 Áin	3.81 Ám	Square	1	Receptacle	0.34 in	8.64 mm	125 °C	-65 ░C	UL94 V-0

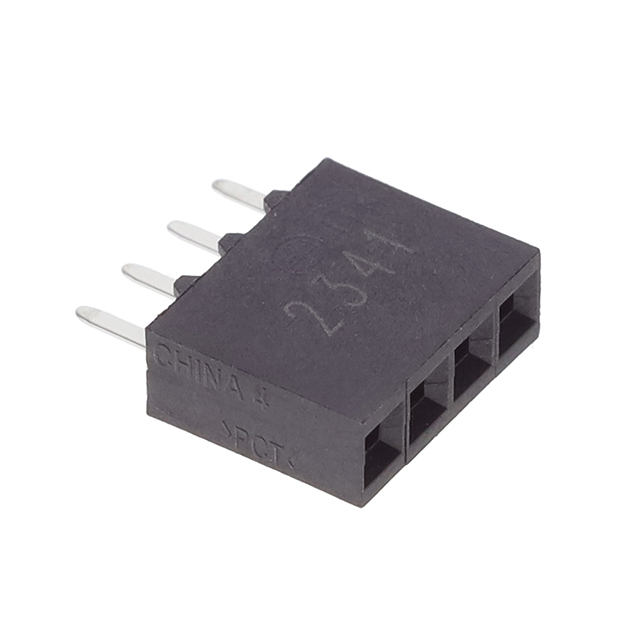

TE Connectivity Raychem Cable Protection 5-146763-6	Polyester Glass Filled	Phosphor Bronze	2 A	Push-Pull	Solder	Through Hole		Tin	Board to Board Cable	Female Socket	Black	0.1 in	2.54 mm	150 Áin	3.81 Ám	4	2.92 mm	0.115 in	All	150 Áin	3.81 Ám	Square	1	Receptacle	0.34 in	8.64 mm	125 °C	-65 ░C	UL94 V-0
