833-010 Series
Manufacturer: EDAC Inc.
Beta
⌘K

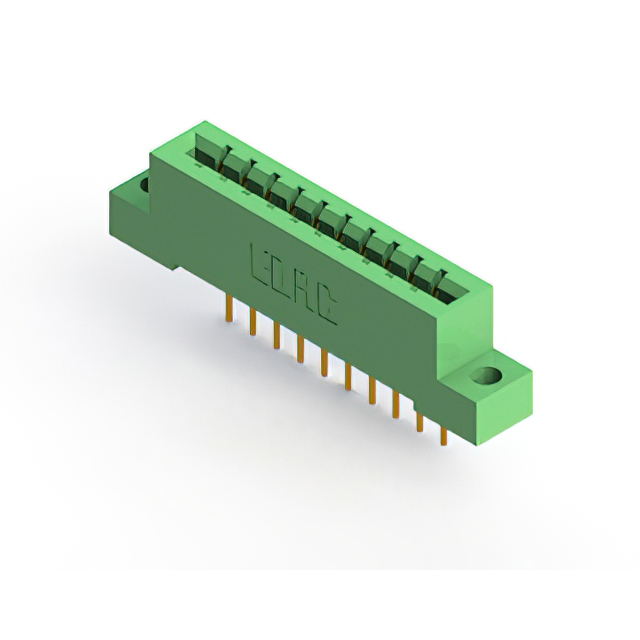

CONN EDGE SGL FMALE 10POS 0.156
| Part | Material - Insulation | Termination Rows | Number of Rows | Termination | Color | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Pitch | Pitch | Flange Feature [diameter] | Flange Feature [diameter] | Contact Material | Card Type | Read Out | Mounting Type | Contact Finish | Gender | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Solder | Green | 10 | 0.25 Ám | 10 Áin | 125 °C | -40 C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.96 mm | 0.156 in | 0.156 " | 3.96 mm | Copper Alloy | Non Specified - Single Edge | Single | Right Angle Through Hole | Gold | Female | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Wire Wrap | Green | 10 | 0.25 Ám | 10 Áin | 125 °C | -40 C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.96 mm | 0.156 in | 0.128 " | 3.25 mm | Copper Alloy | Non Specified - Single Edge | Single | Through Hole | Gold | Female | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Wire Wrap | Green | 10 | 0.25 Ám | 10 Áin | 125 °C | -40 C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.96 mm | 0.156 in | 0.156 " | 3.96 mm | Copper Alloy | Non Specified - Single Edge | Single | Through Hole | Gold | Female | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Solder | Green | 10 | 0.25 Ám | 10 Áin | 125 °C | -40 C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | Non Specified - Single Edge | Single | Through Hole | Gold | Female | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Solder | Green | 10 | 0.25 Ám | 10 Áin | 125 °C | -40 C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.96 mm | 0.156 in | 0.116 " | 2.95 mm | Copper Alloy | Non Specified - Single Edge | Single | Right Angle Through Hole | Gold | Female | Floating Bobbin Top Mount Opening |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Wire Wrap | Green | 10 | 0.25 Ám | 10 Áin | 125 °C | -40 C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.96 mm | 0.156 in | 0.128 " | 3.25 mm | Copper Alloy | Non Specified - Single Edge | Single | Through Hole | Gold | Female | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Solder | Green | 10 | 0.25 Ám | 10 Áin | 125 °C | -40 C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.96 mm | 0.156 in | 0.128 " | 3.25 mm | Copper Alloy | Non Specified - Single Edge | Single | Right Angle Through Hole | Gold | Female | Side Mount Opening Unthreaded |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Solder | Green | 10 | 0.25 Ám | 10 Áin | 125 °C | -40 C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | Non Specified - Single Edge | Single | Through Hole | Gold | Female | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Wire Wrap | Green | 10 | 0.25 Ám | 10 Áin | 125 °C | -40 C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.96 mm | 0.156 in | 0.156 " | 3.96 mm | Copper Alloy | Non Specified - Single Edge | Single | Through Hole | Gold | Female | Flush Mount Top Opening Unthreaded |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Solder | Green | 10 | 0.25 Ám | 10 Áin | 125 °C | -40 C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.96 mm | 0.156 in | 0.128 " | 3.25 mm | Copper Alloy | Non Specified - Single Edge | Single | Through Hole | Gold | Female | Side Mount Opening Unthreaded |
