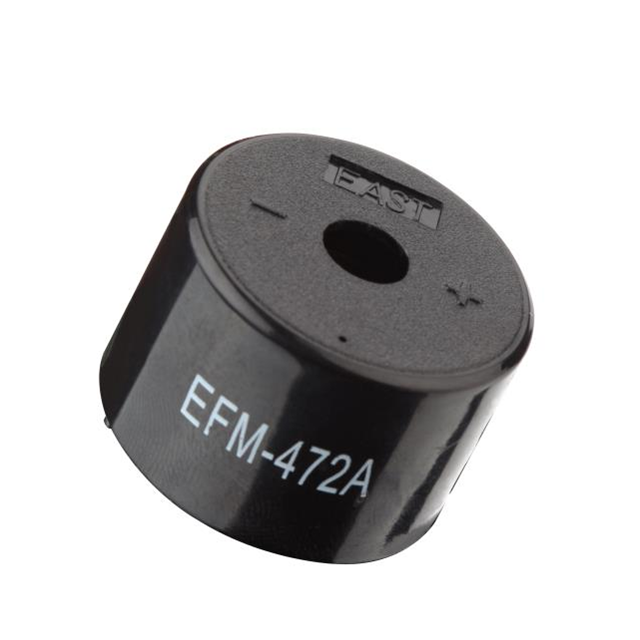

EFM-472 Series
Manufacturer: East Electronics
Beta
⌘K
BUZZER 12V 30MM TH
| Part | Termination | Operating Mode | Height - Seated (Max) [Max] | Height - Seated (Max) | Operating Temperature [Min] | Operating Temperature [Max] | Frequency | Current - Supply | Voltage Range [Max] | Voltage Range [Min] | Mounting Type | Sound Pressure Level (SPL) | Voltage - Rated | Size / Dimension | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 East Electronics | PC Pins | Continuous | 0.795 in | 20.2 mm | -20 ░C | 70 °C | 3.5 kHz | 10 mA | 20 V | 3 V | Through Hole | 90 dB | 12 VDC | 30 mm | 1.181 " |
