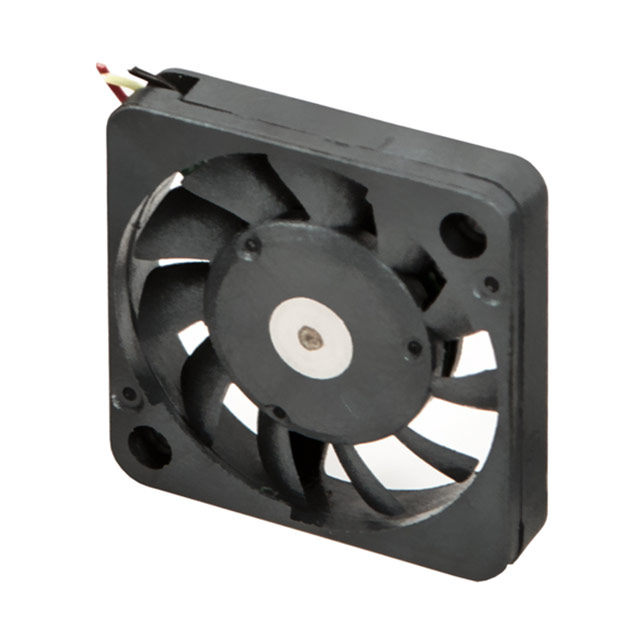

ASB01703 Series
Manufacturer: Delta Electronics
Beta
⌘K
FAN BLOWER 17X3MM 3VDC RECT CONN
| Part | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Lifetime @ Temp. | Material - Frame | Current Rating (Amps) | Power (Watts) | Termination | Width [x] | Operating Temperature [Min] | Operating Temperature [Max] | Bearing Type | Weight [custom] | Weight [custom] | Air Flow | Air Flow | RPM | Static Pressure | Static Pressure | Voltage - Rated | Features | Fan Type | Noise | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 3.5 VDC | 2 V | Plastic | 30000 Hrs | Plastic | 60 mA | 180 mW | 3 Position Rectangular Connector | 3 mm | -10 °C | 60 °C | Sleeve | 0.004 lb | 1.81 g | 0.51 CFM | 0.014 m³/min | 12000 RPM | 17.6 Pa | 0.071 in H2O | 3 VDC | Locked Rotor Protection Speed Sensor (Tach) | Blower | 30 dB | 17 mm | 17 mm |
