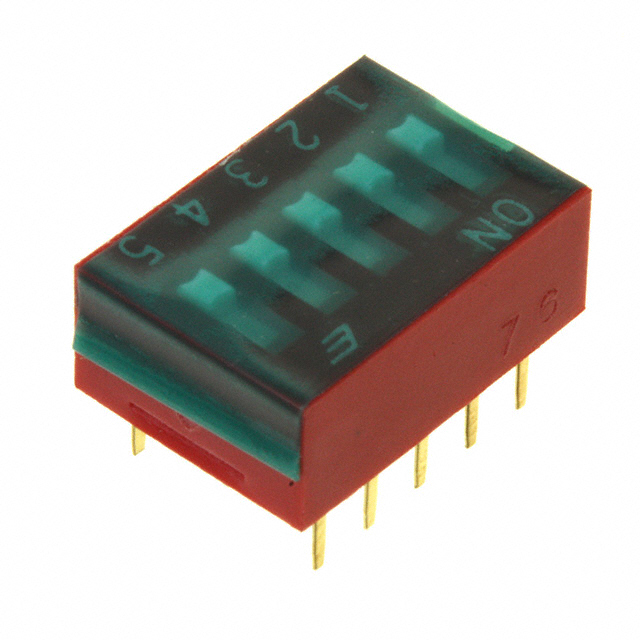

KAS1105 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Length | Length | Electrical Life | Mechanical Life | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Level | Pitch | Pitch | Current Rating (Amps) | Contact Finish | Voltage Rating | Number of Positions | Washable | Mounting Type | Actuator Type | Height Above Board [z] | Height Above Board [z] | Termination Style | Contact Material | Features | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 14.06 mm | 0.554 in | 2000 Steps | 2000 Cycles | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -40 C | Flush Recessed | 2.54 mm | 0.1 " | 25 mA | Gold | 24 VDC | 5 | Through Hole | Slide (Standard) | 0.236 in | 6 mm | PC Pin | Phosphor Bronze | Tape Seal | SPST |
