SSL-LX20 Series

Catalog

LED RED DIFFUSED 6CHIP JUMBO T/H

Part	Configuration	Current - Test	Package / Case	Supplier Device Package	Lens Transparency	Lens Size [diameter]	Voltage - Forward (Vf) (Typ)	Lens Style	Millicandela Rating	Lens Color	Color	Viewing Angle	Wavelength - Peak	Mounting Type	Height (Max) [Max] [z]

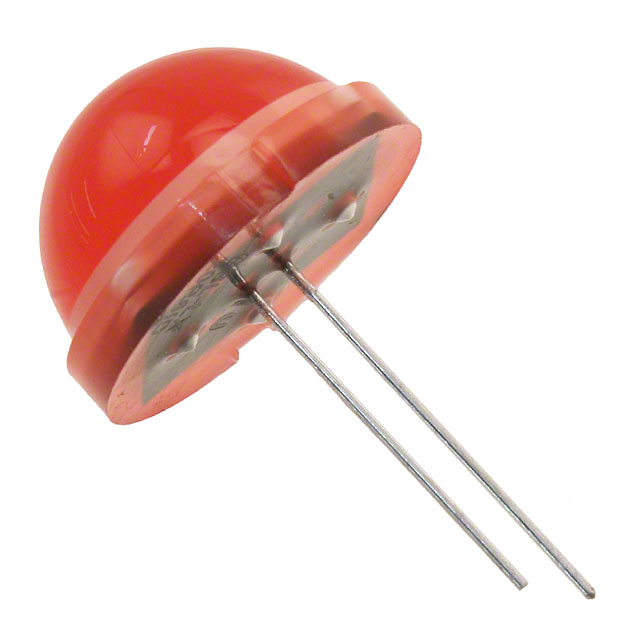

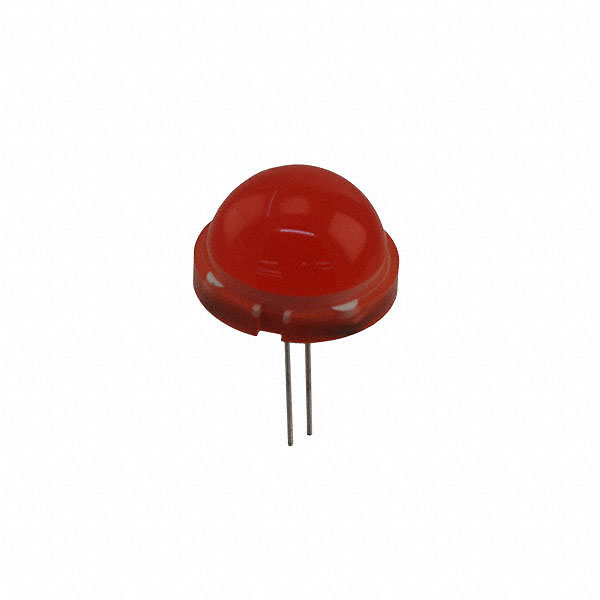

Lumex Opto/Components Inc. SSL-LX20R6ID	Standard	20 mA	Radial	6-CHIP JUMBO	Diffused	20 mm	6 V	Round with Domed Top	35 mcd	Red	Red	120 °	635 nm	Through Hole	13.5 mm
Lumex Opto/Components Inc. SSL-LX20R6SID	Standard	20 mA	Radial	6-CHIP JUMBO	Diffused	20 mm	6.3 V	Round with Domed Top	200 mcd	Red	Red	120 °	636 nm	Through Hole	13.5 mm
Lumex Opto/Components Inc. SSL-LX20R6SRD	Standard	20 mA	Radial	6-CHIP JUMBO	Diffused	20 mm	5.1 V	Round with Domed Top	60 mcd	Red	Red	120 °	660 nm	Through Hole	13.5 mm

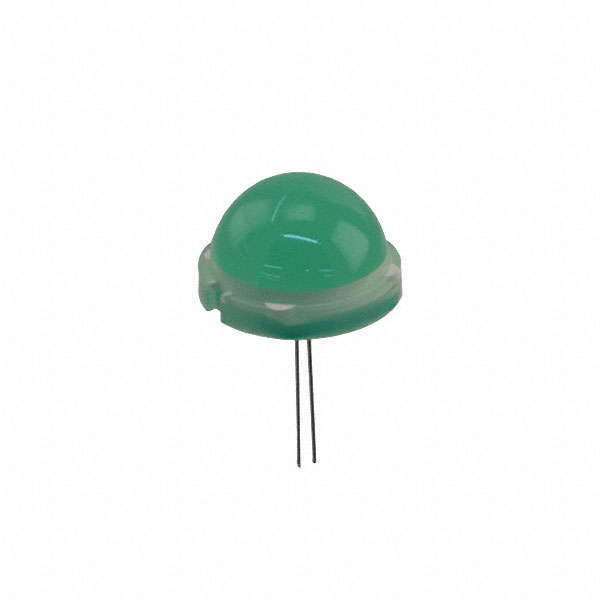

Lumex Opto/Components Inc. SSL-LX20R6GD	Standard	20 mA	Radial	6-CHIP JUMBO	Diffused	20 mm	6.6 V	Round with Domed Top	25 mcd	Green	Green	120 °	565 nm	Through Hole	13.5 mm

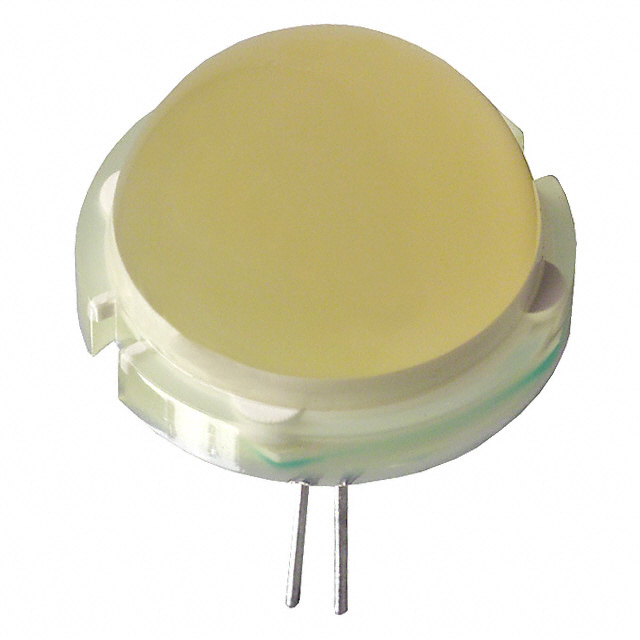

Lumex Opto/Components Inc. SSL-LX20R6YD	Standard	20 mA	Radial	6-CHIP JUMBO	Diffused	20 mm	6.3 V	Round with Domed Top	23 mcd	Yellow	Yellow	120 °	585 nm	Through Hole	13.5 mm
