842-076 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 76POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Read Out	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Mounting Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Material	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Number of Positions	Contact Finish	Contact Type	Color	Termination	Gender	Card Thickness [Max]	Card Thickness [Min]	Features
EDAC Inc. 842-076-559-203	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	125 °C	-40 C	Non Specified - Dual Edge	Right Angle Through Hole	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Copper Alloy	38	0.25 Ám	10 Áin	2	76	Gold	Cantilever	Green	Solder	Female	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-076-559-212	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	125 °C	-40 C	Non Specified - Dual Edge	Right Angle Through Hole	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Copper Alloy	38	0.25 Ám	10 Áin	2	76	Gold	Cantilever	Green	Solder	Female	0.07 in 1.78 mm	0.054 in 1.37 mm

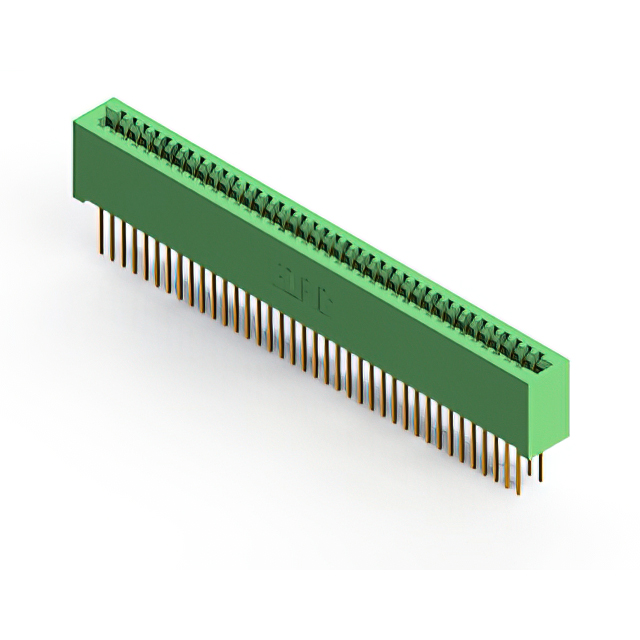

EDAC Inc. 842-076-542-201	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	125 °C	-40 C	Non Specified - Dual Edge	Through Hole				Copper Alloy	38	0.25 Ám	10 Áin	2	76	Gold	Cantilever	Green	Wire Wrap	Female	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-076-555-201	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	125 °C	-40 C	Non Specified - Dual Edge	Board Edge Straddle Mount				Copper Alloy	38	0.25 Ám	10 Áin	2	76	Gold	Cantilever	Green	Solder	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender

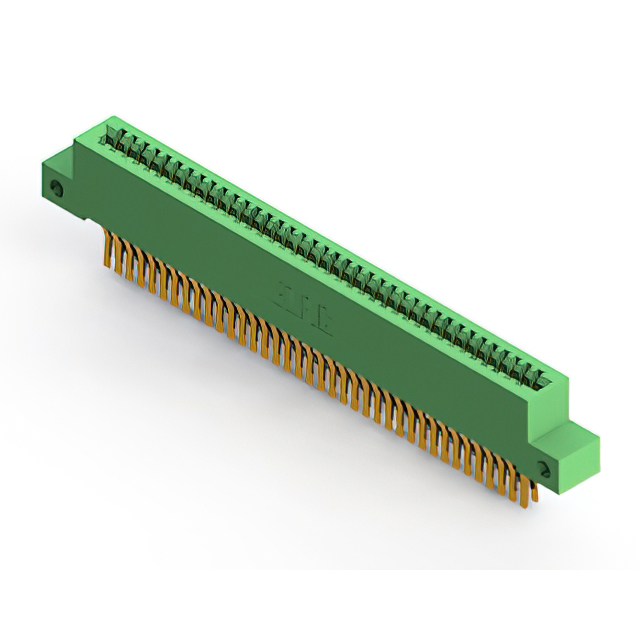

EDAC Inc. 842-076-560-212	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	125 °C	-40 C	Non Specified - Dual Edge	Board Edge Straddle Mount	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Copper Alloy	38	0.25 Ám	10 Áin	2	76	Gold	Cantilever	Green	Solder	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender

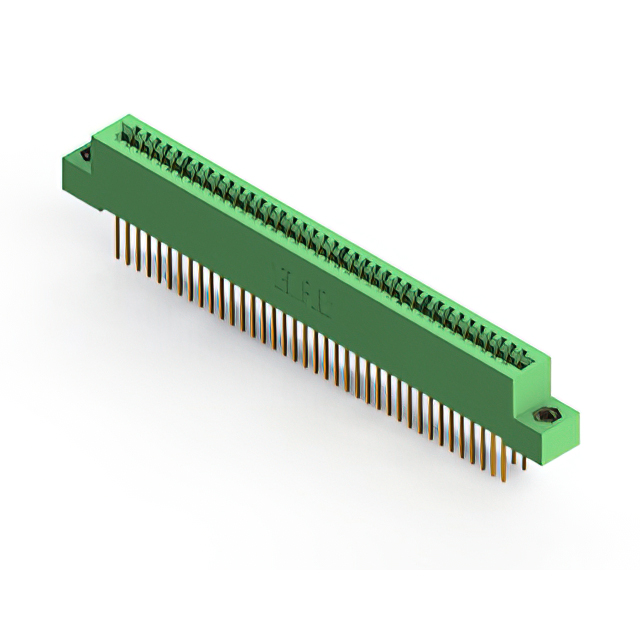

EDAC Inc. 842-076-542-208	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	125 °C	-40 C	Non Specified - Dual Edge	Through Hole		4-40 Flush Mount Threaded Insert Top Opening		Copper Alloy	38	0.25 Ám	10 Áin	2	76	Gold	Cantilever	Green	Wire Wrap	Female	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-076-523-201	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	125 °C	-40 C	Non Specified - Dual Edge	Through Hole				Copper Alloy	38	0.25 Ám	10 Áin	2	76	Gold	Cantilever	Green	Solder	Female	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-076-542-212	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	125 °C	-40 C	Non Specified - Dual Edge	Through Hole	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Copper Alloy	38	0.25 Ám	10 Áin	2	76	Gold	Cantilever	Green	Wire Wrap	Female	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-076-559-201	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	125 °C	-40 C	Non Specified - Dual Edge	Right Angle Through Hole				Copper Alloy	38	0.25 Ám	10 Áin	2	76	Gold	Cantilever	Green	Solder	Female	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-076-500-207	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	125 °C	-40 C	Non Specified - Dual Edge	Through Hole		Flush Mount M3 Threaded Insert Top Opening		Copper Alloy	38	0.25 Ám	10 Áin	2	76	Gold	Cantilever	Green	Solder Eyelet(s)	Female	0.07 in 1.78 mm	0.054 in 1.37 mm
