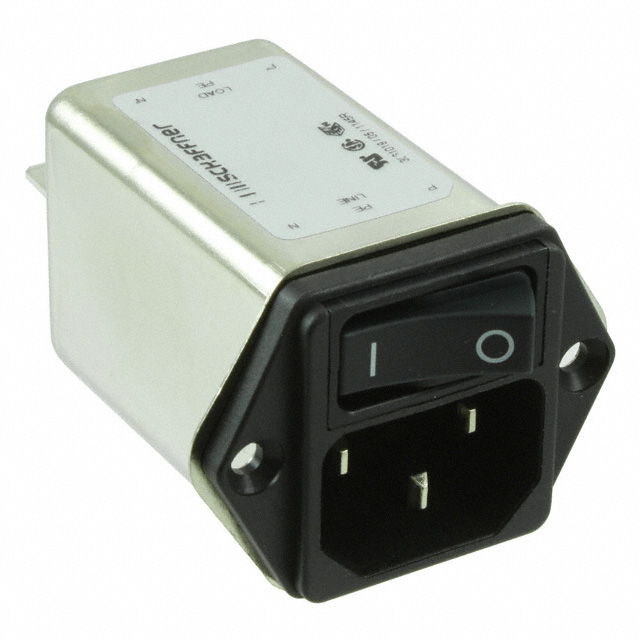

Schaffner FN9264 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Current Rating - Filter	Material Flammability Rating	Connector Style	Filter Type	Connector Type	Termination	Termination	Termination	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Ingress Protection	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Switch Features	Mounting Type
TE Connectivity AMP Connectors FN9264S-2-06	2 A	UL94 V-2	IEC 320-C14	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	2.5 mm	0.039 in	0.098 in	1 mm	IP40	CQC CSA ENEC UL	33 mm	29.5 mm	Switch On-Off	Panel Mount Snap-In

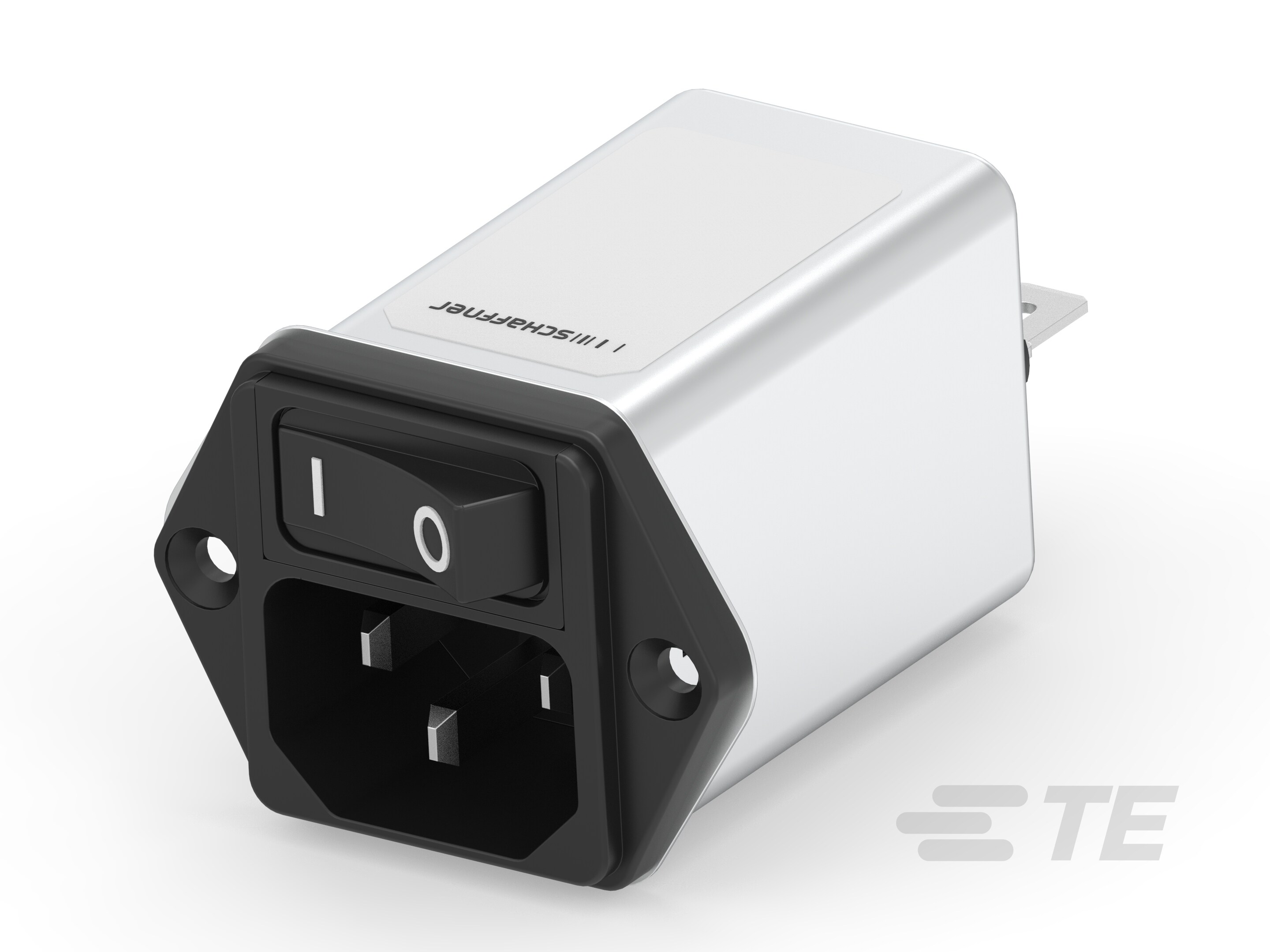

TE Connectivity AMP Connectors FN9264B-10-06	10 A	UL94 V-2	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "					IP40	CQC CSA ENEC UL	33 mm	29 mm	Switch On-Off	Flange Panel Mount
TE Connectivity AMP Connectors FN9264B-4-06	4.6 A	UL94 V-2	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "					IP40	CE CQC CSA ENEC UL	33 mm	29 mm	Switch On-Off	Flange Panel Mount
TE Connectivity AMP Connectors FN9264S-4-06	4 A	UL94 V-2	IEC 320-C14	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	2.5 mm	0.039 in	0.098 in	1 mm	IP40	CQC CSA ENEC UL	33 mm	29.5 mm	Switch On-Off	Panel Mount Snap-In
TE Connectivity AMP Connectors FN9264S-6-06	6 A	UL94 V-2	IEC 320-C14	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	2.5 mm	0.039 in	0.098 in	1 mm	IP40	CQC CSA ENEC UL	33 mm	29.5 mm	Switch On-Off	Panel Mount Snap-In
TE Connectivity AMP Connectors FN9264-3-06	3.6 A	UL94 V-2	IEC 320-C14	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "						CQC CSA ENEC UL	33 mm	29 mm	Switch On-Off	Flange Panel Mount
TE Connectivity AMP Connectors FN9264-6-06	6 A	UL94 V-2	IEC 320-C14	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "					IP40	CQC CSA ENEC UL	33 mm	29 mm	Switch On-Off	Flange Panel Mount
TE Connectivity AMP Connectors FN9264SB-2-06	2.3 A	UL94 V-2	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	2.5 mm	0.039 in	0.098 in	1 mm	IP40	CE CQC CSA ENEC UL	33 mm	29.5 mm	Switch On-Off	Panel Mount Snap-In
TE Connectivity AMP Connectors FN9264SB-10-06	11.5 A	UL94 V-2	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	2.5 mm	0.039 in	0.098 in	1 mm	IP40	CE CQC CSA ENEC UL	33 mm	29.5 mm	Switch On-Off	Panel Mount Snap-In
TE Connectivity AMP Connectors FN9264SB-4-06	4.6 A	UL94 V-2	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	2.5 mm	0.039 in	0.098 in	1 mm	IP40	CE CQC CSA ENEC UL	33 mm	29.5 mm	Switch On-Off	Panel Mount Snap-In
