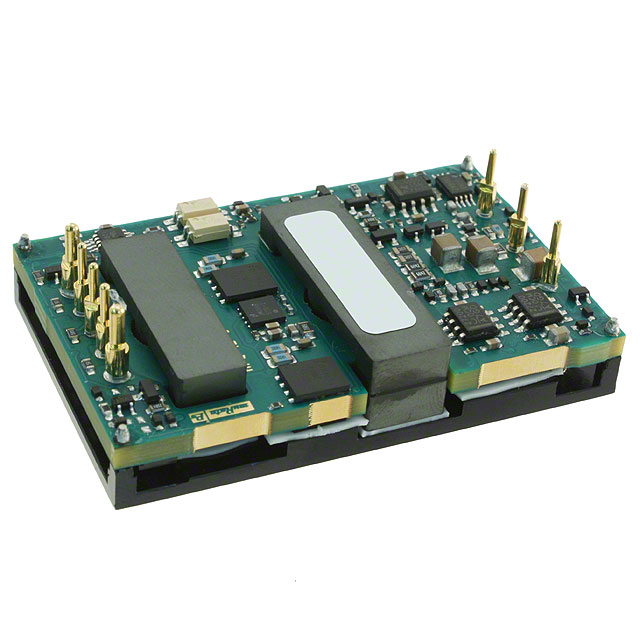

HPQ-12 Series

Manufacturer: Murata Power Solutions Inc.

Catalog

DC DC CONVERTER 12V 300W

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Power (Watts)	Current - Output (Max) [Max]	Control Features	Features	Voltage - Isolation	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Input (Max) [Max]	Package / Case	Type	Voltage - Output 1	Applications	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
Murata Power Solutions Inc. HPQ-12/25-D48NBL1-C	0.49 in	2.3 "	1.45 in	36.8 mm	58.4 mm	12.5 mm	36 V	300 W	25 A	Active Low Enable	OCP OTP OVP Remote On/Off SCP UVLO	2250 VDC	Through Hole	85 °C	-40 °C	95 %	75 V	8-DIP Module	Isolated Module	12 V	ITE (Commercial)	1
Murata Power Solutions Inc. HPQ-12/25-D48PH-C				36.8 mm	58.4 mm	11.2 mm	36 V	300 W	25 A	Active High Enable	OCP OTP OVP Remote On/Off SCP UVLO	2250 VDC	Through Hole	85 °C	-40 °C	94.5 %	75 V	1/4 Brick 8-DIP Module	Isolated Module	12 V	ITE (Commercial)	1	1.45 in	0.44 "	2.3 in
Murata Power Solutions Inc. HPQ-12/25-D48PB-C				36.8 mm	58.4 mm	12.7 mm	36 V	300 W	25 A	Active High Enable	OCP OTP OVP Remote On/Off SCP UVLO	2250 VDC	Through Hole	85 °C	-40 °C	94.5 %	75 V	1/4 Brick 8-DIP Module	Isolated Module	12 V	ITE (Commercial)	1	1.45 in	0.5 in	2.3 in
Murata Power Solutions Inc. HPQ-12/25-D48P-C				36.8 mm	58.4 mm	11.2 mm	36 V	300 W	25 A	Active High Enable	OCP OTP OVP Remote On/Off SCP UVLO	2250 VDC	Through Hole	85 °C	-40 °C	94.5 %	75 V	1/4 Brick 8-DIP Module	Isolated Module	12 V	ITE (Commercial)	1	1.45 in	0.44 "	2.3 in
Murata Power Solutions Inc. HPQ-12/25-D48NX-C				36.8 mm	58.4 mm	11.2 mm	36 V	300 W	25 A	Active Low Enable	OCP OTP OVP Remote On/Off SCP UVLO	2250 VDC	Through Hole	85 °C	-40 °C	94.5 %	75 V	1/4 Brick 8-DIP Module	Isolated Module	12 V	ITE (Commercial)	1	1.45 in	0.44 "	2.3 in
