AMPLIMITE Kit Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
D SUB SCREWLOCK / SLIDELOCK, AMPLIMITE SERIES, 10.41 MM, 4-40
| Part | For Use With/Related Products | Accessory Type | Thread Size | Length - Below Head [x] | Length - Below Head [x] | Features | Number of Positions | Cable Exit | Hardware | Cable Type | Primary Material | Material | Shielding | Color | Compatible D-Sub Size | Compatible Shell Size | Plating | Cable Exit | Number of Positions [Min] | Number of Positions [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

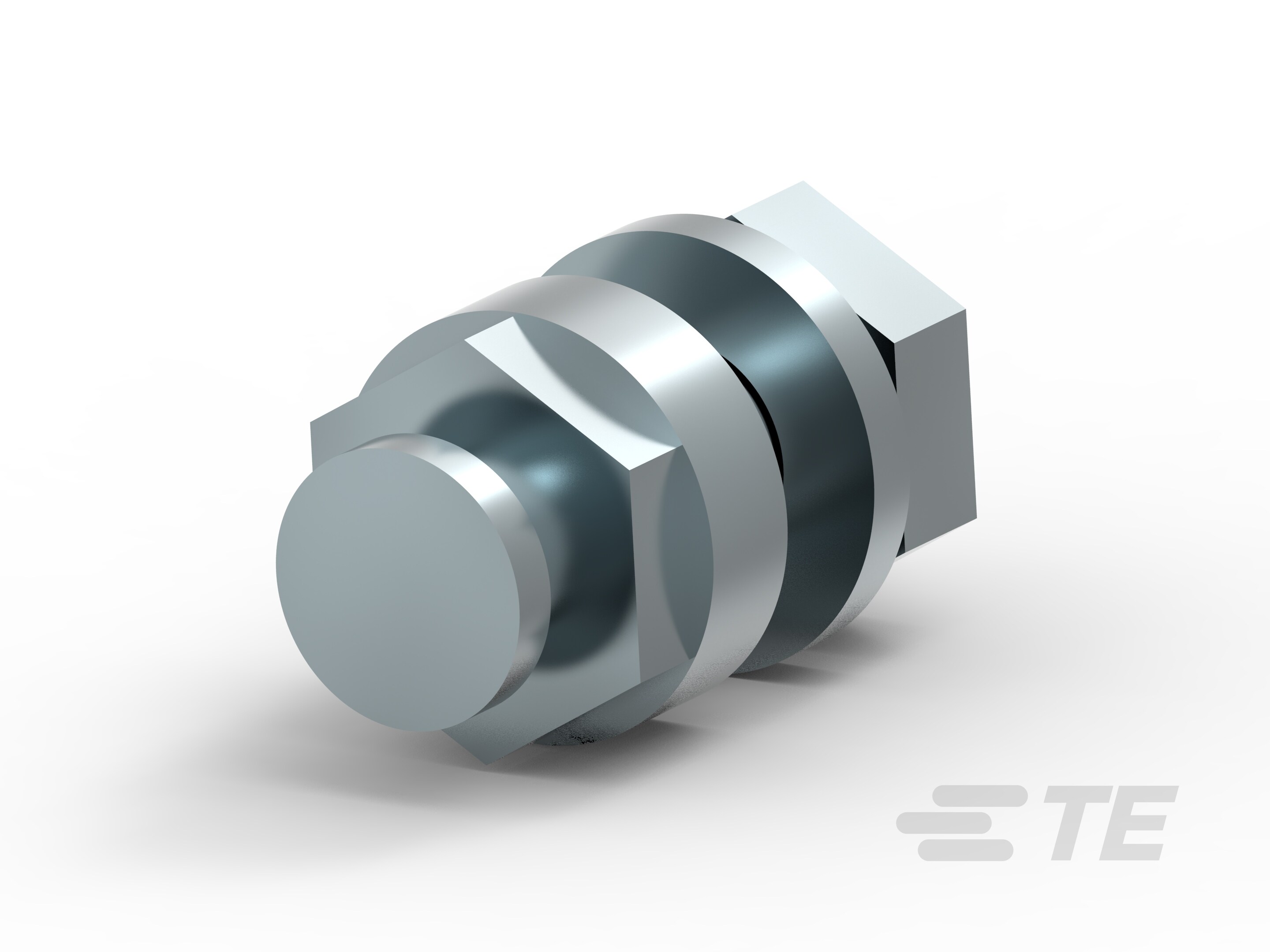

 TE Connectivity AMP Connectors | AMPLIMITE Series HDE AMPLIMITE Series HDF AMPLIMITE Series HDP | Slide Lock Bolt | 4-40 | 0.3 in | 7.62 mm | Hardware Included | ||||||||||||||

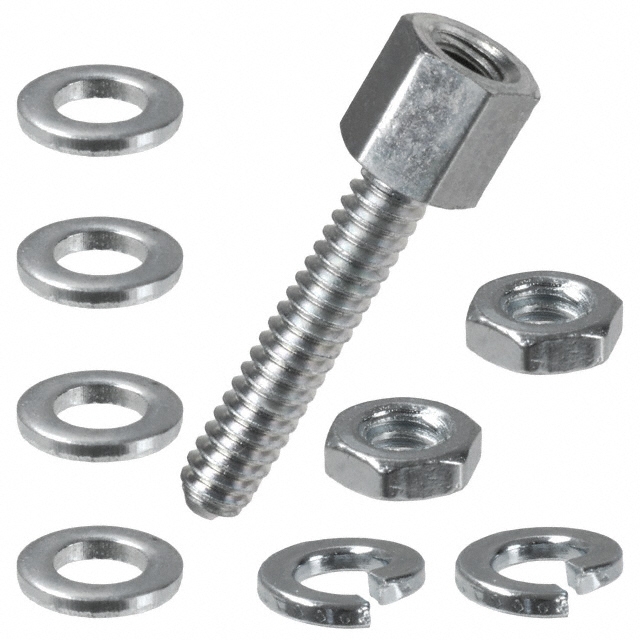

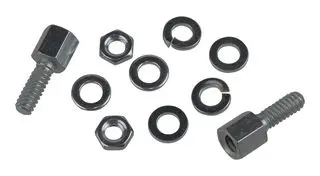

 TE Connectivity AMP Connectors | AMPLIMITE Series HDF HDP | Jackscrew Socket | 4-40 Screw 4-40 Socket | 0.312 in | 7.92 mm | Hardware Included | ||||||||||||||
 TE Connectivity AMP Connectors | AMPLIMITE Series | Slide Latch | 15 | |||||||||||||||||

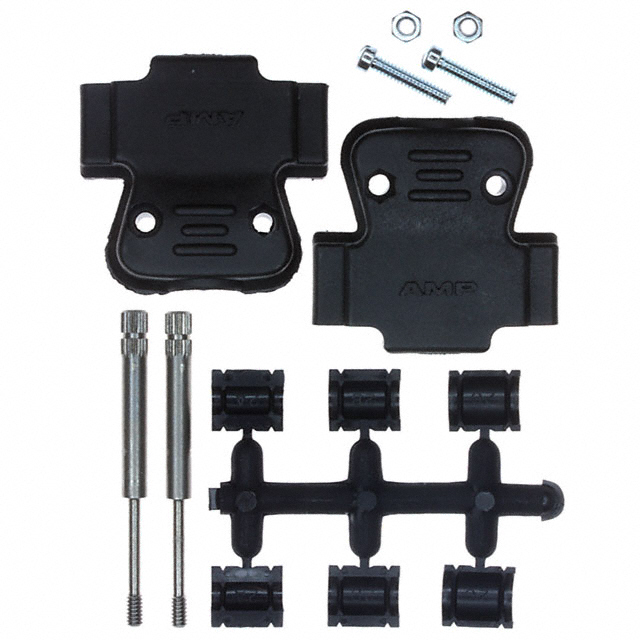

 TE Connectivity AMP Connectors | Two Piece Backshell | Mating Screws 4-40 | 15 | 180 ° | Assembly Hardware Strain Relief | Round | Plastic | Polyamide (PA) Nylon | Unshielded | Black | 15pos HD26pos | A | ||||||||
 TE Connectivity AMP Connectors | AMPLIMITE Series | Ferrule Inner | 9 15 50 | |||||||||||||||||

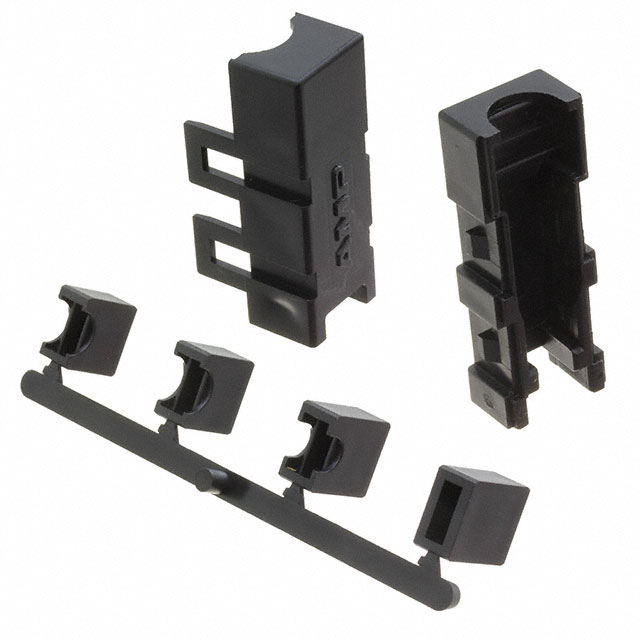

 TE Connectivity AMP Connectors | AMPLIMITE Series HDE-20 | Cap (Cover) | Strain Relief | 9 | ||||||||||||||||
 TE Connectivity AMP Connectors | AMPLIMITE Series HD HDF | Jackscrew Socket | 4-40 Screw 4-40 Socket | 0.56 in | 14.22 mm | Hardware Included | ||||||||||||||
 TE Connectivity AMP Connectors | Two Piece Backshell | Mating Screws 4-40 | 15 | 180 ° | Assembly Hardware Strain Relief | Round | Metal | Metal Zinc Alloy | Shielded | Silver | 15pos HD26pos | A | Nickel over Copper | |||||||

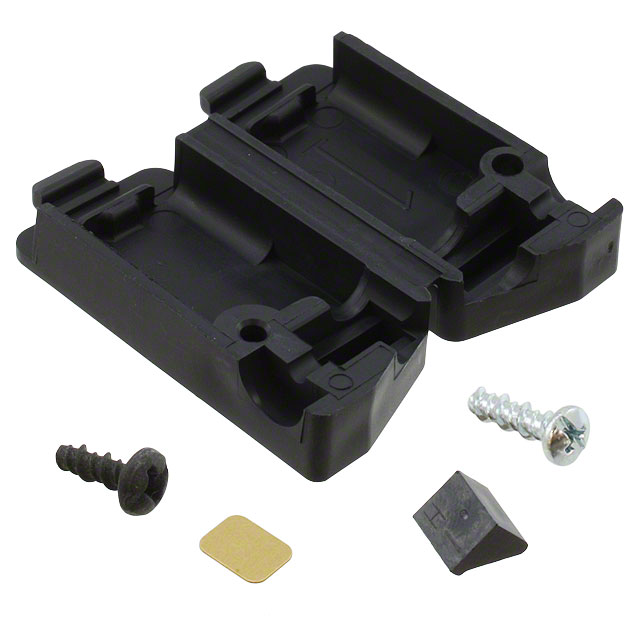

 TE Connectivity AMP Connectors | Hinged Backshell | 9 | Assembly Hardware Strain Relief | Round | Plastic | Unshielded | Black | 9pos HD15pos | E | 180° 45° | ||||||||||
 TE Connectivity AMP Connectors | AMPLIMITE Series HD-20 HDE-20 HDP-20 HDP-22 | Ferrule Outer | Shielded | 9 | 25 |
