TR9WI2500 Series

Catalog

AC/DC DESKTOP ADAPTER 24V 60W

Part	Approval Agency	Region Utilized	Input Type	Output Connector [diameter]	Output Connector	Output Connector [x]	Efficiency	No Load Power Consumption	Cord Length	Cord Length	Form	Applications	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Polarization	Operating Temperature [Min]	Operating Temperature [Max]

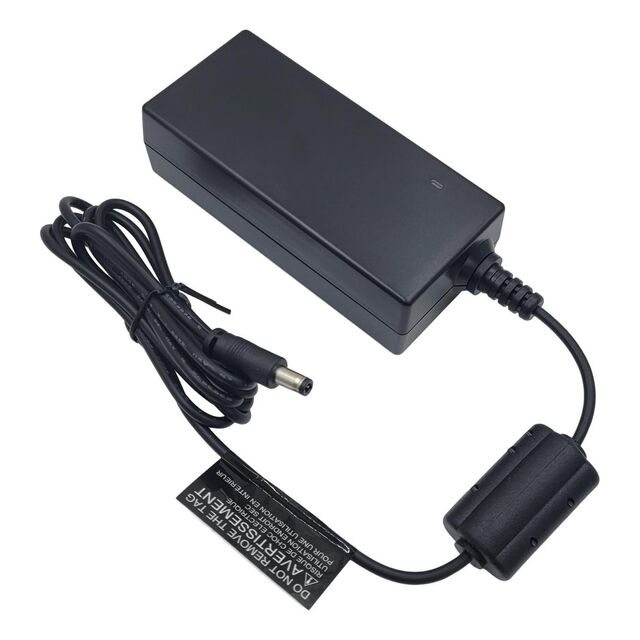

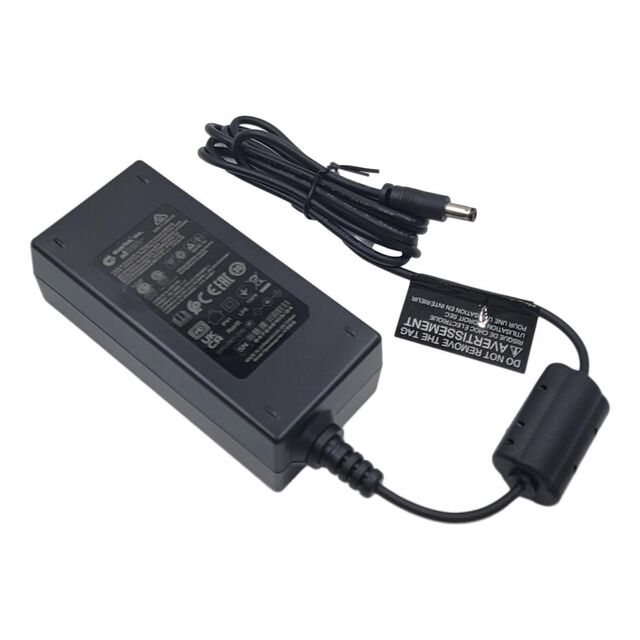

GlobTek, Inc. TR9WI2500LCPCIMR6B	CB CCC CE cETLus EAC PSE RCM S-Mark UkrSEPRO VCCI	International	Cord (Sold Separately)	2.5 mm 5.5 mm	Barrel Plug	11 mm	Level VI	150 mW	1.5 m	59 in	Desktop (Class II)	ITE (Commercial) Medical	24 V	264 VAC	90 VAC	IEC 320-C18	60 W	34.2 mm	1.35 in	53.5 mm	4.63 in	117.5 mm	2.11 in	2.5 A	Positive Center	-20 ░C	40 °C

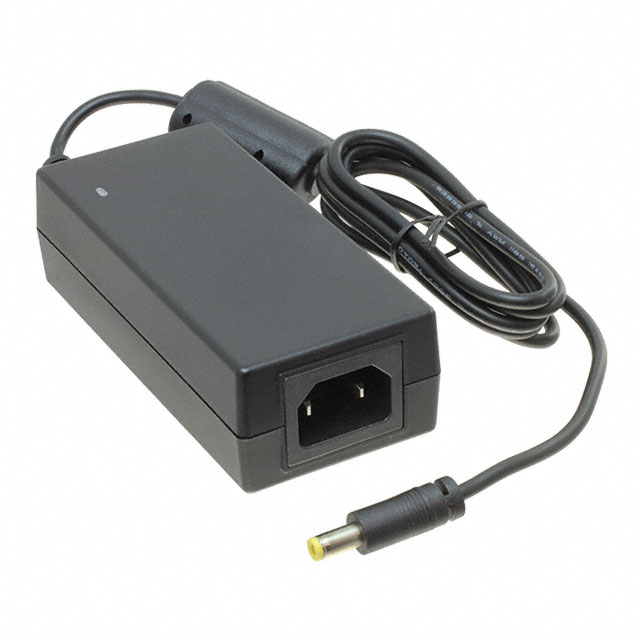

GlobTek, Inc. TR9WI2500CCPCIMR6B	CB CCC CE cETLus EAC PSE RCM S-Mark UkrSEPRO VCCI	International	Cord (Sold Separately)	2.1 mm 5.5 mm	Barrel Plug	11 mm	Level VI	150 mW	1.2 m	47.2 in	Desktop (Class II)	ITE (Commercial) Medical	24 V	264 VAC	90 VAC	IEC 320-C18	60 W	34.2 mm	1.35 in	53.5 mm	4.63 in	117.5 mm	2.11 in	2.5 A	Positive Center	-20 ░C	40 °C

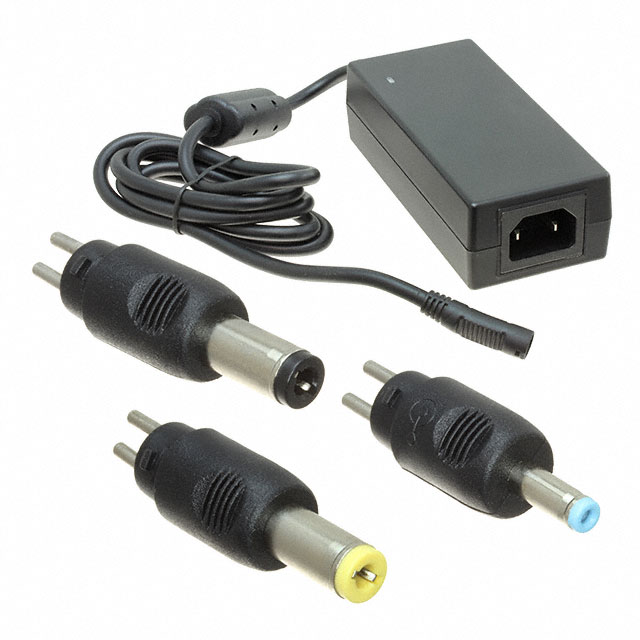

GlobTek, Inc. TR9WI2500T00CIMR6B	CB CCC CE cETLus EAC PSE RCM S-Mark UkrSEPRO VCCI	International	Cord (Sold Separately)		Barrel Plug Kit (1.3mm x 3.5mm		Level VI	150 mW	1.2 m	47.2 in	Desktop (Class II)	ITE (Commercial) Medical	24 V	264 VAC	90 VAC	IEC 320-C18	60 W	34.2 mm	1.35 in	53.5 mm	4.63 in	117.5 mm	2.11 in	2.5 A		-20 ░C	40 °C
