ABL-254-36 Series
Manufacturer: Assmann WSW Components
Beta
⌘K

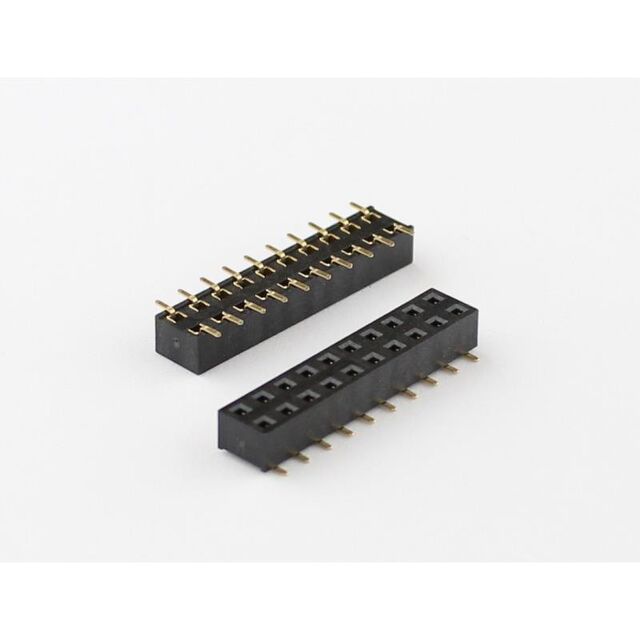

PIN- & FEMALE HEADER FEMALE SMT
| Part | Contact Shape | Insulation Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Connector Type | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Fastening Type | Termination | Number of Positions | Contact Finish - Mating | Insulation Height | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions Loaded | Material Flammability Rating | Contact Type | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Square | Nylon 6T Polyamide (PA6T) | Brass | -55 C | 105 ░C | Black | Receptacle | 3 A | 0.1 " | 2.54 mm | Push-Pull | Solder | 36 | Gold | 0.15 in 3.81 mm | Surface Mount | 0.1 in | 2.54 mm | All | UL94 V-0 | Female Socket | 2 |
