PPTC122 Series

Catalog

CONN HDR 24POS 0.1 TIN PCB R/A

Part	Contact Material	Insulation Material	Contact Shape	Termination	Number of Positions Loaded	Mounting Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Fastening Type	Current Rating (Amps)	Voltage Rating	Connector Type	Contact Type	Insulation Height [z]	Insulation Height [z]	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height

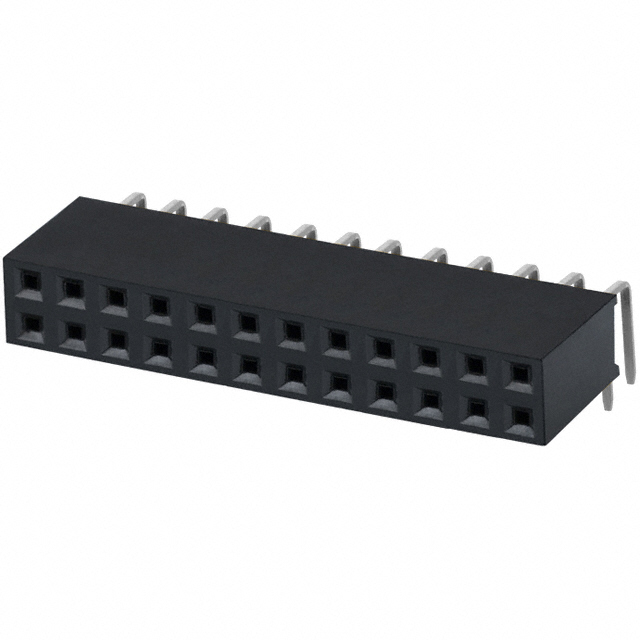

Sullins Connector Solutions PPTC122LJBN	Phosphor Bronze	Polyester	Square	Solder	All	Right Angle Through Hole	UL94 V-0	0.1 "	2.54 mm	2	Tin	-40 C	105 ░C	0.124 in	3.15 mm	0.1 in	2.54 mm	Black	Push-Pull	3 A	250 V	Header	Female Socket	0.2 in	5.08 mm	24

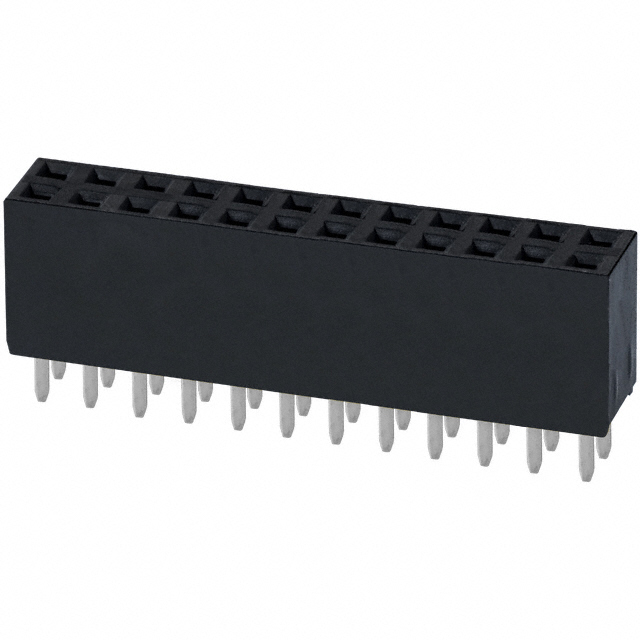

Sullins Connector Solutions PPTC122LFBN	Phosphor Bronze	Polyester	Square	Solder	All	Through Hole	UL94 V-0	0.1 "	2.54 mm	2	Tin	-40 C	105 ░C			0.1 in	2.54 mm	Black	Push-Pull	3 A	250 V	Header	Female Socket			24	0.126 "	3.2 mm	0.335 "	8.51 mm
Sullins Connector Solutions PPTC122LJBN-RC	Phosphor Bronze	Polyester	Square	Solder	All	Right Angle Through Hole	UL94 V-0	0.1 "	2.54 mm	2	Tin	-40 C	105 ░C	0.124 in	3.15 mm	0.1 in	2.54 mm	Black	Push-Pull	3 A	250 V	Header	Female Socket	0.2 in	5.08 mm	24
