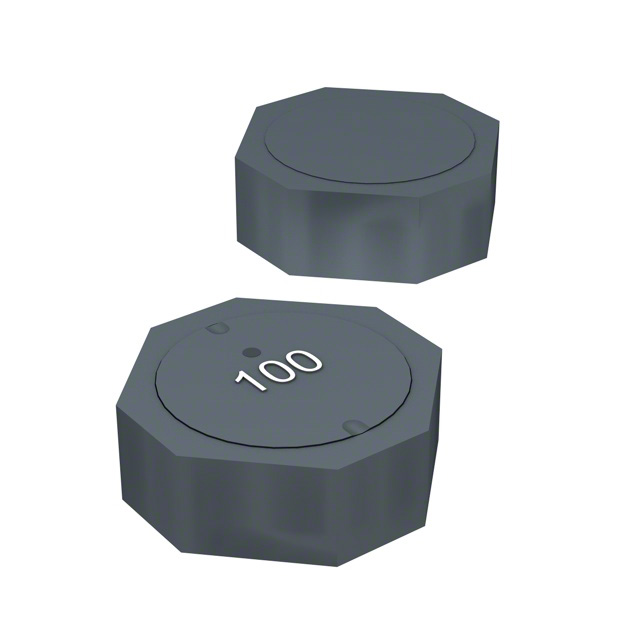

SRU8028A Series

Catalog

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRU8028A SERIES, 3.3 H, 30%, SHIELDED, 0.023 OHM, 3.6 A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)	Current Rating (Amps)	Package / Case	Material - Core	Inductance	Q @ Freq	Shielding	Inductance Frequency - Test	Type	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)
Bourns Inc. SRU8028A-3R3Y	125 °C	-40 C	3.5 A	3.6 A	Nonstandard	Ferrite	3.3 µH	7.96 MHz 12	Shielded	100 kHz	Drum Core Wirewound	30 %	0.122 in	3.1 mm	AEC-Q200	23 mOhm	60 MHz	Surface Mount	8 mm	0.315 in	8 mm	0.315 in
Bourns Inc. SRU8028A-101Y	125 °C	-40 C	700 mA	750 mA	Nonstandard	Ferrite	100 µH		Shielded	100 kHz	Drum Core Wirewound	30 %	0.122 in	3.1 mm	AEC-Q200	500 mOhm	8 MHz	Surface Mount	8 mm	0.315 in	8 mm	0.315 in	20	796 kHz
Bourns Inc. SRU8028A-150Y	125 °C	-40 C	1.7 A	2 A	Nonstandard	Ferrite	15 µH	2.52 MHz 20	Shielded	100 kHz	Drum Core Wirewound	30 %	0.122 in	3.1 mm	AEC-Q200	85 mOhm	25 MHz	Surface Mount	8 mm	0.315 in	8 mm	0.315 in
Bourns Inc. SRU8028A-470Y	125 °C	-40 C	1 A	1.2 A	Nonstandard	Ferrite	47 µH	2.52 MHz 14	Shielded	100 kHz	Drum Core Wirewound	30 %	0.122 in	3.1 mm	AEC-Q200	230 mOhm	12 MHz	Surface Mount	8 mm	0.315 in	8 mm	0.315 in
Bourns Inc. SRU8028A-220Y	125 °C	-40 C		1.6 A	Nonstandard	Ferrite	22 µH	22	Shielded	100 kHz	Drum Core Wirewound	30 %	0.122 in	3.1 mm	AEC-Q200		20 MHz	Surface Mount	8 mm	0.315 in	8 mm	0.315 in			130 mOhm
