G11011/4 Series

Catalog

GRP11011/4 BLACK 250 FT ROHS COMPLIANT: YES

Part	Color	Operating Temperature [Max]	Operating Temperature [Min]	Type Attributes	Type	Environment Protection	Abrasion Protection	Wall Thickness	Wall Thickness	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Length	Length	Features	Material

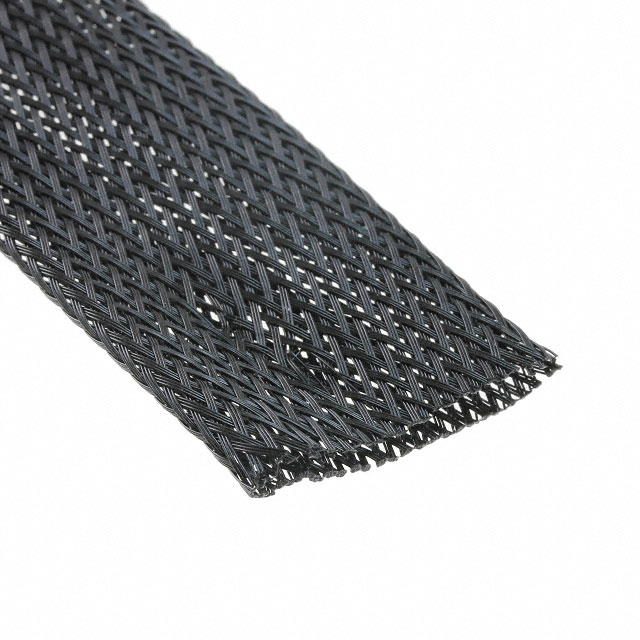

ALPHA WIRE G11011/4 BK003	Black	125 °C	-75 °C	Expandable	Sleeve	Corrosion Resistant	Abrasion and Cut Resistant	0.64 mm	0.025 in	44.45 mm	1.75 in	0.75 in	19.05 mm	76.2 m	250 ft	Fungus Resistant	Polyester Halogen Free
ALPHA WIRE G11011/4 BK007	Black	125 °C	-75 °C	Expandable	Sleeve	Corrosion Resistant	Abrasion and Cut Resistant	0.64 mm	0.025 in	44.45 mm	1.75 in	0.75 in	19.05 mm	15.24 m	50 ft	Fungus Resistant	Polyester Halogen Free

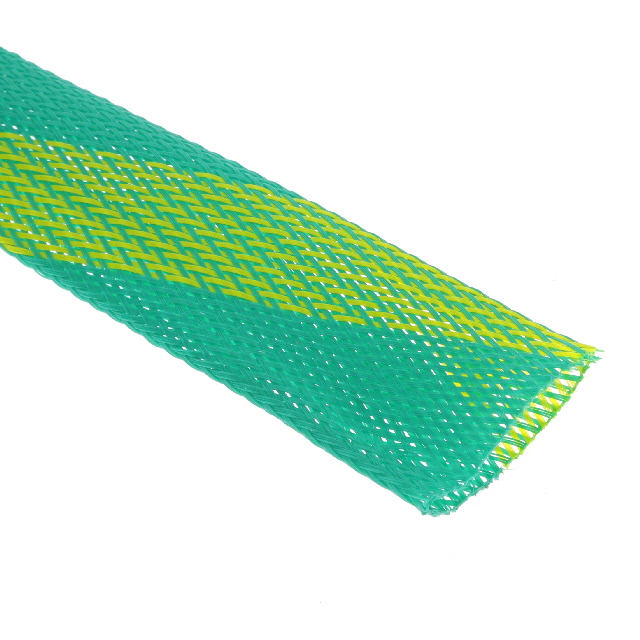

ALPHA WIRE G11011/4 GY007	Green Yellow	125 °C	-75 °C	Expandable	Sleeve	Corrosion Resistant	Abrasion and Cut Resistant	0.64 mm	0.025 in	44.45 mm	1.75 in	0.75 in	19.05 mm	15.24 m	50 ft	Fungus Resistant	Polyester Halogen Free
