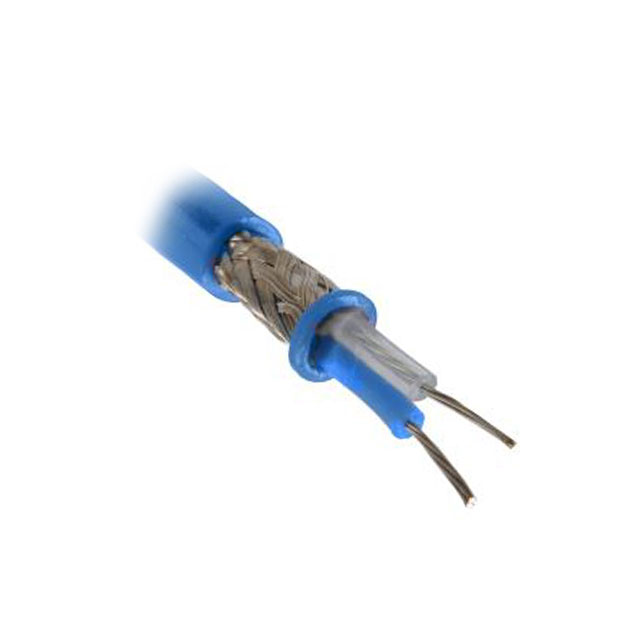

TWC Series

Manufacturer: Cinch Connectivity Solutions Trompeter

Catalog

CABLE TWINAXIAL PLENUM 500'

Part	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Coverage	Operating Temperature	Length [x]	Length [x]	Cable Type	Jacket Color	Impedance	Shield Type	Conductor Material	VoP, Velocity of Propagation	Shield Material	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Dielectric Material	Conductor Strand	Features
Cinch Connectivity Solutions Trompeter TWCP-78-2	1.83 mm	0.072 in	95 %	125 °C	152.4 m	500 ft	Twinaxial - Plenum	Blue	78 Ohms	Braid
Cinch Connectivity Solutions Trompeter TWC-124-1A	2.16 mm	0.085 in	93 %		152.4 m	500 ft	Twinaxial	Blue	124 Ohms	Braid	Copper Tinned	66	Copper Tinned	80 °C	-40 C	38 AWG	7 Strands	Poly-Vinyl Chloride (PVC)	0.15 in	3.81 mm

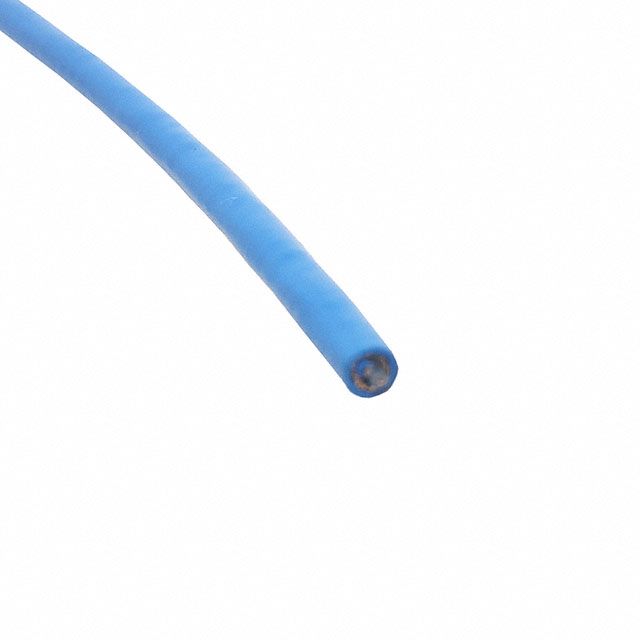

Cinch Connectivity Solutions Trompeter TWC-78-1	2.16 mm	0.085 in	93 %		152.4 m	500 ft	Twinaxial	Blue	78 Ohms	Braid	Copper Tinned	66	Copper Tinned	80 °C	-40 C	33 AWG	7 Strands	Poly-Vinyl Chloride (PVC)	0.15 in	3.81 mm	Polytetrafluoroethylene (PTFE)

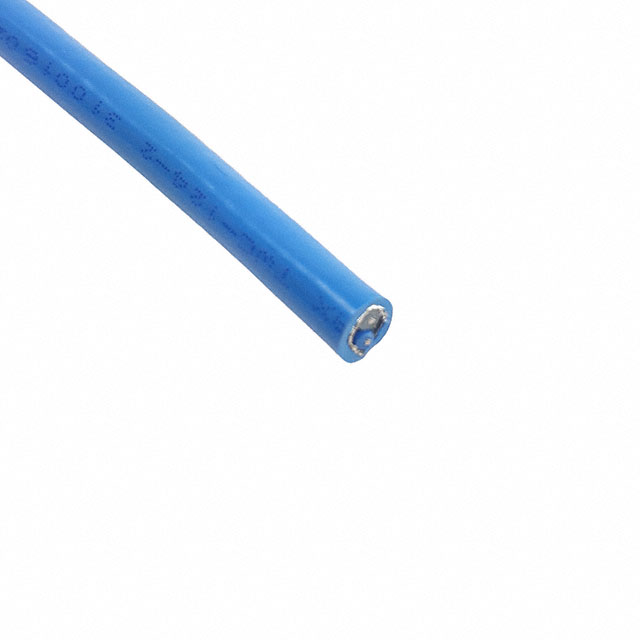

Cinch Connectivity Solutions Trompeter TWC-124-2	4.11 mm	0.162 in	93 %		152.4 m	500 ft	Twinaxial	Blue	124 Ohms	Braid	Copper Tinned	66	Copper Tinned	80 °C	-40 C	33 AWG	7 Strands	Poly-Vinyl Chloride (PVC)	0.245 "	6.22 mm
Cinch Connectivity Solutions Trompeter TWC-78-2	3.91 mm	0.154 in	93 %		152.4 m	500 ft	Twinaxial	Blue	78 Ohms	Braid	Copper Tinned	66	Copper Tinned	80 °C	-40 C			Poly-Vinyl Chloride (PVC)			Polytetrafluoroethylene (PTFE)	7 Strands 28 AWG
Cinch Connectivity Solutions Trompeter TWCH-78-2	1.93 mm	0.076 in	93 %		152.4 m	500 ft	Twinaxial	Blue	78 Ohms	Braid				80 °C	-30 ░C			Polyolefin (PO)					Flame Retardant
