R75UR Series

Manufacturer: KEMET

Catalog

CAP FILM 0.15UF 2000V PP 5%( 32 X 24 X 15MM) RADIAL PLASTIC RECTANGULAR CAN 27.5MM 0.0074 OHM 105°C BAG

Part	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage Rating - DC	Voltage Rating - DC	Tolerance	Capacitance	ESR (Equivalent Series Resistance)	Dielectric Material	Lead Spacing	Lead Spacing	Termination	Voltage Rating - AC	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Applications	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R75UR315050L4J	Radial	-55 C	105 ░C	0.594 in	15.1 mm	2 kV	2 kVDC	5 %	0.15 ÁF	7.4 mOhms	Polypropylene (PP) Metallized	27.5 mm	1.083 in	PC Pins	700 V	Through Hole	32 mm	1.26 in	24 mm	0.945 "	DV/DT High Frequency High Pulse Switching

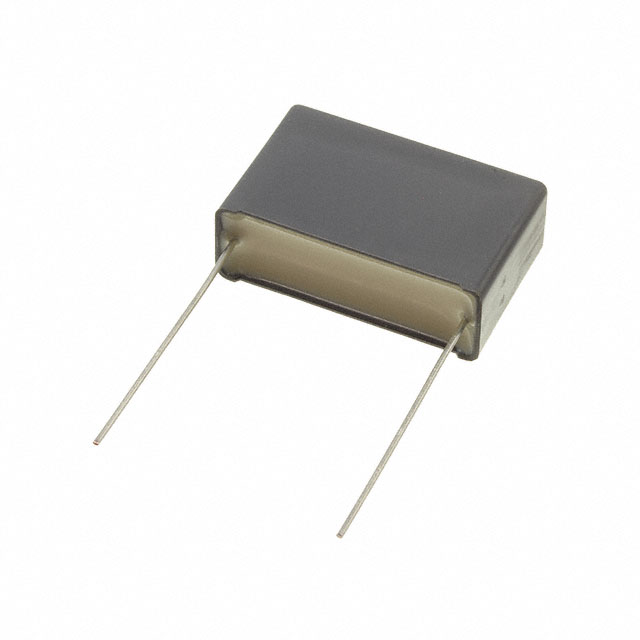

KEMET R75UR31004030J	Radial	-55 C	105 ░C			2 kV	2 kVDC	5 %	100000 pF		Polypropylene (PP) Metallized	27.5 mm	1.083 in	PC Pins	700 V	Through Hole	32 mm	1.26 in		0.433 in	DV/DT High Frequency High Pulse Switching	11 mm
KEMET R75UR34704040J	Radial	-55 C	105 ░C			2 kV	2 kVDC	5 %	0.47 µF		Polypropylene (PP) Metallized	27.5 mm	1.083 in	PC Pins	700 V	Through Hole	32 mm	1.26 in	22 mm	0.866 in	DV/DT High Frequency High Pulse Switching		37.1 mm	1.461 in
