5697 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

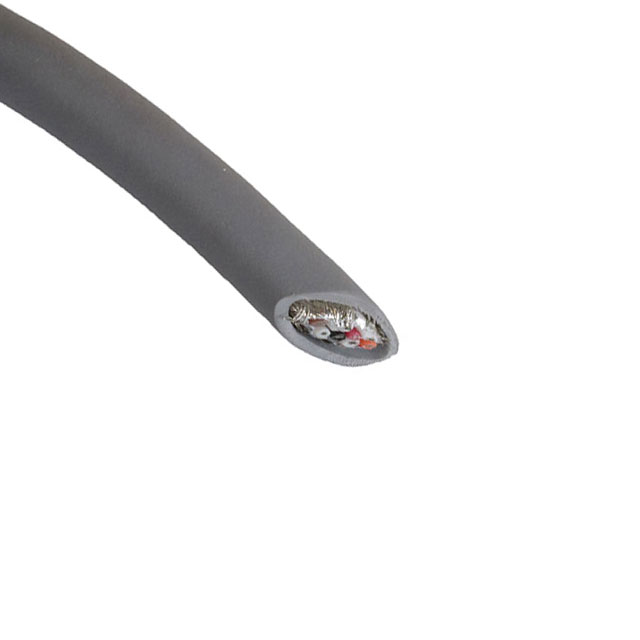

MULTI-PAIR 8COND 26AWG SLATE
| Part | Shield Material | Shield Coverage | Length | Length | Number of Conductors | Voltage | Features | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Jacket Color | Ratings | Cable Type | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Conductor Insulation | Jacket (Insulation) Material | Conductor Strand [x] | Conductor Strand [x] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 70 % 100 % | 152.4 m | 500 ft | 8 | 300 VDC | Biological Compatibility Drain Wire Rip Cord | Communication Control | 0.251 in | 6.38 mm | 0.813 mm | 0.032 in | Copper Tinned | Slate | ISO 10993 UL Style 2464 | Multi-Pair | Braid Foil | -35 °C | 105 ░C | 26 AWG | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 34 AWG | 7 | ||
ALPHA WIRE | Aluminum Copper Tinned | 70 % 100 % | 8 | 300 VDC | Biological Compatibility Drain Wire Rip Cord | Communication Control | 0.251 in | 6.38 mm | 0.813 mm | 0.032 in | Copper Tinned | Slate | ISO 10993 UL Style 2464 | Multi-Pair | Braid Foil | -35 °C | 105 ░C | 26 AWG | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 34 AWG | 7 | ||||
ALPHA WIRE | Aluminum Copper Tinned | 70 % 100 % | 8 | 300 VDC | Biological Compatibility Drain Wire Rip Cord | Communication Control | 0.251 in | 6.38 mm | 0.813 mm | 0.032 in | Copper Tinned | Slate | ISO 10993 UL Style 2464 | Multi-Pair | Braid Foil | -35 °C | 105 ░C | 26 AWG | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 34 AWG | 7 | 100 ft | 30.5 m |
