Single Pole Power Rocker Switch
Single Pole Power Rocker Switch
Single Pole Power Rocker Switch
| Part | Current Rating (Amps) | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Features | Approval Agency | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Marking | Voltage Rating - AC | Color - Actuator/Cap | Circuit | Actuator Type | Mounting Type | Termination Style | Electrical Life | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 16 A | 14 mm | 28.8 mm | Positive Detent | cULus | On-Off | -20 C | 80 C | O I | 125 V | White | SPST | Concave (Standard V) | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | 10000 Cycles | ||
Littelfuse/Commercial Vehicle Products | 16 A | 14 mm | 28.8 mm | Positive Detent | cULus | On-Off-On | -20 C | 80 C | No Marking | 125 V | Black | SPDT | Concave (Standard V) | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | 10000 Cycles | ||
 Littelfuse/Commercial Vehicle Products | 16 A | 14 mm | 28.8 mm | Positive Detent | cULus | On-Off | -20 C | 80 C | No Marking | 125 V | Green | SPST | Concave (Standard V) - Illuminated | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | 10000 Cycles | 125 VAC | Green Neon |

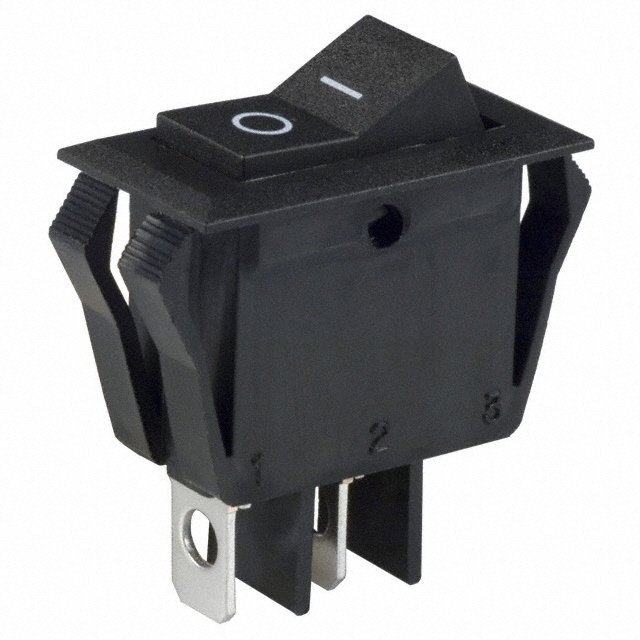

 Littelfuse/Commercial Vehicle Products | 16 A | 14 mm | 28.8 mm | Positive Detent | cULus | On-Off | -20 C | 80 C | O I | 125 V | Black | SPST | Concave (Standard V) | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | 10000 Cycles | ||

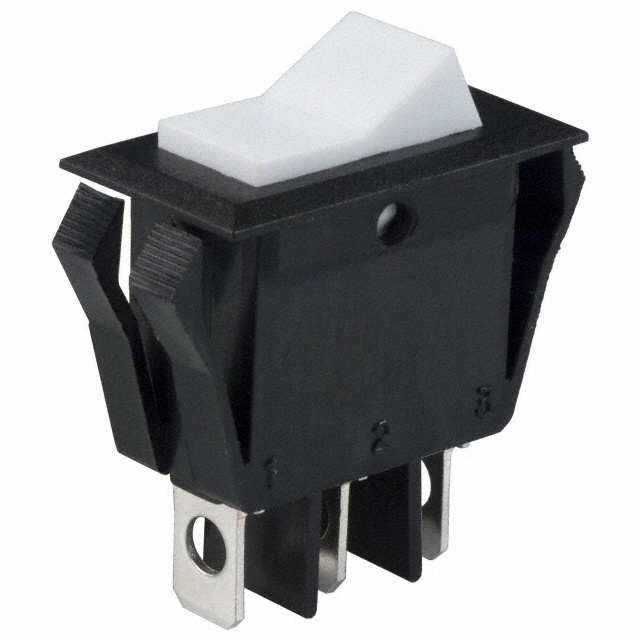

 Littelfuse/Commercial Vehicle Products | 16 A | 14 mm | 28.8 mm | Positive Detent | cULus | On-On | -20 C | 80 C | No Marking | 125 V | White | SPDT | Concave (Standard V) | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | 10000 Cycles | ||
Littelfuse/Commercial Vehicle Products | 16 A | 14 mm | 28.8 mm | Positive Detent | cULus | On-Off | -20 C | 80 C | No Marking | 125 V | Black | SPST | Concave (Standard V) | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | 10000 Cycles | ||
Littelfuse/Commercial Vehicle Products | 16 A | 14 mm | 28.8 mm | Positive Detent | cULus | On-Off | -20 C | 80 C | No Marking | 125 V | White | SPST | Concave (Standard V) | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | 10000 Cycles |
