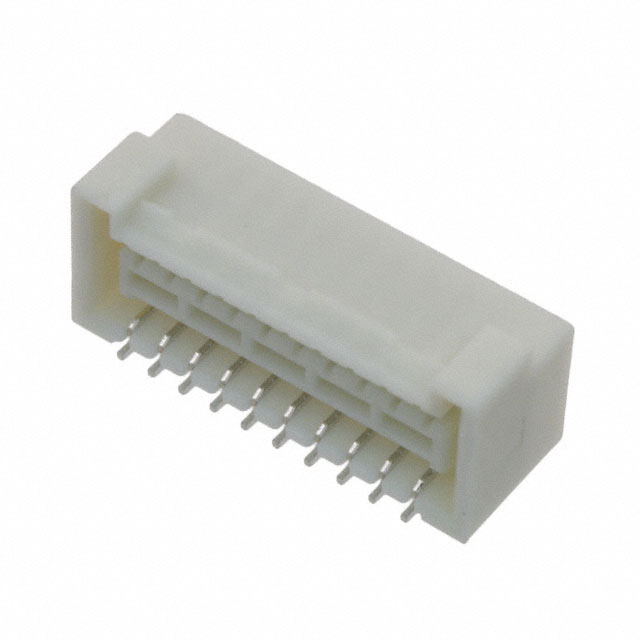

SM20B-ZP Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 20POS 1.5MM
| Part | Style | Insulation Color | Mounting Type | Insulation Material | Number of Positions | Voltage Rating | Contact Material | Material Flammability Rating | Shrouding | Contact Shape | Current Rating (Amps) | Contact Type | Insulation Height | Insulation Height | Connector Type | Termination | Number of Rows [custom] | Fastening Type | Contact Finish - Post | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Board to Cable/Wire | Natural | Right Angle Surface Mount | Nylon Polyamide (PA) | 20 | 100 V | Copper Alloy | UL94 V-0 | Shrouded - 4 Wall | Rectangular | 2 A | Outer Shroud Contact | 7.85 mm | 0.309 in | Header | Solder | 2 | Locking Ramp | Tin | All | 85 °C | -25 °C |
