AM4457 Series
Manufacturer: Kingbright
Beta
⌘K

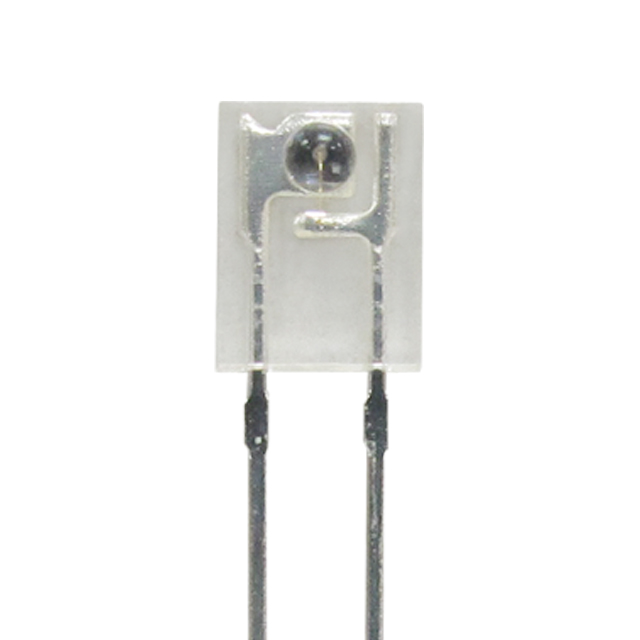

SENSOR PHOTO 940NM VERTICAL 2SIP
| Part | Mounting Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Wavelength | Voltage - Collector Emitter Breakdown (Max) [Max] | Orientation | Power - Max [Max] | Current - Collector (Ic) (Max) [Max] | Current - Dark (Id) (Max) [Max] | Viewing Angle | Type | Orientation [custom] | Radiant Intensity (Ie) Min @ If | Current - DC Forward (If) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | Through Hole | 2-SIP | 85 °C | -40 C | 940 nm | 30 V | Vertical | 100 mW | 2 mA | 100 nA | 70 ° | ||||
 Kingbright | Right Angle Through Hole | Radial | 85 C | -40 ¯C | 940 nm | 70 ° | Infrared (IR) | Side View | 3 mW/sr | 50 mA |
