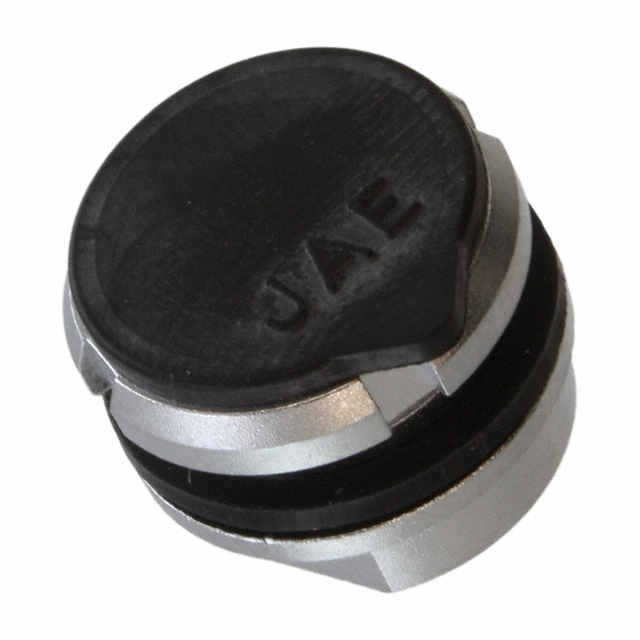

JB5CS08F Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN RCPT FMALE 8POS SOLDER CUP
| Part | Contact Material | Applications | Shielding | Shell Material | Features | Insert Material | Number of Positions | Voltage Rating | Contact Finish - Mating | Shell Size - Insert | Color | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Shell Finish | Mounting Feature | Primary Material | Orientation | Ingress Protection | Mounting Type | Current Rating (Amps) | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Copper Alloy | Medical Telecommunications Test & Measurement | Shielded | Copper Alloy | Dust Cap | Synthetic Resin | 8 | 200 VAC | Gold | S | Silver | -55 C | 85 °C | Receptacle Female Sockets | Chromium | Bulkhead - Front Side Nut | Metal | Keyed | IP68 - Dust Tight Waterproof | Panel Mount | 2 A | Push-Pull | 0.76 Ám | 30 Áin |
JAE Electronics | Copper Alloy | Medical Telecommunications Test & Measurement | Shielded | Copper Alloy | Dust Cap | Synthetic Resin | 8 | 200 VAC | Gold | S | Silver | -55 C | 85 °C | Receptacle Female Sockets | Chromium | Bulkhead - Front Side Nut | Metal | Keyed | IP68 - Dust Tight Waterproof | Panel Mount | 2 A | Push-Pull | 0.76 Ám | 30 Áin |
