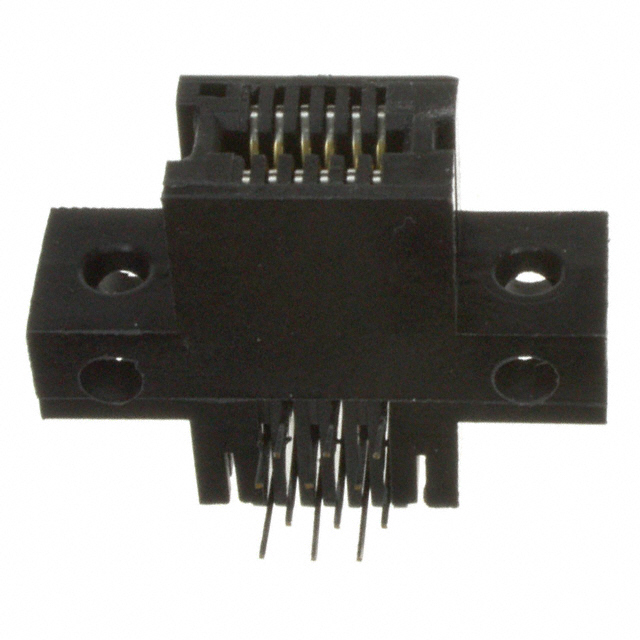

RZB06 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FMALE 12POS 0.050
| Part | Material - Insulation | Contact Finish | Number of Rows [custom] | Mounting Type | Contact Material | Gender | Pitch | Pitch | Read Out | Contact Type | Card Type | Color | Number of Positions/Bay/Row | Contact Finish Thickness | Contact Finish Thickness | Card Thickness | Card Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Termination | Features | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Gold | 2 | Through Hole | Phosphor Bronze | Female | 0.05 in | 1.27 mm | Dual | Hairpin Bellows | Non Specified - Dual Edge | Black | 6 | 0.25 Ám | 10 Áin | 1.57 mm | 0.062 in | -65 ░C | 125 °C | 12 | Solder Staggered | ||||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Gold | 2 | Surface Mount | Phosphor Bronze | Female | 0.05 in | 1.27 mm | Dual | Hairpin Bellows | Non Specified - Dual Edge | Black | 6 | 0.25 Ám | 10 Áin | 1.57 mm | 0.062 in | -65 ░C | 125 °C | 12 | Solder | Board Lock | |||
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Gold | 2 | Right Angle Through Hole | Phosphor Bronze | Female | 0.05 in | 1.27 mm | Dual | Hairpin Bellows | Non Specified - Dual Edge | Black | 6 | 0.25 Ám | 10 Áin | 1.57 mm | 0.062 in | -65 ░C | 125 °C | 12 | Solder Staggered | 0.125 " | Side Mount Opening Unthreaded | 3.18 mm |
