0334-0 Series

Catalog

CONN RECEPT PIN .032-.046" .206"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Length - Overall [x]	Length - Overall [x]	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Type	Socket Depth	Socket Depth
Mill-Max Manufacturing Corp. 0334-0-15-01-34-14-10-0	-55 C	125 °C	1.63 mm	0.064 in	0.25 Ám	10 Áin	Hex Press-Fit	2.31 mm	0.091 "	Gold	5.23 mm	0.206 in	Beryllium Copper	0.079 in	2.01 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	No Tail	0.206 "	5.23 mm

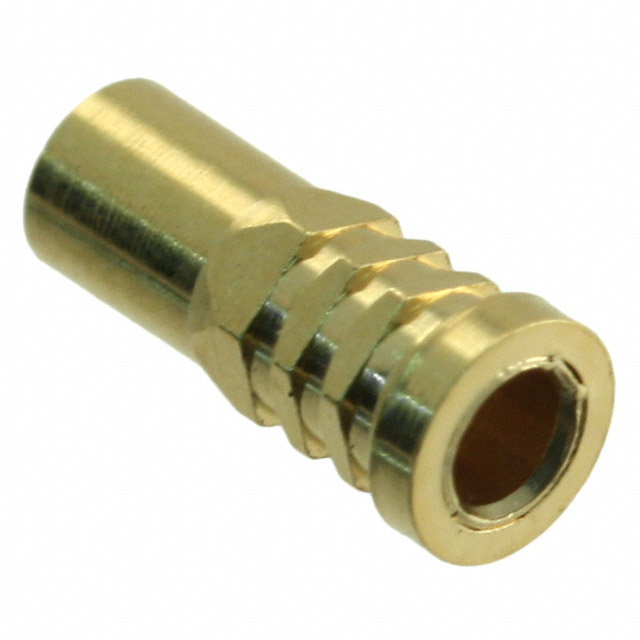

Mill-Max Manufacturing Corp. 0334-0-15-15-34-27-10-0	-55 C	125 °C	1.63 mm	0.064 in	0.76 Ám	30 Áin	Hex Press-Fit	2.31 mm	0.091 "	Gold	5.23 mm	0.206 in	Beryllium Copper	0.079 in	2.01 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	No Tail	0.206 "	5.23 mm

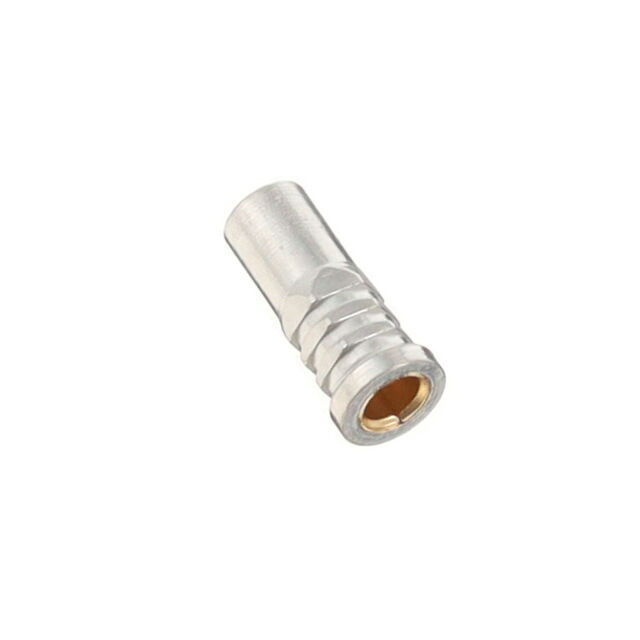

Mill-Max Manufacturing Corp. 0334-0-15-80-34-27-10-0	-55 C	125 °C	1.63 mm	0.064 in	0.76 Ám	30 Áin	Hex Press-Fit	2.31 mm	0.091 "	Gold	5.23 mm	0.206 in	Beryllium Copper	0.079 in	2.01 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	No Tail	0.206 "	5.23 mm
