ACMD-7612 Series

Catalog

RF DUPLEXER 1.95GHZ/2.14GHZ 3CSP

Part	Mounting Type	Package / Case	Frequency Bands (Low / High) [Min] [custom]	Frequency Bands (Low / High) [Min] [custom]	Frequency Bands (Low / High) [Max] [custom]	Frequency Bands (Low / High) [Max] [custom]	Type	High Band Attenuation (min / max dB) [Min]	Low Band Attenuation (min / max dB) [Min]	Return Loss (Low Band / High Band)
Broadcom Limited ACMD-7612-BLKG	Surface Mount	3-CSP	1.92 GHz	2.11 GHz	1.98 GHz	2.17 GHz	Duplexer	41 dB	53 dB	16 dB 20 dB

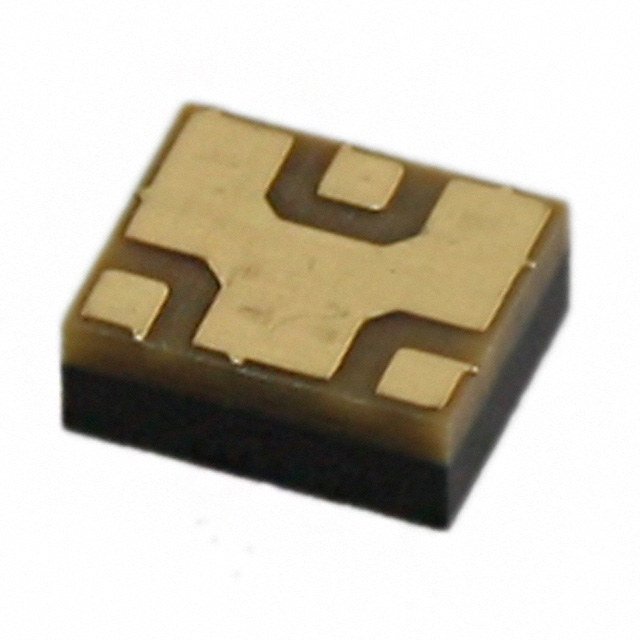

Broadcom Limited ACMD-7612-TR1	Surface Mount	3-CSP	1.92 GHz	2.11 GHz	1.98 GHz	2.17 GHz	Duplexer	41 dB	53 dB	16 dB 20 dB
Broadcom Limited ACMD-7612-TR1G	Surface Mount	3-CSP	1.92 GHz	2.11 GHz	1.98 GHz	2.17 GHz	Duplexer	41 dB	53 dB	16 dB 20 dB
