XM2C Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
CONN D-SUB PLUG 15POS R/A SLDR
| Part | Color | Voltage Rating | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Connector Type | Contact Type | Mounting Type | Termination | Shell Material, Finish | Connector Style | Shell Size, Connector Layout | Features | Number of Rows [custom] | Contact Finish | Contact Finish Thickness | Number of Positions | Material Flammability Rating | Current Rating (Amps) | Flange Feature | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

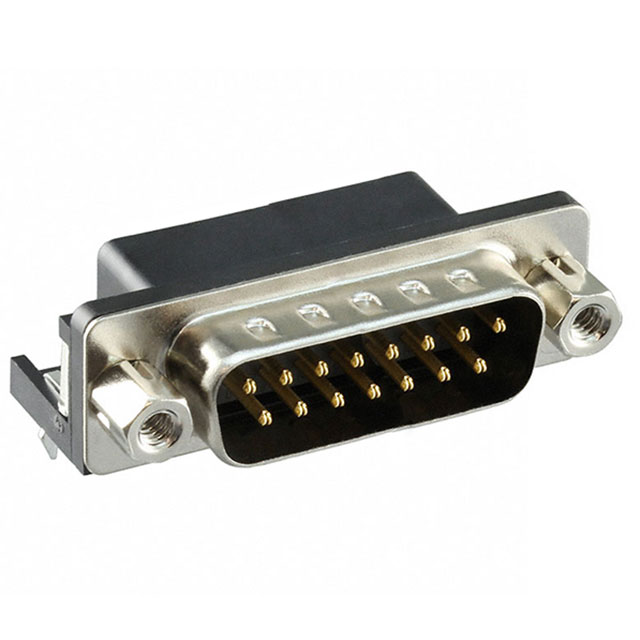

 Omron Electronics Inc-EMC Div | Black | 300 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 105 ░C | -25 °C | Brass | Plug Male Pins | Signal | Right Angle Through Hole | Solder | Nickel Plated Steel | D-Sub | 2 | Board Lock Grounding Indents Shielded | 2 | Gold | Flash | 15 | UL94 V-0 | 3 A | |||

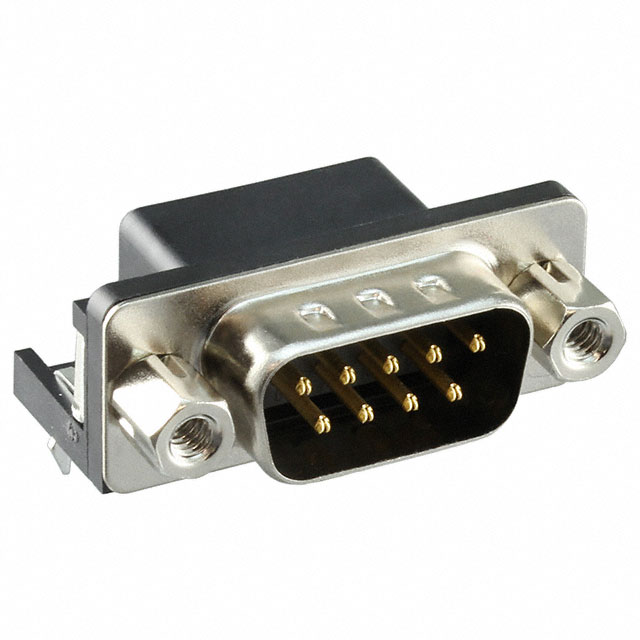

 Omron Electronics Inc-EMC Div | Black | 300 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 105 ░C | -25 °C | Brass | Plug Male Pins | Signal | Right Angle Through Hole | Solder | Nickel Plated Steel | D-Sub | Board Lock Grounding Indents Shielded | 2 | Gold | Flash | 9 | UL94 V-0 | 3 A | 4-40 Mating Side Female Screwlock | 1 | DE E | |

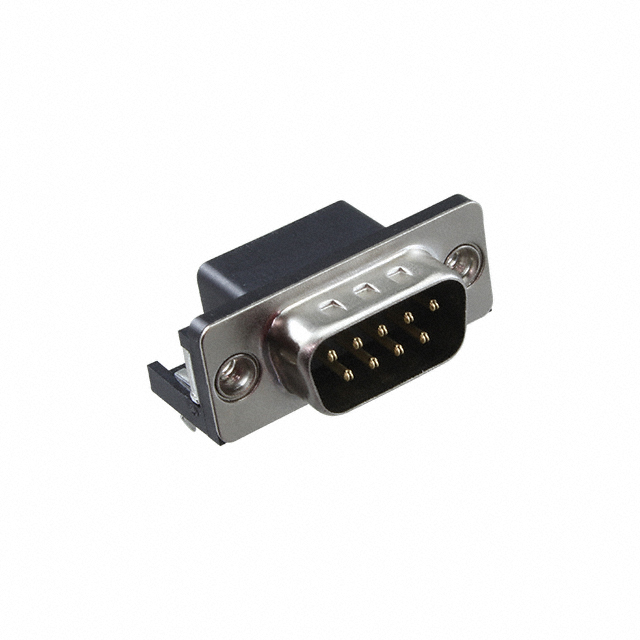

 Omron Electronics Inc-EMC Div | Black | 300 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 105 ░C | -25 °C | Brass | Plug Male Pins | Signal | Right Angle Through Hole | Solder | Nickel Plated Steel | D-Sub | Grounding Indents Shielded | 2 | Gold | Flash | 9 | UL94 V-0 | 3 A | Housing/Shell (Unthreaded) | 1 | DE E | |

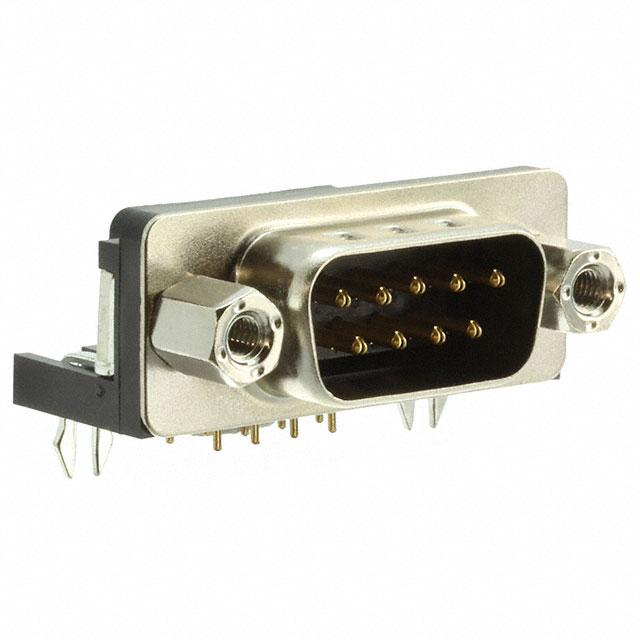

 Omron Electronics Inc-EMC Div | Black | 300 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 105 ░C | -25 °C | Brass | Plug Male Pins | Signal | Right Angle Through Hole | Solder | Nickel Plated Steel | D-Sub | Board Lock Grounding Indents Shielded | 2 | Gold | Flash | 9 | UL94 V-0 | 3 A | 1 | DE E | ||
 Omron Electronics Inc-EMC Div |
