A-DF 25 Series
Manufacturer: Assmann WSW Components
Beta
⌘K
CONN D-SUB RCPT 25POS SLDR CUP
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Voltage Rating | Dielectric Material | Material Flammability Rating | Contact Type | Connector Type | Connector Style | Contact Finish Thickness | Number of Rows [custom] | Contact Finish | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Flange Feature | Mounting Type | Shell Material, Finish | Number of Positions | Current Rating (Amps) | Termination | Features | Flange Feature | Backset Spacing | Backset Spacing | Wire Gauge [Max] | Wire Gauge [Min] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | White | -55 C | 105 ░C | Brass | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | Signal | Receptacle Female Sockets | D-Sub | Flash | 2 | Gold | B DB | 3 | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | Steel | 25 | 3 A | ||||||||

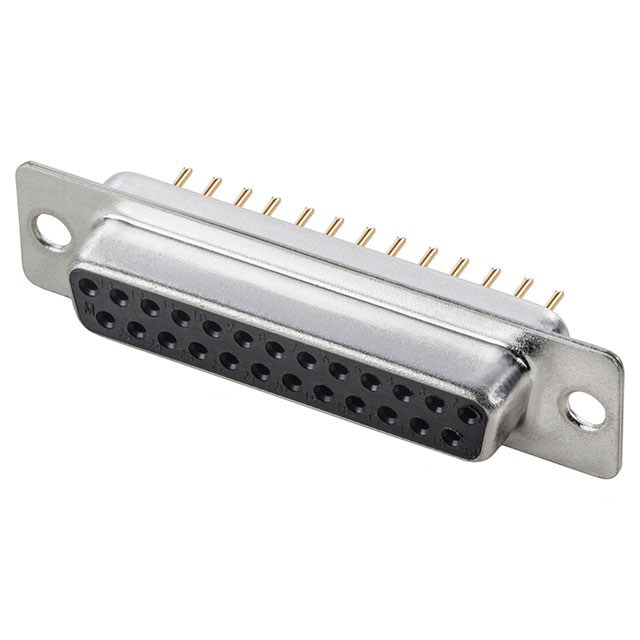

 Assmann WSW Components | Black | -55 C | 105 ░C | Copper Alloy | 250 VAC | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | Signal | Receptacle Female Sockets | D-Sub | Flash | 2 | Gold | B DB | 3 | Housing/Shell (Unthreaded) | Through Hole | 25 | 3 A | Solder | ||||||||

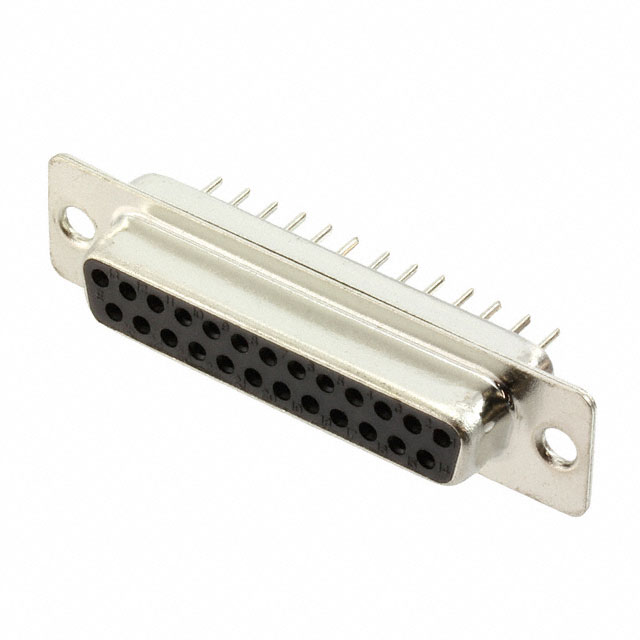

 Assmann WSW Components | Gray | -20 ░C | 105 ░C | Copper Alloy | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | Signal | Receptacle Female Sockets | D-Sub | Flash | 2 | Gold | B DB | 3 | Housing/Shell (Unthreaded) | Through Hole | 25 | 3 A | Solder | ||||||||
 Assmann WSW Components | Black | -20 ░C | 85 °C | Copper Alloy | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | Signal | Receptacle Female Sockets | D-Sub | Flash | 2 | Gold | B DB | 3 | Housing/Shell (Unthreaded) | Through Hole | Steel | 25 | 3 A | Solder | Filter | ||||||

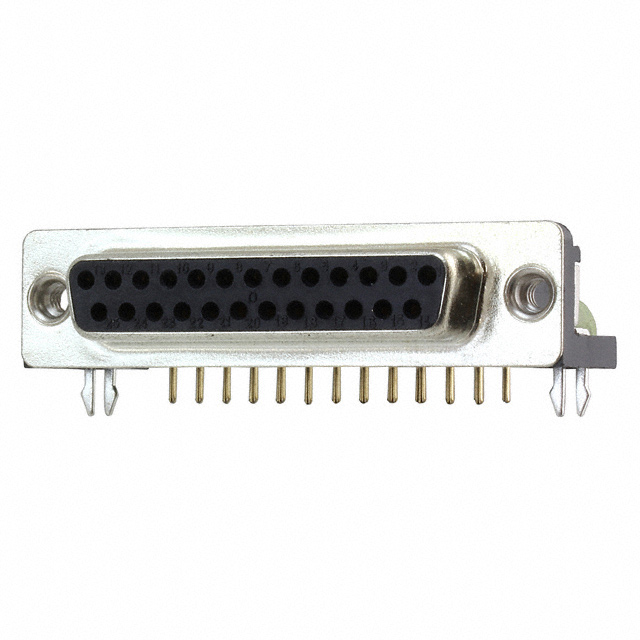

 Assmann WSW Components | Black | -55 C | 105 ░C | Copper Alloy | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | Signal | Receptacle Female Sockets | D-Sub | Flash | 2 | Gold | B DB | 3 | Housing/Shell | Right Angle Through Hole | 25 | 3 A | Solder | Board Lock | 4-40 | 0.319 in | 8.1 mm | ||||

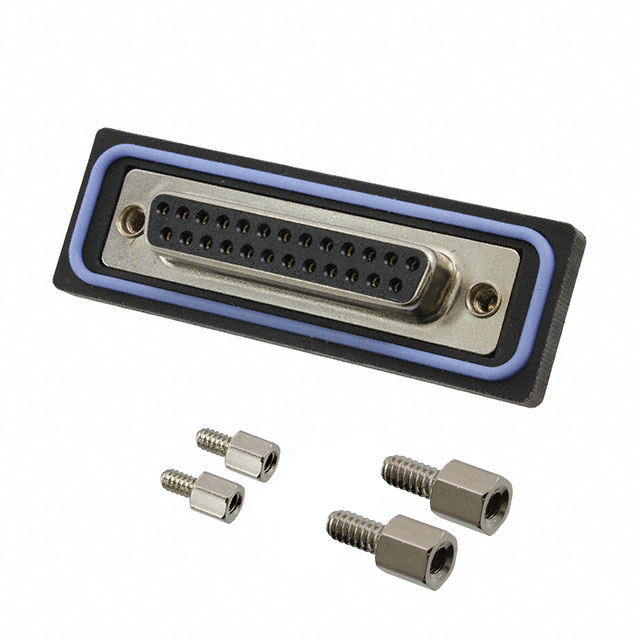

 Assmann WSW Components | Black | -40 C | 105 ░C | Copper Alloy | Glass Filled Nylon Polyamide (PA) | Signal | Receptacle Female Sockets | D-Sub | 2 | Gold | B DB | 3 | Female Screwlock Mating Side | Panel Mount | 25 | 5 A | 26 AWG | 22 AWG | IP67 - Dust Tight Waterproof |
