0159002 Series

SMF TELELINK FUSE CLIP RoHS 260C 2A

Catalog

SMF TELELINK FUSE CLIP RoHS 260C 2A

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Applications	Breaking Capacity @ Rated Voltage	Fuse Type	Features	Voltage Rating - AC	Mounting Type	Current Rating (Amps)

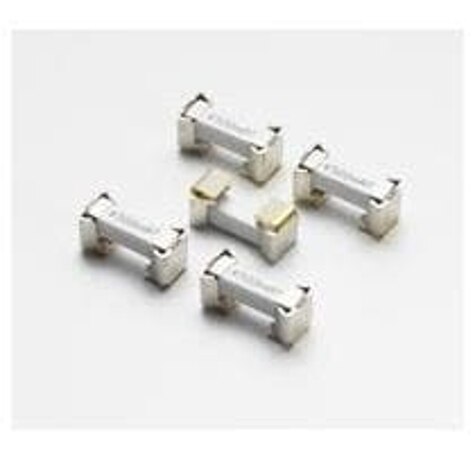

LITTELFUSE 0159002.MR	-55 C	125 °C	2-SMD Square End Block with Clip	0.429 "	10.9 mm	0.189 in	4.8 mm	4.8 mm	0.189 "	Telecom	60 A	Board Mount	Clips Included	600 VAC	Surface Mount	2 A

Catalog

SMF TELELINK FUSE CLIP RoHS 260C 2A

Description

The 159 Series product is a metal fuse clip with preinstalled Littelfuse 461 Series TeleLink® fuse. This fuse and clip combination can be automatically installed in PC Boards in one efficient manufacturing operation. It permits quick and easy fuse replacement without exposing the PC Board and other components to risks of rework solder heat as required with direct surface mount fuses. It meets UL 60950 power cross requirements and is designed to allow compliance with Telcordia GR-1089-CORE and TIA-968-A Surge Specifications. The product provides coordinated protection with Littelfuse SIDACtor® protection thyristors without series resistors.
