5541FE Series
Manufacturer: Belden Inc.
Beta
⌘K

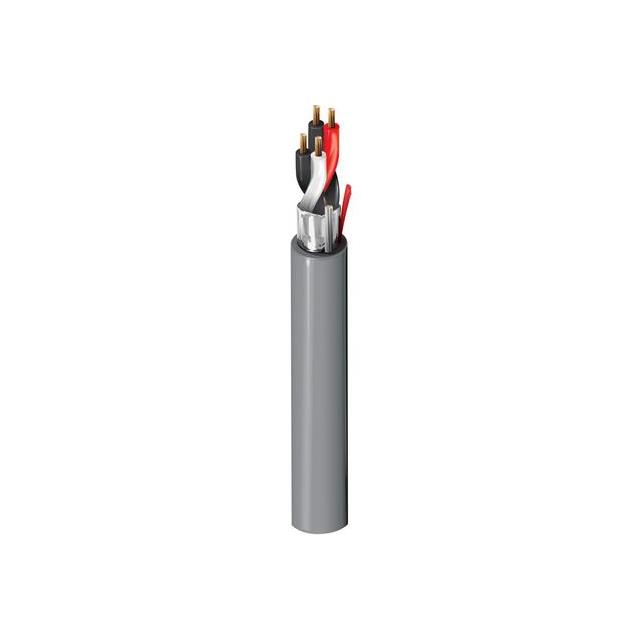

MULTI-PAIR 4CON 22AWG GRAY
| Part | Shield Material | Shield Coverage | Ratings | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Conductor Insulation | Cable Type | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Features | Jacket Color | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Number of Conductors | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | UL Style CMR | 22 AWG | 0.189 in | 4.8 mm | 304.8 m | 1000 ft | Polypropylene (PP) | Multi-Pair | Copper Bare | 0.017 " | 0.432 mm | 300 VDC | Drain Wire Rip Cord | Gray | Foil | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) Riser | 4 | Security Sound |
Belden Inc. | Aluminum | 100 % | UL Style CMR | 22 AWG | 0.189 in | 4.8 mm | 304.8 m | 1000 ft | Polypropylene (PP) | Multi-Pair | Copper Bare | 0.017 " | 0.432 mm | 300 VDC | Drain Wire Rip Cord | Gray | Foil | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) Riser | 4 | Security Sound |
