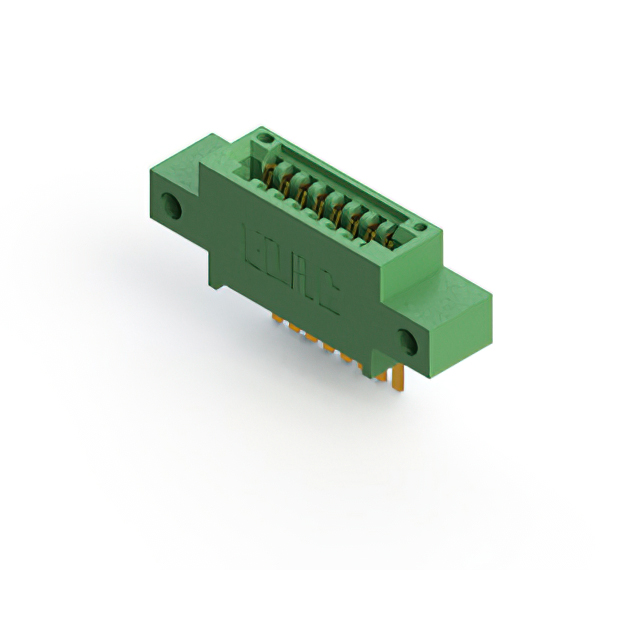

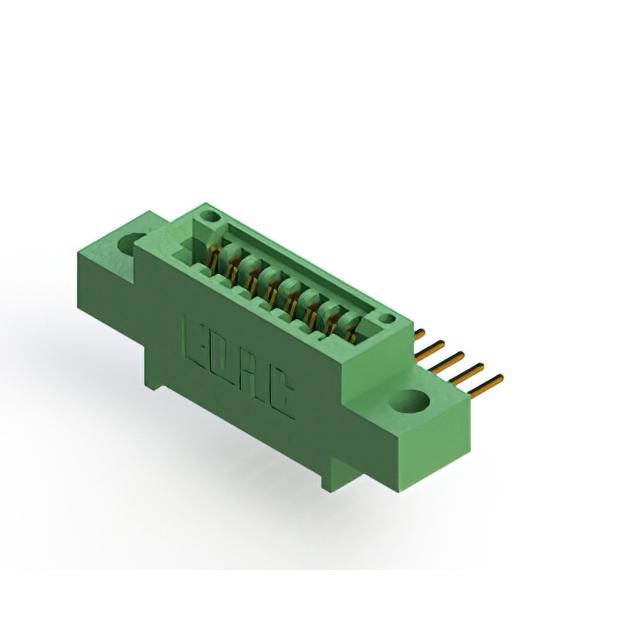

845-008 Series
Manufacturer: EDAC Inc.
Catalog
2.54MM 8P -40℃~+125℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS
...
| Part | Contact Finish | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Contact Type | Pitch [x] | Pitch [x] | Number of Rows | Contact Material | Flange Feature | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Color | Termination | Gender | Read Out | Mounting Type | Number of Positions | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Solder | Female | Single | Through Hole | 8 | ||||
 EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Wire Wrap | Female | Single | Through Hole | 8 | 3.25 mm | 0.128 in | |||
 EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | Side Mount Opening Unthreaded | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Solder | Female | Single | Through Hole | 8 | 3.25 mm | 0.128 in | ||
 EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | Top Mount Opening Unthreaded | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Solder | Female | Single | Through Hole Right Angle | 8 | 0.156 in | 3.96 mm | ||
 EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Wire Wrap | Female | Single | Through Hole | 8 | ||||
 EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | Side Mount Opening Unthreaded | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Wire Wrap | Female | Single | Through Hole | 8 | 3.25 mm | 0.128 in | ||
 EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | Side Mount Opening Unthreaded | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Wire Wrap | Female | Single | Through Hole | 8 | 3.25 mm | 0.128 in | ||
 EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | Flush Mount Top Opening Unthreaded | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Solder Eyelet(s) | Female | Single | Through Hole | 8 | 0.128 " | 3.25 mm | ||
 EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | Flush Mount Top Opening Unthreaded | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Solder | Female | Single | Through Hole | 8 | 0.128 " | 3.25 mm | ||
EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Solder Eyelet(s) | Female | Single | Through Hole | 8 | 3.25 mm | 0.128 in |
