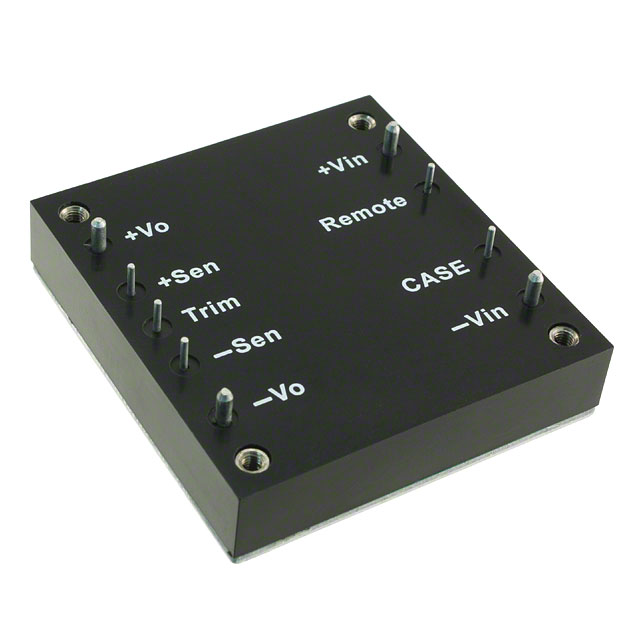

VHB350 Series

Manufacturer: CUI Inc.

Catalog

MODULE DC-DC 24VIN 1-OUT 24V 14.6A 350W 9-PIN HALF-BRICK

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Standard Number	Mounting Type	Type	Voltage - Output 1	Approval Agency	Efficiency	Features	Power (Watts)	Control Features	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Isolation	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Package / Case	Current - Output (Max) [Max]
CUI Inc. VHB350-D24-S24	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	55024 55032 Class A 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4	Through Hole	Isolated Module	24 V	EN	90 %	OCP OTP OVP Remote On/Off SCP UVLO	350 W	Active High Enable	1	-40 C	100 °C	ITE (Commercial)	1.5 kV	36 V	18 V	9-DIP Module 1/2 Brick	14.6 A
CUI Inc. VHB350-D48-S12	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	55024 55032 Class A 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4	Through Hole	Isolated Module	12 V	EN	92.5 %	OCP OTP OVP Remote On/Off SCP UVLO	350 W	Active High Enable	1	-40 C	100 °C	ITE (Commercial)	1.5 kV	75 V	36 V	9-DIP Module 1/2 Brick	29.2 A
CUI Inc. VHB350-D24-S28	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	55024 55032 Class A 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4	Through Hole	Isolated Module	28 V	EN	91 %	OCP OTP OVP Remote On/Off SCP UVLO	350 W	Active High Enable	1	-40 C	100 °C	ITE (Commercial)	1.5 kV	36 V	18 V	9-DIP Module 1/2 Brick	12.5 A
CUI Inc. VHB350-D48-S5	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	55024 55032 Class A 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4	Through Hole	Isolated Module	5 V	EN	91 %	OCP OTP OVP Remote On/Off SCP UVLO	350 W	Active High Enable	1	-40 C	100 °C	ITE (Commercial)	1.5 kV	75 V	36 V	9-DIP Module 1/2 Brick	70 A
CUI Inc. VHB350-D48-S28	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	55024 55032 Class A 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4	Through Hole	Isolated Module	28 V	EN	92.5 %	OCP OTP OVP Remote On/Off SCP UVLO	350 W	Active High Enable	1	-40 C	100 °C	ITE (Commercial)	1.5 kV	75 V	36 V	9-DIP Module 1/2 Brick	12.5 A
CUI Inc. VHB350-D48-S3R3	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	55024 55032 Class A 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4	Through Hole	Isolated Module	3.3 V	EN	89 %	OCP OTP OVP Remote On/Off SCP UVLO	350 W	Active High Enable	1	-40 C	100 °C	ITE (Commercial)	1.5 kV	75 V	36 V	9-DIP Module 1/2 Brick	70 A
CUI Inc. VHB350-D24-S5	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	55024 55032 Class A 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4	Through Hole	Isolated Module	5 V	EN		OCP OTP OVP Remote On/Off SCP UVLO	350 W	Active High Enable	1	-40 C	100 °C	ITE (Commercial)	1.5 kV	36 V	18 V	9-DIP Module 1/2 Brick	70 A
CUI Inc. VHB350-D24-S12	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	55024 55032 Class A 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4	Through Hole	Isolated Module	12 V	EN	91.5 %	OCP OTP OVP Remote On/Off SCP UVLO	350 W	Active High Enable	1	-40 C	100 °C	ITE (Commercial)	1.5 kV	36 V	18 V	9-DIP Module 1/2 Brick	29.2 A
