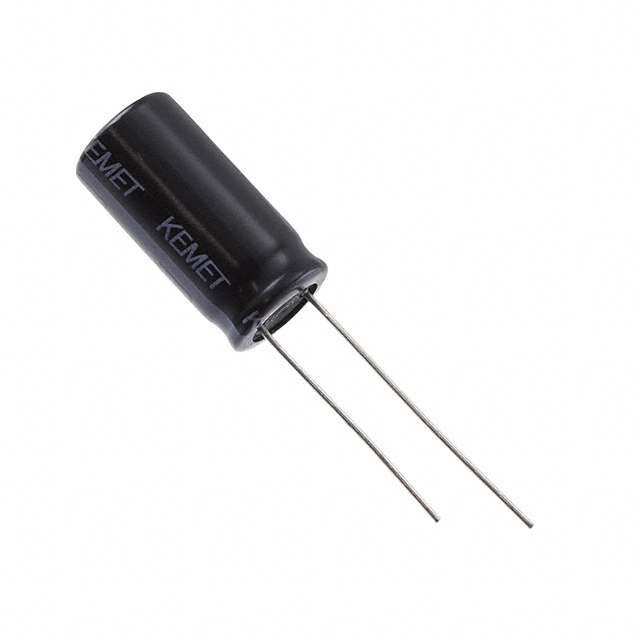

ESU106M Series
Manufacturer: KEMET
Beta
⌘K
CAP ALUM 10UF 20% 350V RADIAL TH
| Part | Capacitance | Mounting Type | Polarization | Lead Spacing | Lead Spacing | Height - Seated (Max) [Max] [custom] | Height - Seated (Max) [Max] [custom] | Ripple Current @ High Frequency | Voltage - Rated | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance | Ripple Current @ Low Frequency | Applications | Package / Case | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 10 µF | Through Hole | Polar | 0.197 " | 5 mm | 0.866 in | 22 mm | 350 mA | 350 V | 0.394 in | 10 mm | 105 ░C | -25 °C | 20 % | 175 mA | General Purpose | Can Radial | 10000 Hrs |
 KEMET | 10 µF | Through Hole | Polar | 0.197 " | 5 mm | 0.866 in | 22 mm | 180 mA | 400 V | 0.394 in | 10 mm | 105 ░C | -25 °C | 20 % | 90 mA | General Purpose | Can Radial | 10000 Hrs |
