TPS63802 Series

2-A, high-efficient, 11-µA quiescent current buck-boost converter in QFN/DFN package

Catalog

2-A, high-efficient, 11-µA quiescent current buck-boost converter in QFN/DFN package

Part	Utilized IC / Part	Voltage - Output	Supplied Contents	Main Purpose	Board Type	Outputs and Type	Outputs and Type	Current - Output	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Voltage - Output [Min]	Voltage - Output [Max]	Frequency - Switching	Supplier Device Package	Voltage - Input (Min) [Min]	Output Configuration	Voltage - Output (Min/Fixed)	Package / Case	Voltage - Input (Max) [Max]	Output Type	Topology	Number of Outputs	Voltage - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Function

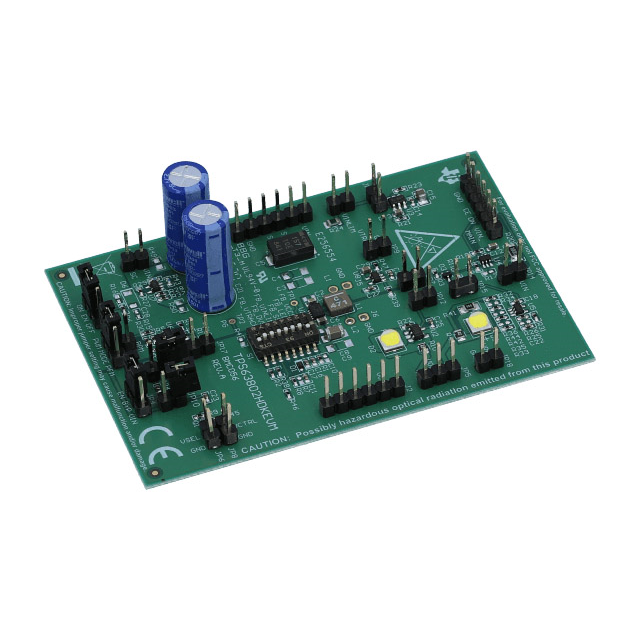

Texas Instruments TPS63802HDKEVM	TPS63802	3.3 V	Board(s)	DC/DC Step Up or Down	Fully Populated	Non-Isolated	1	2 A	1.8 V	5.5 V	Buck-Boost
Texas Instruments TPS63802EVM	TPS63802		Board(s)	DC/DC Step Up or Down	Fully Populated	Non-Isolated	1	2 A	1.3 V	5.5 V	Buck-Boost	1.8 V	5 V	2.1 MHz

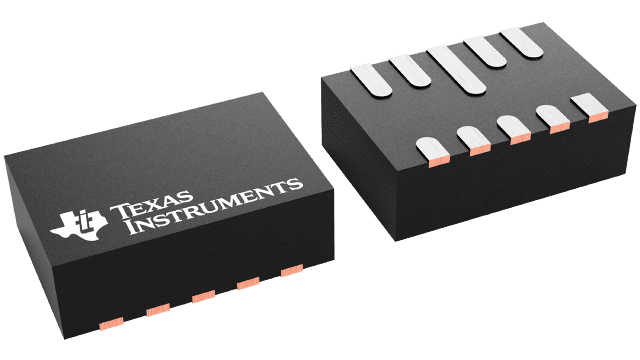

Texas Instruments TPS63802DLAT								2 A						2.1 MHz	10-VSON-HR (3x2)	1.3 V	Positive	1.8 V	10-PowerVFDFN	5.5 V	Adjustable	Buck-Boost	1	5.2 V	-40 °C	125 ¯C	Surface Mount	Step-Up/Step-Down

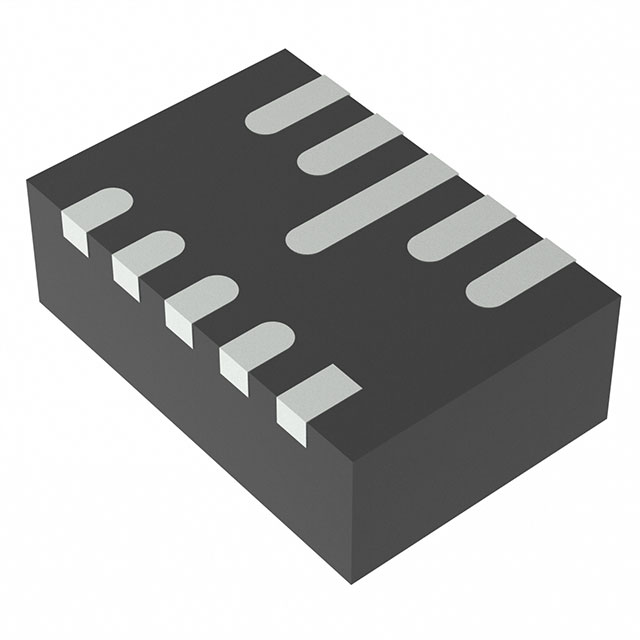

Texas Instruments TPS63802DLAR								2 A						2.1 MHz	10-VSON-HR (3x2)	1.3 V	Positive	1.8 V	10-PowerVFDFN	5.5 V	Adjustable	Buck-Boost	1	5.2 V	-40 °C	125 ¯C	Surface Mount	Step-Up/Step-Down

Catalog

2-A, high-efficient, 11-µA quiescent current buck-boost converter in QFN/DFN package

Key Features

• Input voltage range: 1.3 V to 5.5 VDevice input voltage > 1.8 V for start-upOutput voltage range: 1.8 V to 5.2 V (adjustable)2-A output current for VI≥ 2.3 V, VO= 3.3 VHigh efficiency over the entire load range11-µA operating quiescent currentPower save mode and mode selection for forced PWM-modePeak current buck-boost mode architectureDefined transition points between buck, buck-boost, and boost operation modesForward and reverse current operationStart-up into pre-biased outputsSafety and robust operation featuresIntegrated soft startOvertemperature- and overvoltage-protectionTrue shutdown function with load disconnectForward and backward current limitSmall solution size of 21.5 mm2Tiny SON/DFN package (similar to QFN)Small 0.47-µH inductorWorks with a 22-µF minimum output capacitorCreate a custom design using the TPS63802 with theWEBENCH Power DesignerInput voltage range: 1.3 V to 5.5 VDevice input voltage > 1.8 V for start-upOutput voltage range: 1.8 V to 5.2 V (adjustable)2-A output current for VI≥ 2.3 V, VO= 3.3 VHigh efficiency over the entire load range11-µA operating quiescent currentPower save mode and mode selection for forced PWM-modePeak current buck-boost mode architectureDefined transition points between buck, buck-boost, and boost operation modesForward and reverse current operationStart-up into pre-biased outputsSafety and robust operation featuresIntegrated soft startOvertemperature- and overvoltage-protectionTrue shutdown function with load disconnectForward and backward current limitSmall solution size of 21.5 mm2Tiny SON/DFN package (similar to QFN)Small 0.47-µH inductorWorks with a 22-µF minimum output capacitorCreate a custom design using the TPS63802 with theWEBENCH Power Designer

Description

The TPS63802 is a high efficiency, high output current buck-boost converter. Depending on the input voltage, it automatically operates in boost, buck, or in a novel 4-cycle buck-boost mode when the input voltage is approximately equal to the output voltage. The transitions between modes happen at defined thresholds and avoid unwanted toggling within the modes to reduce output voltage ripple. The device output voltages are individually set by a resistive divider within a wide output voltage range. An 11-µA quiescent current enables the highest efficiency for little to no-load conditions. The TPS63802 is a high efficiency, high output current buck-boost converter. Depending on the input voltage, it automatically operates in boost, buck, or in a novel 4-cycle buck-boost mode when the input voltage is approximately equal to the output voltage. The transitions between modes happen at defined thresholds and avoid unwanted toggling within the modes to reduce output voltage ripple. The device output voltages are individually set by a resistive divider within a wide output voltage range. An 11-µA quiescent current enables the highest efficiency for little to no-load conditions.
