325310 Series
Manufacturer: Curtis Industries
Beta
⌘K
CONN BARRIER STRP 23CIRC 0.325"
| Part | Material - Insulation | Terminal Screw Material | Material Flammability Rating | Mounting Type | Operating Temperature | Top Termination | Barrier Type | Wire Gauge [Min] | Wire Gauge [Max] | Pitch | Pitch | Current Rating (Amps) | Bottom Termination | Terminal Block Type | Number of Wire Entries | Number of Circuits [custom] | Number of Rows | Voltage Rating | Number of Circuits |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | Polypropylene (PP) | Steel | UL94 V-0 | Through Hole | 105 C | Screws | 3 Wall (Tri) | 14 AWG | 22 AWG | 0.325 in | 8.26 mm | 15 A | PC Pin | Barrier Block | 23 | 23 | 1 | 300 VDC | |
 Curtis Industries | Polypropylene (PP) | Steel | UL94 V-0 | Through Hole | 105 C | Screws | 3 Wall (Tri) | 14 AWG | 22 AWG | 0.325 in | 8.26 mm | 15 A | PC Pin | Barrier Block | 11 | 1 | 300 VDC | 11 | |

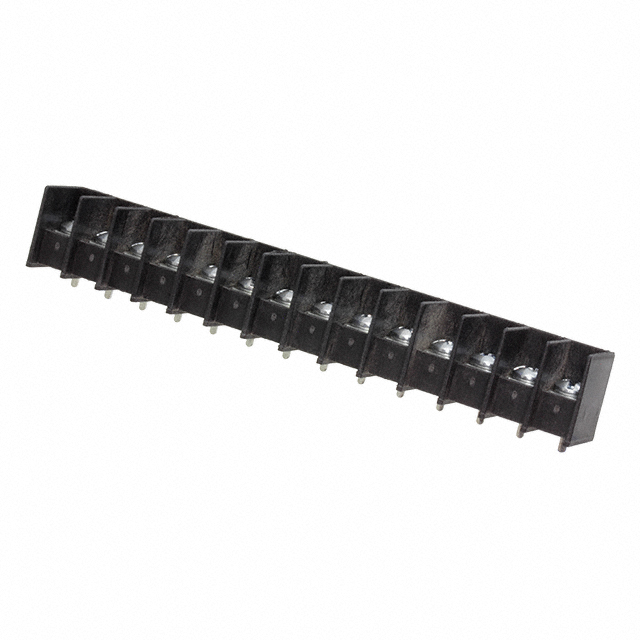

 Curtis Industries | Polypropylene (PP) | Steel | UL94 V-0 | Through Hole | 105 C | Screws | 3 Wall (Tri) | 14 AWG | 22 AWG | 0.325 in | 8.26 mm | 15 A | PC Pin | Barrier Block | 14 | 1 | 300 VDC | 14 | |
Curtis Industries | Polypropylene (PP) | Steel | UL94 V-0 | Through Hole | 105 C | Screws | 3 Wall (Tri) | 14 AWG | 22 AWG | 0.325 in | 8.26 mm | 15 A | PC Pin | Barrier Block | 15 | 1 | 300 VDC | 15 | |

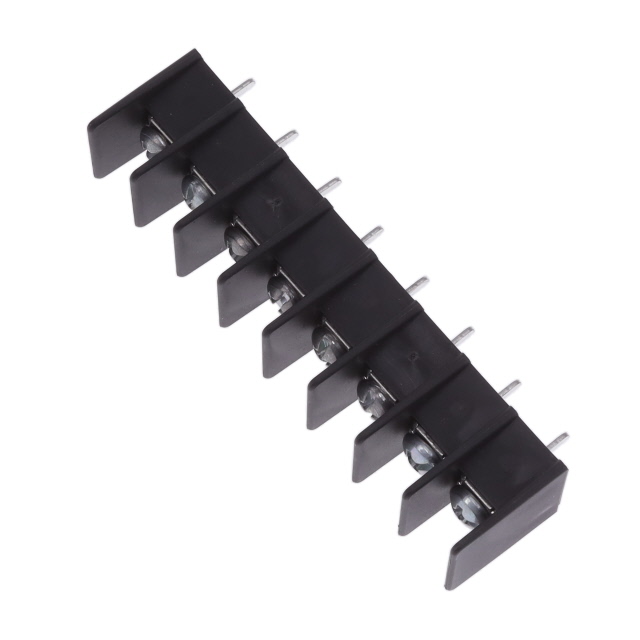

 Curtis Industries | Polypropylene (PP) | Steel | UL94 V-0 | Through Hole | 105 C | Screws | 3 Wall (Tri) | 14 AWG | 22 AWG | 0.325 in | 8.26 mm | 15 A | PC Pin | Barrier Block | 9 | 9 | 1 | 300 VDC | |

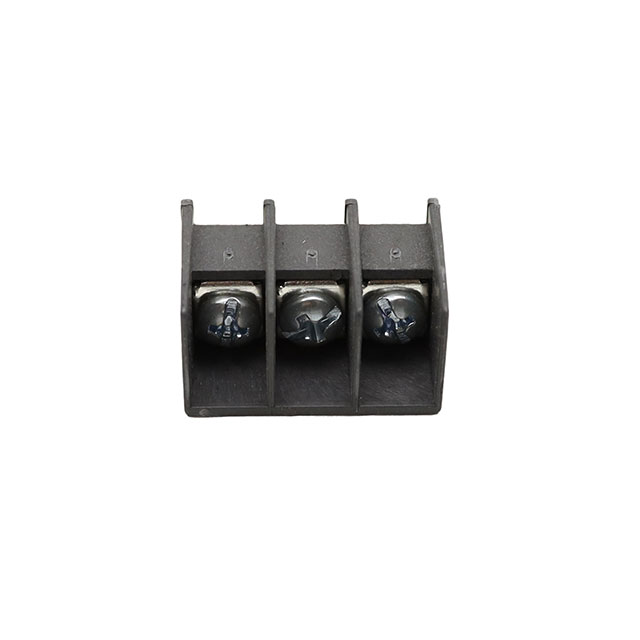

 Curtis Industries | Polypropylene (PP) | Steel | UL94 V-0 | Through Hole | 105 C | Screws | 3 Wall (Tri) | 14 AWG | 22 AWG | 0.325 in | 8.26 mm | 15 A | PC Pin | Barrier Block | 3 | 1 | 300 VDC | 3 |
