TL3240 Series

Manufacturer: E-Switch

Catalog

CAP TACTILE SQUARE BLUE

Part	For Use With/Related Products	Illumination	Color	Switch Type	Mounting Type	Size [z]	Size [x]	Size [y]	Shape	Switch Travel	Mechanical Life	Illumination Type, Color	Circuit	Features	Actuator Height off PCB, Vertical [z]	Operating Force	Illumination Voltage (Nominal)	Actuator Type	Actuator Orientation	Contact Rating @ Voltage	Outline [y]	Outline [x]	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Switch Function	Size [diameter]

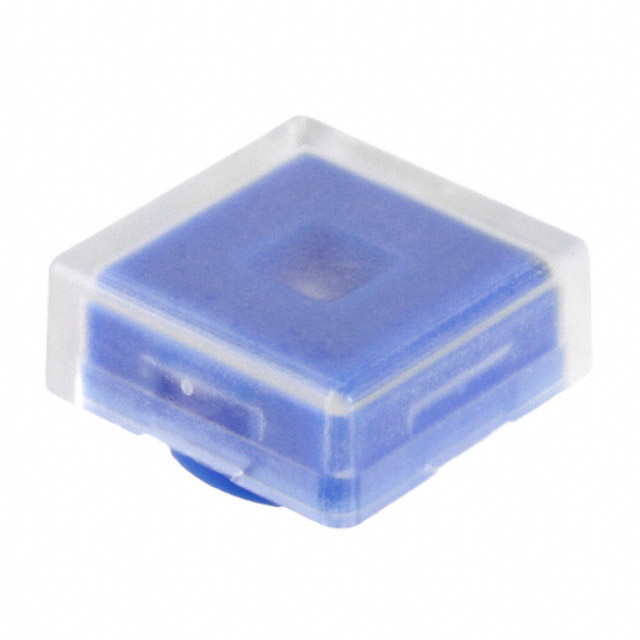

E-Switch TL3240S1CAPBLU	TL3240 Series	Illumination Opening	Blue	Tactile	Snap Fit	3.9 mm	10.2 mm	10.2 mm	Square
E-Switch TL3240F260R		Illuminated			Surface Mount					0.2 mm	200000 Cycles	LED Red	SPST-NO	Board Guide	7.8 mm	260 gf	1.8 VDC	Plunger for Cap	Top Actuated	0.05 A 12 VDC	6.1 mm	6.1 mm	-25 °C	70 °C	Gull Wing	Off-Mom

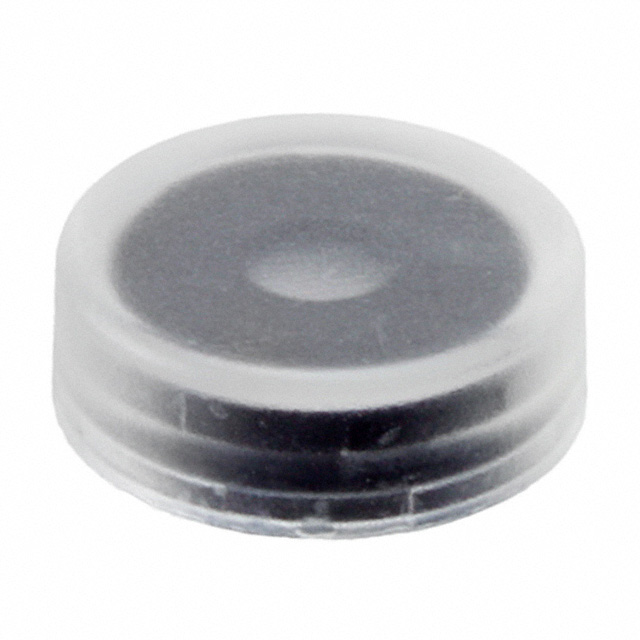

E-Switch TL3240R1CAPBLK	TL3240 Series	Illumination Opening	Black	Tactile	Snap Fit	3.5 mm			Round																		10.2 mm
E-Switch TL3240F160G		Illuminated			Surface Mount					0.2 mm	200000 Cycles	Green LED	SPST-NO	Board Guide	7.8 mm	160 gf	2 VDC	Plunger for Cap	Top Actuated	0.05 A 12 VDC	6.1 mm	6.1 mm	-25 °C	70 °C	Gull Wing	Off-Mom

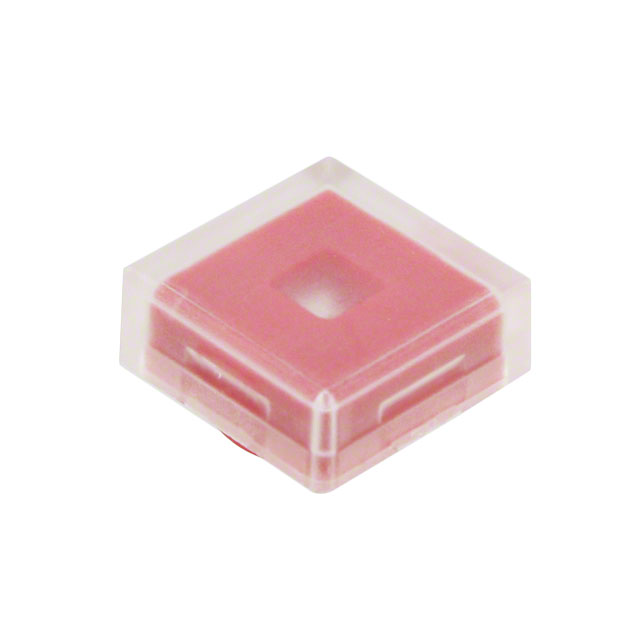

E-Switch TL3240S1CAPRED	TL3240 Series	Illumination Opening	Red	Tactile	Snap Fit	3.9 mm	10.2 mm	10.2 mm	Square

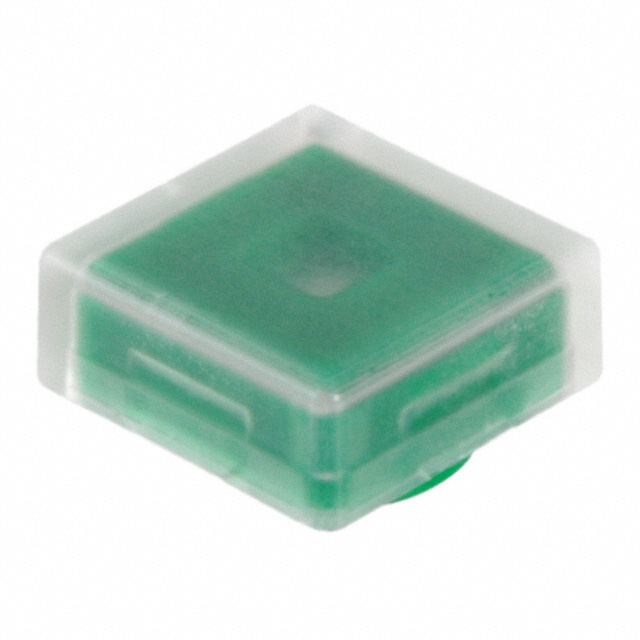

E-Switch TL3240S1CAPGRN	TL3240 Series	Illumination Opening	Green	Tactile	Snap Fit	3.9 mm	10.2 mm	10.2 mm	Square

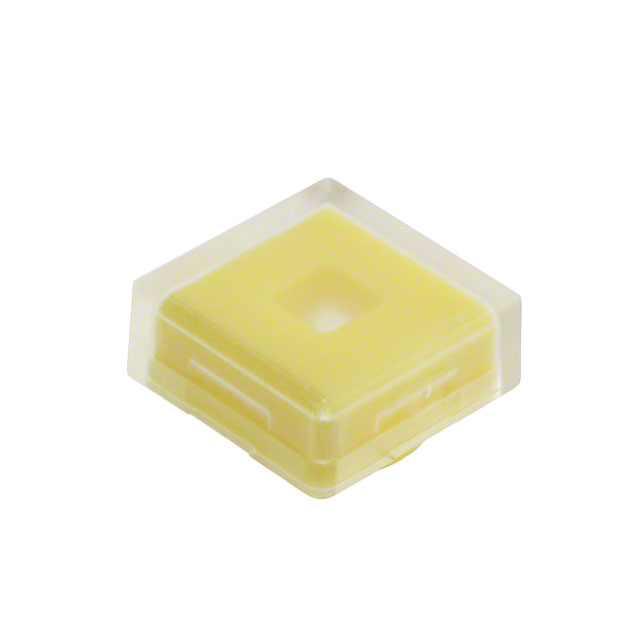

E-Switch TL3240S1CAPYEL	TL3240 Series	Illumination Opening	Yellow	Tactile	Snap Fit	3.9 mm	10.2 mm	10.2 mm	Square
E-Switch TL3240F260B		Illuminated			Surface Mount							Blue LED	SPST-NO	Board Guide	7.8 mm	260 gf	3.2 VDC	Plunger for Cap	Top Actuated	0.05 A 12 VDC	6.1 mm	6.1 mm	-25 °C	70 °C	Gull Wing	Off-Mom
E-Switch TL3240F100G		Illuminated			Surface Mount					0.2 mm	200000 Cycles	Green LED	SPST-NO	Board Guide	7.8 mm	100 gf	2 VDC	Plunger for Cap	Top Actuated	0.05 A 12 VDC	6.1 mm	6.1 mm	-25 °C	70 °C	Gull Wing	Off-Mom

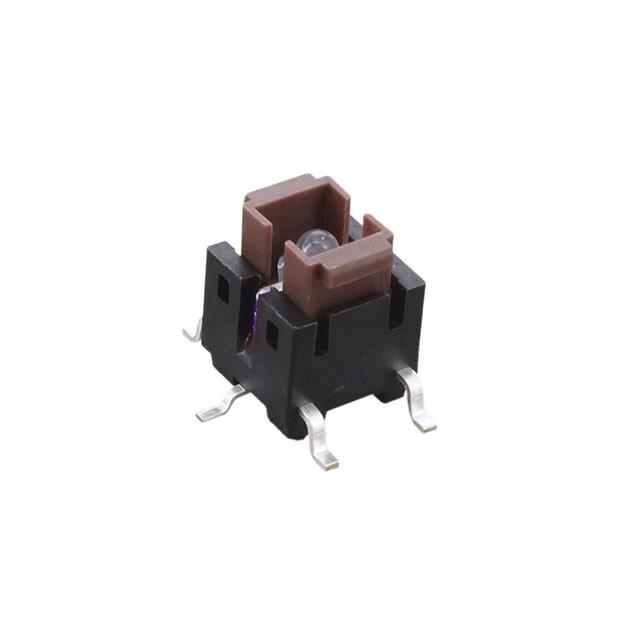

E-Switch TL3240F160BT		Illuminated			Surface Mount					0.2 mm	500000 Cycles	Blue LED	SPST-NO		7.8 mm	160 gf	3.2 VDC	Plunger for Cap	Top Actuated	0.05 A 12 VDC	6.1 mm	6.1 mm	-25 °C	70 °C	Gull Wing	Off-Mom
