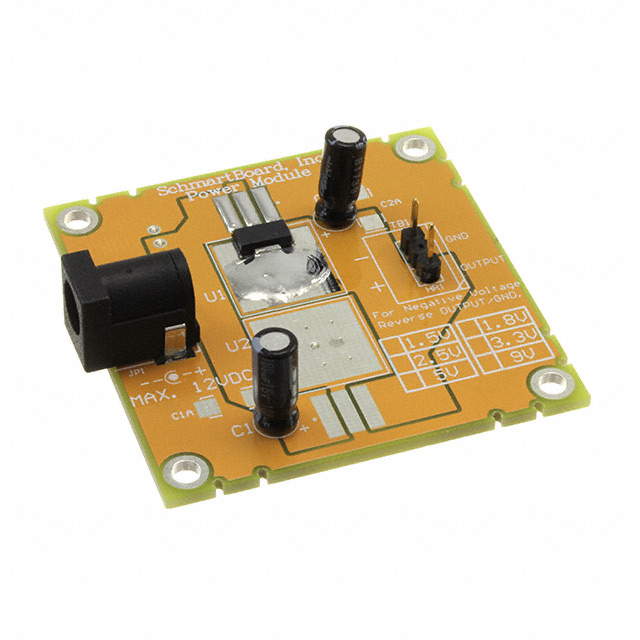

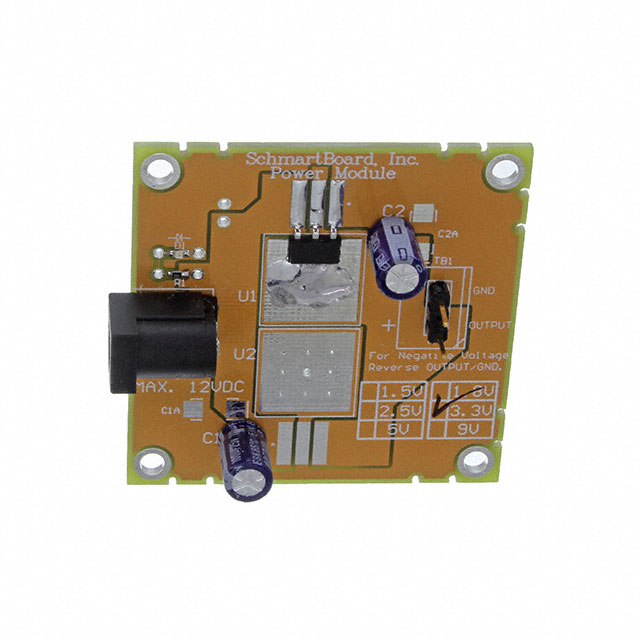

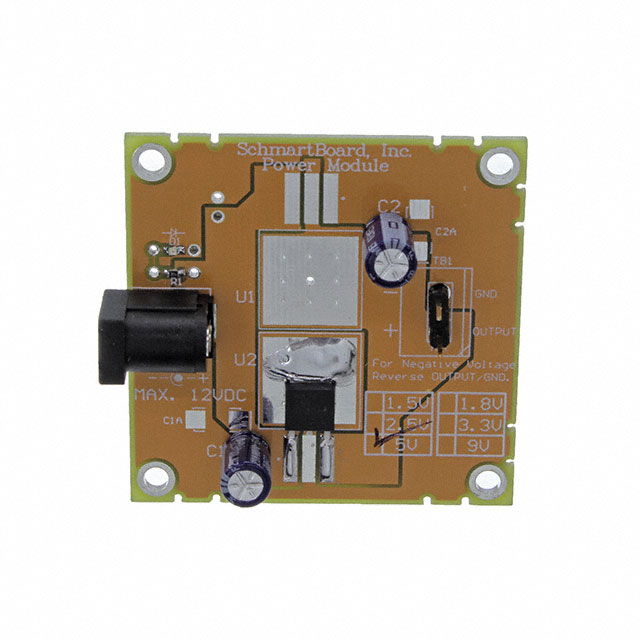

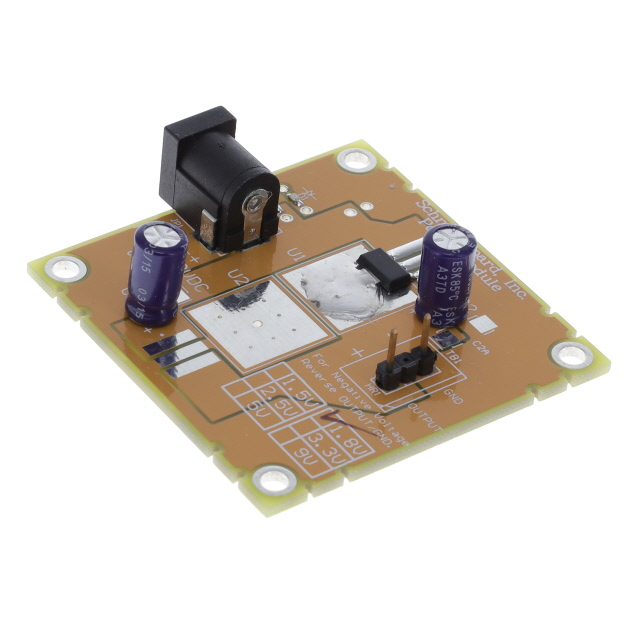

710-0003 Series
Manufacturer: Schmartboard, Inc.
Beta
⌘K
5 VOLT POPULATED SINGLE VOLTAGE
| Part | Board Type | Supplied Contents | Voltage - Output | Utilized IC / Part | Voltage - Input | Regulator Type | Contents | Channels per IC |
|---|---|---|---|---|---|---|---|---|
 Schmartboard, Inc. | Fully Populated | Board(s) | 5 V | TLV1117-50 | 12 VDC | Positive Fixed | Board(s) | 1 |
 Schmartboard, Inc. | Fully Populated | Board(s) | 2.5 V | TLV1117-25 | 12 VDC | Positive Fixed | Board(s) | 1 |
Schmartboard, Inc. | Fully Populated | Board(s) | 1.5 V | TLV1117-15 | 12 VDC | Positive Fixed | Board(s) | 1 |
 Schmartboard, Inc. | Fully Populated | Board(s) | 3.3 V | TLV1117-33 | 12 VDC | Positive Fixed | Board(s) | 1 |

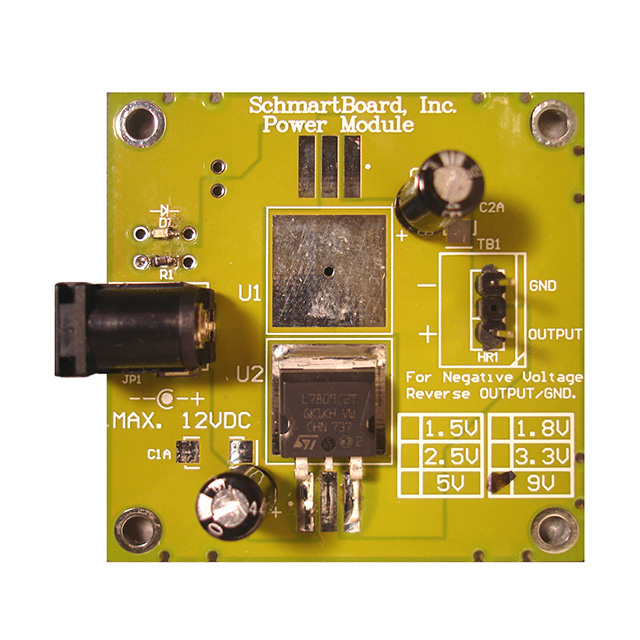

 Schmartboard, Inc. | Fully Populated | Board(s) | 9 V | KA78R09C | 12 VDC | Positive Fixed | Board(s) | 1 |
 Schmartboard, Inc. | Fully Populated | Board(s) | 1.8 V | TLV1117-18 | 12 VDC | Positive Fixed | Board(s) | 1 |
