ARRAYJ Series

Silicon Photomultiplier Arrays, J-Series (SiPM)

Catalog

Silicon Photomultiplier Arrays, J-Series (SiPM)

Part	Wavelength	Active Area	Package / Case	Mounting Type	Sensor Type	Utilized IC / Part	Interface	Supplied Contents

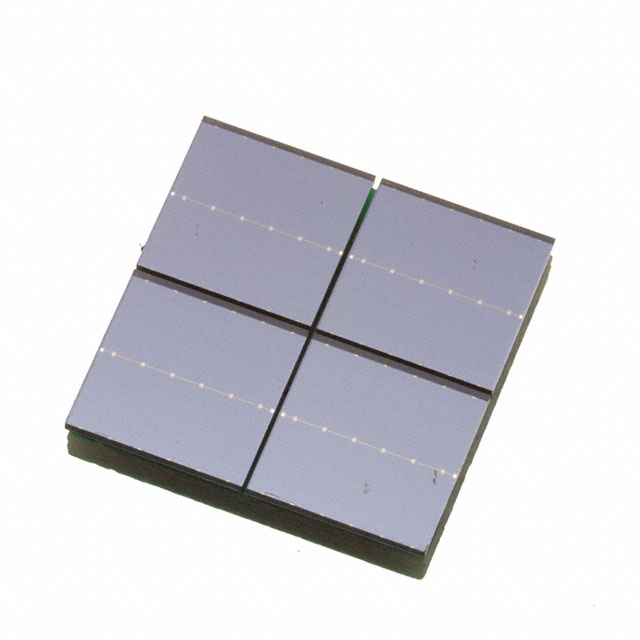

ON Semiconductor ARRAYJ-60035-4P-BGA	420 nm	100 mm²	9-EBGA	Surface Mount
ON Semiconductor ARRAYJ-30020-64P-PCB	420 nm	9 mm²	Module	Socketable

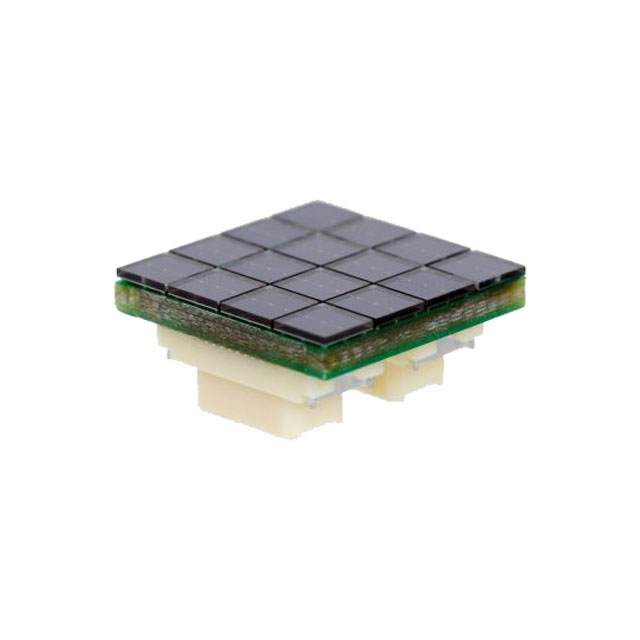

ON Semiconductor ARRAYJ-30035-16P-PCB	420 nm	9 mm²	Module	Socketable

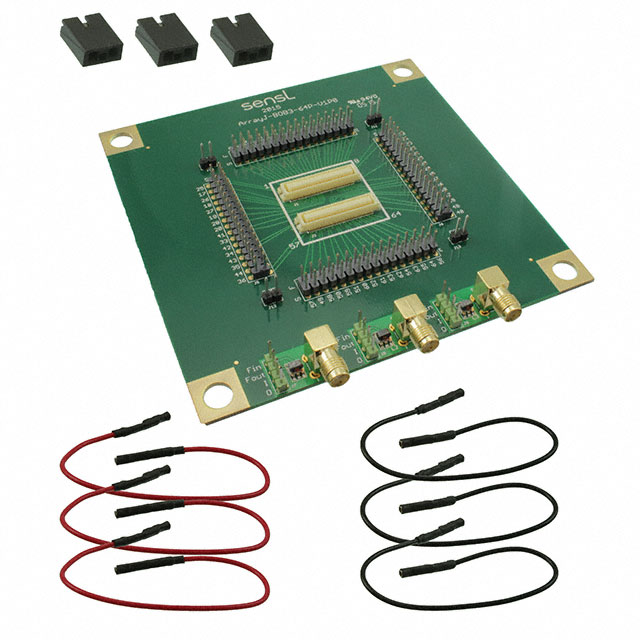

ON Semiconductor ARRAYJ-BOB3-64P-GEVK					Light Silicon Photomultiplier (SiPM)	ArrayJ-300xx-64P ArrayJ-40035-64P	Analog	Board(s)

Silicon Photomultiplier Arrays, J-Series (SiPM)

• High fill-factor, scalable arrays

• Variety of formats ranging from 2×2 to 8×8

• Minimal deadspace, with fill factors of >90%

• Each array as either a multi-way connector or BGA on the reverse for access to all signals

• The pixel signals can either be read out individually for imaging applications, or summed by the user to create a large area, single-channel sensor

• The pixel-level performance is exactly as per that of the individual J-Series sensors

• Optional evaluation boards are available for easy access to signals
