PS2833-4 Series

High Collector to Emitter Voltage 4, 16-PIN SSOP Photocoupler

Manufacturer: Renesas Electronics Corporation

Catalog

High Collector to Emitter Voltage 4, 16-PIN SSOP Photocoupler

Part	Supplier Device Package	Number of Channels	Voltage - Isolation	Mounting Type	Input Type	Current - DC Forward (If) (Max)	Current Transfer Ratio (Min) [Min]	Voltage - Output (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case [y]	Package / Case	Package / Case [x]	Current - Output / Channel	Vce Saturation (Max) [Max]	Current Transfer Ratio (Max)
Renesas Electronics Corporation PS2833-1-V-A	4-SSOP	1	2500 Vrms	Surface Mount	DC	50 mA	400 %	350 V	100 °C	-55 °C	Darlington	5 µs	20 µs	4.4 mm	4-SOIC	0.173 in	60 mA	1 V	4500 %
Renesas Electronics Corporation PS2833-1-V-F3-A	4-SSOP	1	2500 Vrms	Surface Mount	DC	50 mA	400 %	350 V	100 °C	-55 °C	Darlington	5 µs	20 µs	4.4 mm	4-SOIC	0.173 in	60 mA	1 V	4500 %
Renesas Electronics Corporation PS2833-1-F3-A	4-SSOP	1	2500 Vrms	Surface Mount	DC	50 mA	400 %	350 V	100 °C	-55 °C	Darlington	5 µs	20 µs	4.4 mm	4-SOIC	0.173 in	60 mA	1 V	4500 %
Renesas Electronics Corporation PS2833-4-F3-A	16-SSOP	4	2500 Vrms	Surface Mount	DC	50 mA	400 %	350 V	100 °C	-55 °C	Darlington	5 µs	20 µs		16-SOIC		60 mA	1 V	4500 %
Renesas Electronics Corporation PS2833-1-A	4-SSOP	1	2500 Vrms	Surface Mount	DC	50 mA	400 %	350 V	100 °C	-55 °C	Darlington	5 µs	20 µs	4.4 mm	4-SOIC	0.173 in	60 mA	1 V	4500 %

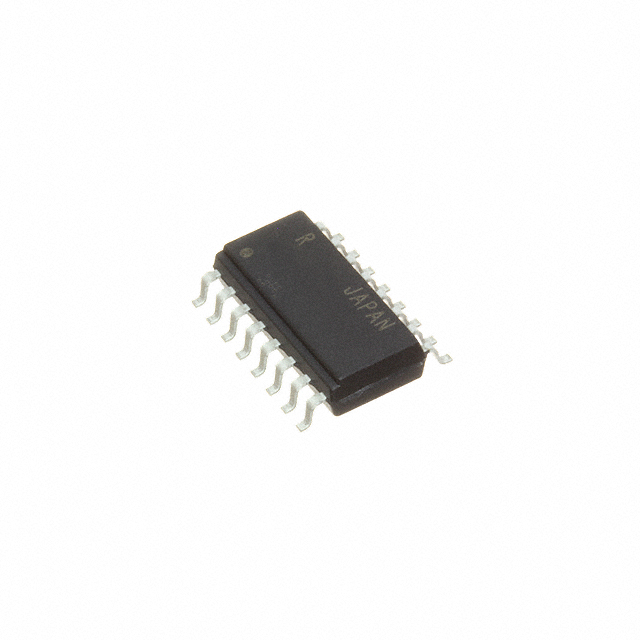

Renesas Electronics Corporation PS2833-4-A	16-SSOP	4	2500 Vrms	Surface Mount	DC	50 mA	400 %	350 V	100 °C	-55 °C	Darlington	5 µs	20 µs		16-SOIC		60 mA	1 V	4500 %

Catalog

High Collector to Emitter Voltage 4, 16-PIN SSOP Photocoupler

Description

The PS2833-1, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington -connected phototransistor. The package is a Shrink SOP (Small Outline Package) type for high density mounting applications.
