D4E-1F23 Series

Catalog

SWITCH SNAP ACTION SPDT 5A 125V

Part	Circuit	Ingress Protection	Differential Travel	Differential Travel	Current Rating (Amps)	Mounting Type	Operating Position	Operating Position	Switch Function	Voltage Rating - DC	Voltage Rating - AC	Release Force	Overtravel	Overtravel	Features	Mechanical Life	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Pretravel	Electrical Life	Operating Force	Actuator Type

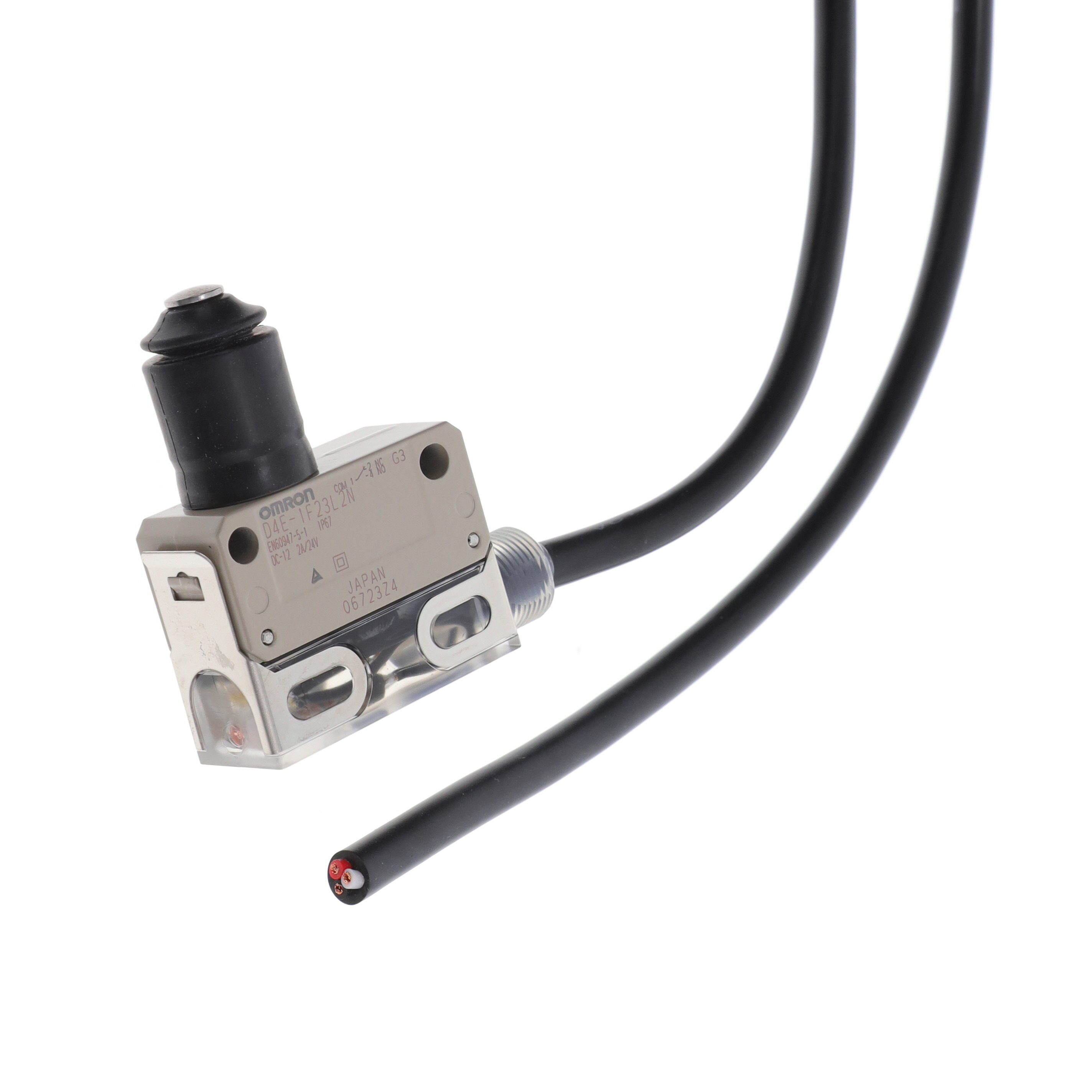

Omron Electronics Inc-EMC Div D4E-1F23L2N	SPDT	IP67 - Dust Tight Waterproof	0.1 mm	0.004 in	5 A	Chassis Mount	1.18 "	30 mm	On-Mom	30 V	125 V	500 gf	3 mm	0.118 in	Status Indicator	10000000 Cycles	Cable Leads	80 C	-10 °C	1.5 mm	0.06 in	500000 Cycles	1200 gf	Round (Pin Plunger)
