E2EC-CR8 Series

Manufacturer: Omron Automation and Safety

Catalog

SENSOR PROX INDUCT 1.8MM CYLIND

Part	Output Type	Termination Style	Material - Body	Operating Temperature [Min]	Operating Temperature [Max]	Indicator	Sensing Distance	Sensing Distance	Sensor Type	Shielding	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Response Frequency	Ingress Protection
Omron Automation and Safety E2EC-CR8D1-3 0.12M	2-Wire NPN-NO	Cable Leads	Nickel-Plated Brass	-25 °C	70 °C	LED	1.8 mm	0.071 "	Inductive	Shielded	Cylinder	10 VDC	30 VDC	1.5 kHz	IP67

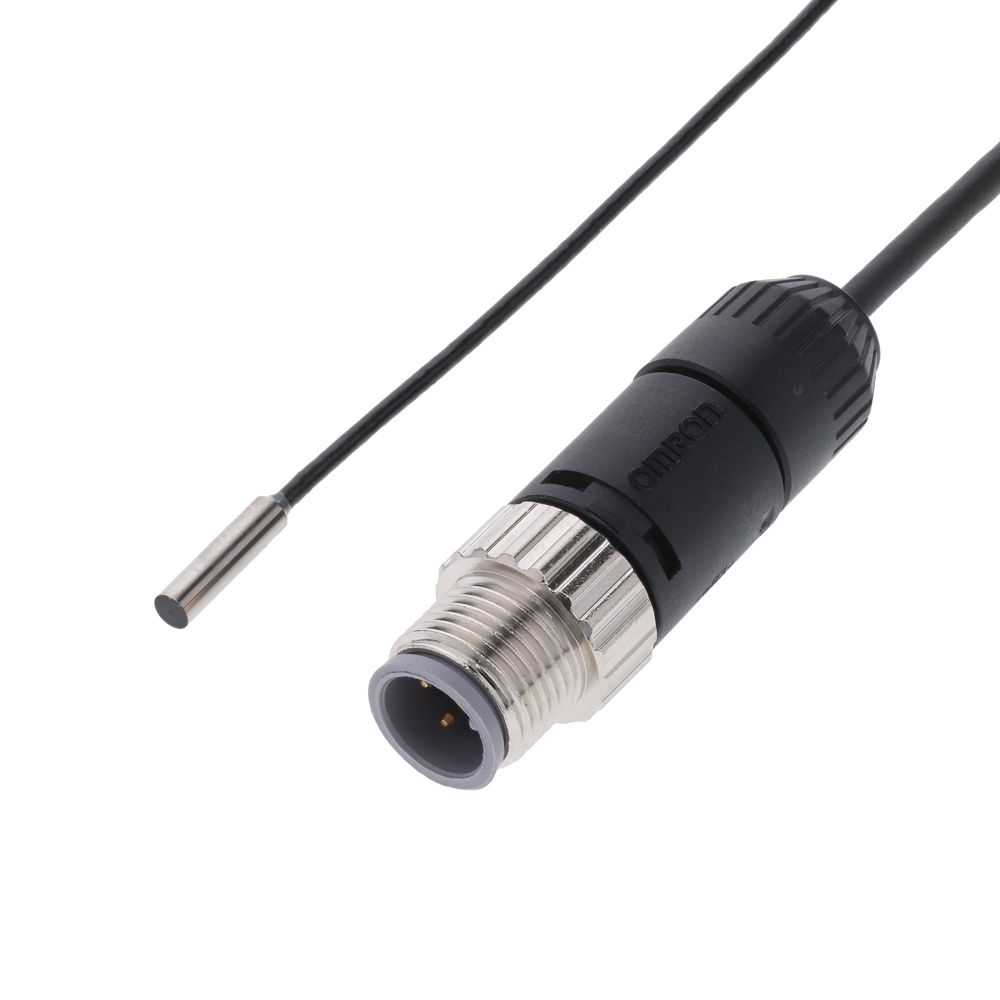

Omron Automation and Safety E2EC-CR8D1-M1GJ 0.5M	2-Wire NPN-NO	Cable with Connector	Nickel-Plated Brass	-25 °C	70 °C	LED	0.8 mm	0.031 in	Inductive	Shielded	Cylinder	10 VDC	30 VDC	1.5 kHz	IP67
Omron Automation and Safety E2EC-CR8D1-M1J 0.5M	2-Wire NPN-NO	Cable with Connector	Nickel-Plated Brass	-25 °C	70 °C	LED	0.8 mm	0.031 in	Inductive	Shielded	Cylinder	10 VDC	30 VDC	1.5 kHz	IP67

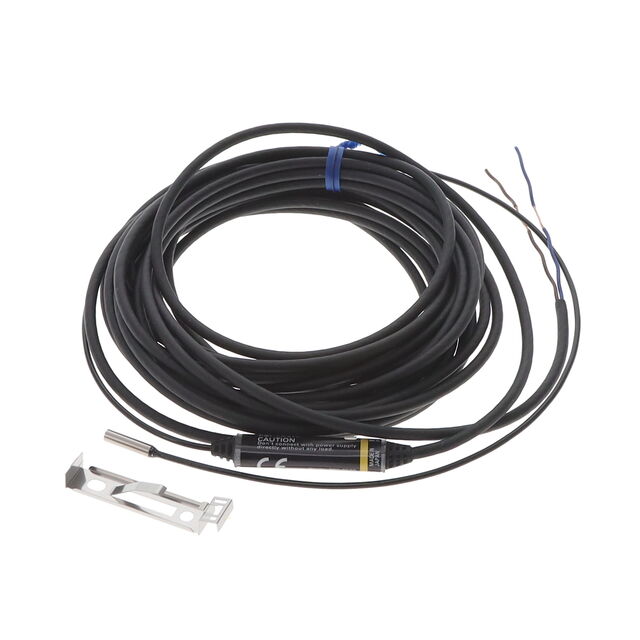

Omron Automation and Safety E2EC-CR8D1 5M	2-Wire NPN-NO	Cable Leads	Nickel-Plated Brass	-25 °C	70 °C	LED	0.8 mm	0.031 in	Inductive	Shielded	Cylinder	10 VDC	30 VDC	1.5 kHz	IP67
Omron Automation and Safety E2EC-CR8D15 5M	2-Wire NPN-NO	Cable Leads	Nickel-Plated Brass	-25 °C	70 °C	LED	0.8 mm	0.031 in	Inductive	Shielded	Cylinder	10 VDC	30 VDC		IP67

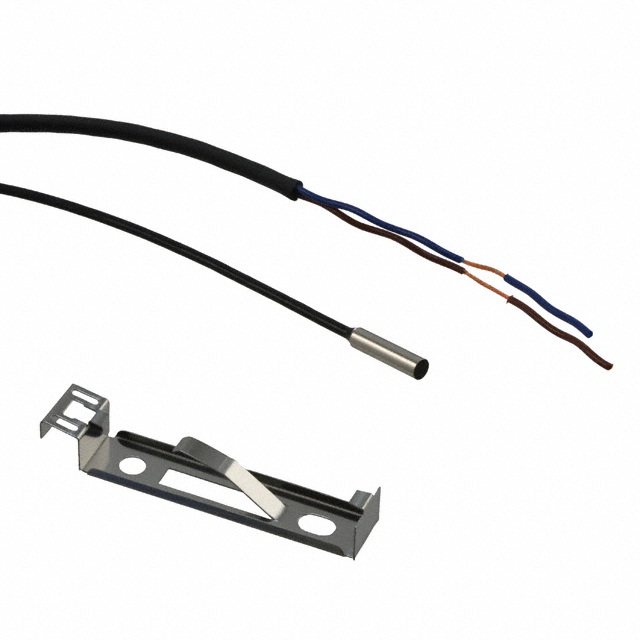

Omron Automation and Safety E2EC-CR8D1	2-Wire NPN-NO	Cable Leads	Nickel-Plated Brass	-25 °C	70 °C	LED	0.8 mm	0.031 in	Inductive	Shielded	Cylinder	10 VDC	30 VDC	1.5 kHz	IP67
Omron Automation and Safety E2EC-CR8D15 2M	2-Wire NPN-NO	Cable Leads	Nickel-Plated Brass	-25 °C	70 °C	LED	0.8 mm	0.031 in	Inductive	Shielded	Cylinder	10 VDC	30 VDC		IP67
Omron Automation and Safety E2EC-CR8D2	2-Wire NPN-NC	Cable Leads	Nickel-Plated Brass	-25 °C	70 °C	LED	0.8 mm	0.031 in	Inductive	Shielded	Cylinder	10 VDC	30 VDC	1.5 kHz	IP67
Omron Automation and Safety E2EC-CR8D1-M1TGJ 0.5M	2-Wire NPN-NO	Cable with Connector	Nickel-Plated Brass	-25 °C	70 °C	LED	0.8 mm	0.031 in	Inductive	Shielded	Cylinder	10 VDC	30 VDC	1.5 kHz	IP67
