7009-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth [z]	Socket Depth [z]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Length - Overall	Length - Overall	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Contact Material	Tail Type	Contact Finish

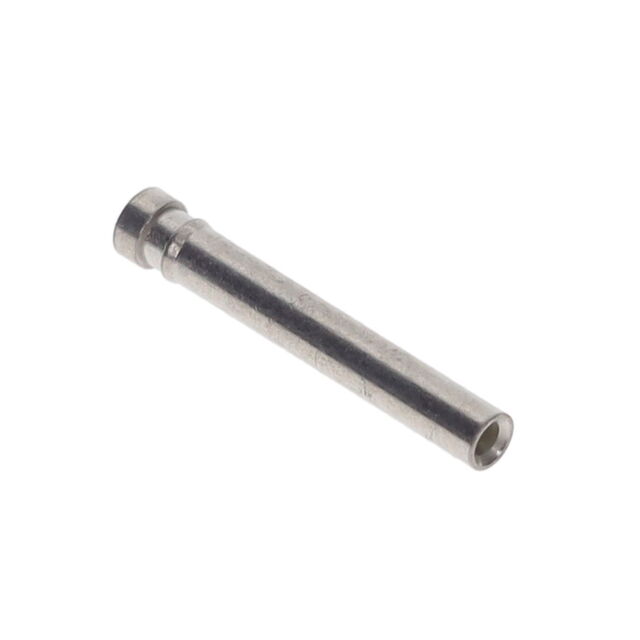

Mill-Max Manufacturing Corp. 7009-0-19-01-15-01-10-0	-55 C	125 °C	3.81 mm	0.15 in	0.063 in	1.6 mm	0.072 "	1.83 mm	30 Áin	0.76 Ám	11.43 mm	0.45 in	0.047 in	1.19 mm	Press-Fit	0.51 mm	0.02 in	0.81 mm	0.032 "	Beryllium Copper	No Tail

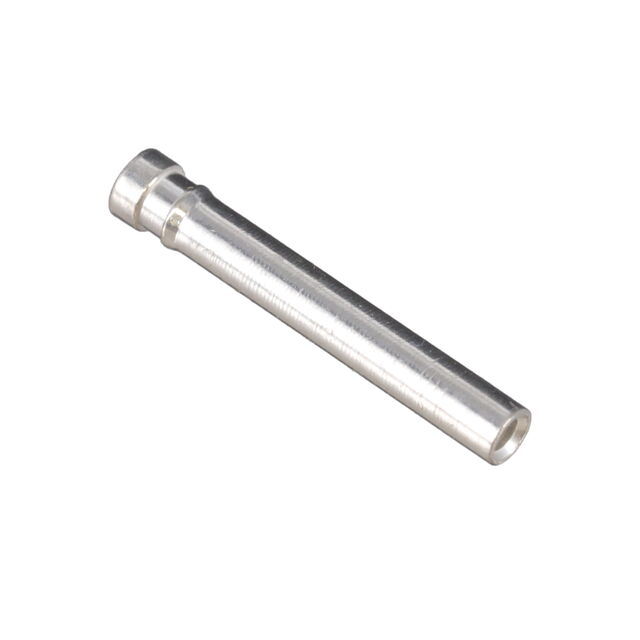

Mill-Max Manufacturing Corp. 7009-0-19-80-15-27-10-0	-55 C	125 °C	3.81 mm	0.15 in	0.063 in	1.6 mm	0.072 "	1.83 mm	30 Áin	0.76 Ám	11.43 mm	0.45 in	0.047 in	1.19 mm	Press-Fit	0.51 mm	0.02 in	0.81 mm	0.032 "	Beryllium Copper	No Tail	Gold
Mill-Max Manufacturing Corp. 7009-0-19-01-15-14-10-0	-55 C	125 °C	3.81 mm	0.15 in	0.063 in	1.6 mm	0.072 "	1.83 mm	10 Áin	0.25 Ám	11.43 mm	0.45 in	0.047 in	1.19 mm	Press-Fit	0.51 mm	0.02 in	0.81 mm	0.032 "	Beryllium Copper	No Tail	Gold
Mill-Max Manufacturing Corp. 7009-0-19-80-15-14-10-0	-55 C	125 °C	3.81 mm	0.15 in	0.063 in	1.6 mm	0.072 "	1.83 mm	10 Áin	0.25 Ám	11.43 mm	0.45 in	0.047 in	1.19 mm	Press-Fit	0.51 mm	0.02 in	0.81 mm	0.032 "	Beryllium Copper	No Tail	Gold
Mill-Max Manufacturing Corp. 7009-0-19-80-15-80-10-0	-55 C	125 °C	3.81 mm	0.15 in	0.063 in	1.6 mm	0.072 "	1.83 mm	200 Áin	5.08 Ám	11.43 mm	0.45 in	0.047 in	1.19 mm	Press-Fit	0.51 mm	0.02 in	0.81 mm	0.032 "	Beryllium Copper	No Tail	Tin
Mill-Max Manufacturing Corp. 7009-0-19-01-15-27-10-0	-55 C	125 °C	3.81 mm	0.15 in	0.063 in	1.6 mm	0.072 "	1.83 mm	30 Áin	0.76 Ám	11.43 mm	0.45 in	0.047 in	1.19 mm	Press-Fit	0.51 mm	0.02 in	0.81 mm	0.032 "	Beryllium Copper	No Tail	Gold
Mill-Max Manufacturing Corp. 7009-0-19-15-15-14-10-0	-55 C	125 °C	3.81 mm	0.15 in	0.063 in	1.6 mm	0.072 "	1.83 mm	10 Áin	0.25 Ám	11.43 mm	0.45 in	0.047 in	1.19 mm	Press-Fit	0.51 mm	0.02 in	0.81 mm	0.032 "	Beryllium Copper	No Tail	Gold
