TPS24720 Series

2.5-V to 18-V hot swap controller with power limiting and current monitoring

Catalog

2.5-V to 18-V hot swap controller with power limiting and current monitoring

Part	Supplier Device Package	Package / Case	Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels	Programmable Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Current - Supply	Utilized IC / Part	Supplied Contents
Texas Instruments TPS24720RGTR	16-VQFN (3x3)	16-VFQFN Exposed Pad	Hot Swap Controller Monitor	General Purpose	85 °C	-40 °C	1	Auto Retry Current Limit Fault Timeout Latched Fault OVP UVLO	2.5 V	18 V	Surface Mount	1 mA

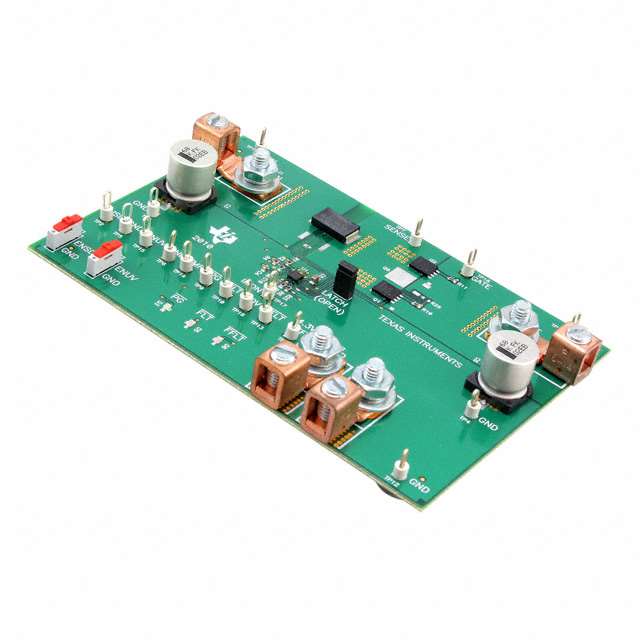

Texas Instruments TPS24720EVM-001			Power Management										TPS24720	Board(s)
Texas Instruments TPS24720RGTT	16-VQFN (3x3)	16-VFQFN Exposed Pad	Hot Swap Controller Monitor	General Purpose	85 °C	-40 °C	1	Auto Retry Current Limit Fault Timeout Latched Fault OVP UVLO	2.5 V	18 V	Surface Mount	1 mA

Catalog

2.5-V to 18-V hot swap controller with power limiting and current monitoring

Key Features

• 2.5-V to 18-V OperationAccurate Current Limiting for StartupProgrammable FET SOA ProtectionAdjustable Current Sense ThresholdProgrammable Fault TimerPower-Good OutputFast Breaker for Short-Circuit ProtectionAnalog Load-Current Monitor OutputProgrammable UV and OVLow-current Standby ModeFET Fault Detection Flag3-mm × 3-mm, 16-Pin QFN package2.5-V to 18-V OperationAccurate Current Limiting for StartupProgrammable FET SOA ProtectionAdjustable Current Sense ThresholdProgrammable Fault TimerPower-Good OutputFast Breaker for Short-Circuit ProtectionAnalog Load-Current Monitor OutputProgrammable UV and OVLow-current Standby ModeFET Fault Detection Flag3-mm × 3-mm, 16-Pin QFN package

Description

The TPS24720 is an easy-to-use, full-featured protection device for 2.5-V to 18-V power rails. This hot-swap controller drives an external N-channel MOSFET, while protecting source, load and external MOSFET against multiple potentially damaging events. During startup, load current and MOSFET power dissipation are limited to user-selected values. After startup, currents above the user-selected limit will be allowed to flow until programmed timeout – except in extreme overload events when load is immediately disconnected from source. Programmable power limiting ensures the external MOSFET operates inside its safe operating area (SOA) at all times. This allows use of smaller FETs while improving system reliability. Power good, Fault, FET Fault, and current monitor outputs are provided for system status monitoring and downstream load control. The TPS24720 is an easy-to-use, full-featured protection device for 2.5-V to 18-V power rails. This hot-swap controller drives an external N-channel MOSFET, while protecting source, load and external MOSFET against multiple potentially damaging events. During startup, load current and MOSFET power dissipation are limited to user-selected values. After startup, currents above the user-selected limit will be allowed to flow until programmed timeout – except in extreme overload events when load is immediately disconnected from source. Programmable power limiting ensures the external MOSFET operates inside its safe operating area (SOA) at all times. This allows use of smaller FETs while improving system reliability. Power good, Fault, FET Fault, and current monitor outputs are provided for system status monitoring and downstream load control.
