540-99 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN SOCKET PLCC 68POS TIN-LEAD

Part	Contact Resistance	Material Flammability Rating	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Mounting Type	Pitch - Mating	Pitch - Mating	Pitch - Post	Pitch - Post	Type	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Finish - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 540-99-068-24-000000	20 mOhm	UL94 V-0	Closed Frame	200 µin	5.08 µm	Solder	Through Hole	1.27 mm	0.05 in	0.1 in	2.54 mm	PLCC	4	17	68	Tin-Lead	Tin-Lead	5.08 µm	200 µin
Mill-Max Manufacturing Corp. 540-99-044-17-400000	20 mOhm	UL94 V-0	Closed Frame	200 µin	5.08 µm	Solder	Surface Mount	1.27 mm	0.05 in	0.05 in	1.27 mm	PLCC				Tin-Lead	Tin-Lead	5.08 µm	200 µin	11	44	4

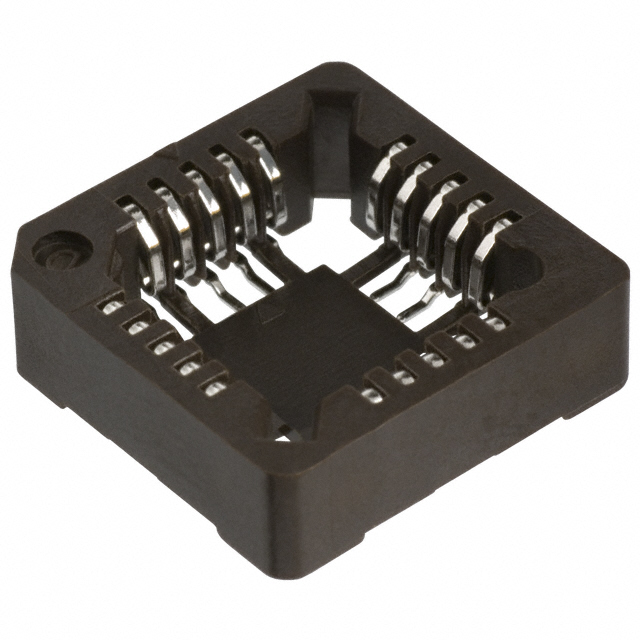

Mill-Max Manufacturing Corp. 540-99-020-17-400000	20 mOhm	UL94 V-0	Closed Frame	200 µin	5.08 µm	Solder	Surface Mount	1.27 mm	0.05 in	0.05 in	1.27 mm	PLCC				Tin-Lead	Tin-Lead	5.08 µm	200 µin		20		5	4
Mill-Max Manufacturing Corp. 540-99-020-24-000000	20 mOhm	UL94 V-0	Closed Frame	200 µin	5.08 µm	Solder	Through Hole	1.27 mm	0.05 in	0.1 in	2.54 mm	PLCC				Tin-Lead	Tin-Lead	5.08 µm	200 µin		20		5	4
Mill-Max Manufacturing Corp. 540-99-052-24-000000	20 mOhm	UL94 V-0	Closed Frame	200 µin	5.08 µm	Solder	Through Hole	1.27 mm	0.05 in	0.1 in	2.54 mm	PLCC				Tin-Lead	Tin-Lead	5.08 µm	200 µin		52				4 x 13
Mill-Max Manufacturing Corp. 540-99-020-17-400200	20 mOhm	UL94 V-0	Closed Frame	200 µin	5.08 µm	Solder	Surface Mount	1.27 mm	0.05 in	0.05 in	1.27 mm	PLCC				Tin-Lead	Tin-Lead	5.08 µm	200 µin		20		5	4
Mill-Max Manufacturing Corp. 540-99-084-24-000000	20 mOhm	UL94 V-0	Closed Frame	200 µin	5.08 µm	Solder	Through Hole	1.27 mm	0.05 in	0.1 in	2.54 mm	PLCC				Tin-Lead	Tin-Lead	5.08 µm	200 µin
Mill-Max Manufacturing Corp. 540-99-032-24-000000	20 mOhm	UL94 V-0	Closed Frame	200 µin	5.08 µm	Solder	Through Hole	1.27 mm	0.05 in	0.1 in	2.54 mm	PLCC				Tin-Lead	Tin-Lead	5.08 µm	200 µin	7 9	32	2
Mill-Max Manufacturing Corp. 540-99-032-17-400000	20 mOhm	UL94 V-0	Closed Frame	200 µin	5.08 µm	Solder	Surface Mount	1.27 mm	0.05 in	0.05 in	1.27 mm	PLCC				Tin-Lead	Tin-Lead	5.08 µm	200 µin	7 9	32	2
