745-144 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 144POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Type	Read Out	Contact Material	Number of Positions/Bay/Row [custom]	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Number of Rows [custom]	Gender	Pitch	Pitch	Contact Finish	Card Type	Contact Finish Thickness	Contact Finish Thickness	Termination
EDAC Inc. 745-144-525-201	Polyester Thermoplastic	2	Through Hole	-40 C	105 ░C	Black	Cantilever	Dual	Copper Alloy	72	0.07 in 1.78 mm	0.054 in 1.37 mm	144	2	Female	0.1 "	2.54 mm	Gold	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit
EDAC Inc. 745-144-520-201	Polyester Thermoplastic	2	Through Hole	-40 C	105 ░C	Black	Cantilever	Dual	Copper Alloy	72	0.07 in 1.78 mm	0.054 in 1.37 mm	144	2	Female	0.1 "	2.54 mm	Gold	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit

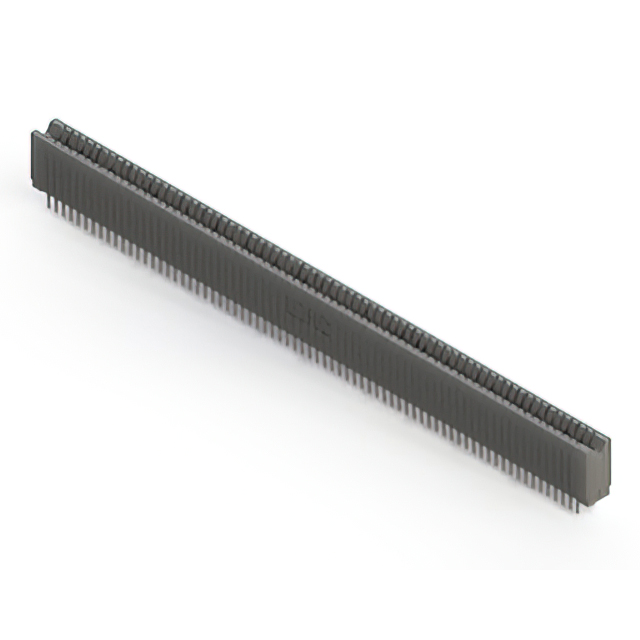

EDAC Inc. 745-144-520-206	Polyester Thermoplastic	2	Through Hole	-40 C	105 ░C	Black	Cantilever	Dual	Copper Alloy	72	0.07 in 1.78 mm	0.054 in 1.37 mm	144	2	Female	0.1 "	2.54 mm	Gold	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit

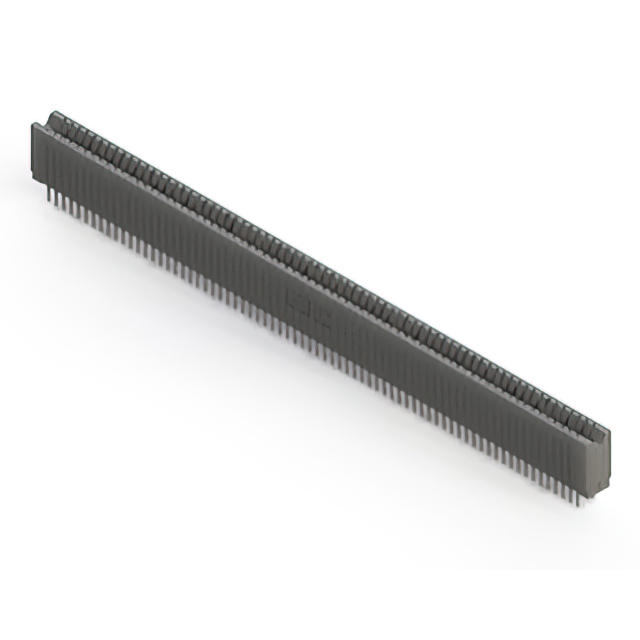

EDAC Inc. 745-144-522-206	Polyester Thermoplastic	2	Through Hole	-40 C	105 ░C	Black	Cantilever	Dual	Copper Alloy	72	0.07 in 1.78 mm	0.054 in 1.37 mm	144	2	Female	0.1 "	2.54 mm	Gold	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit

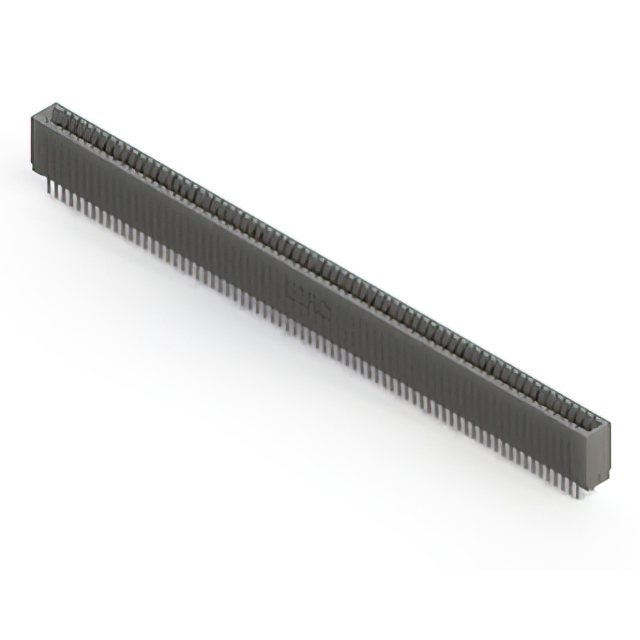

EDAC Inc. 745-144-545-201	Polyester Thermoplastic	2	Through Hole	-40 C	105 ░C	Black	Cantilever	Dual	Copper Alloy	72	0.07 in 1.78 mm	0.054 in 1.37 mm	144	2	Female	0.1 "	2.54 mm	Gold	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit
EDAC Inc. 745-144-560-206	Polyester Thermoplastic	2	Through Hole	-40 C	105 ░C	Black	Cantilever Make Before Break	Dual	Copper Alloy	72	0.07 in 1.78 mm	0.054 in 1.37 mm	144	2	Female	0.1 "	2.54 mm	Gold	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit

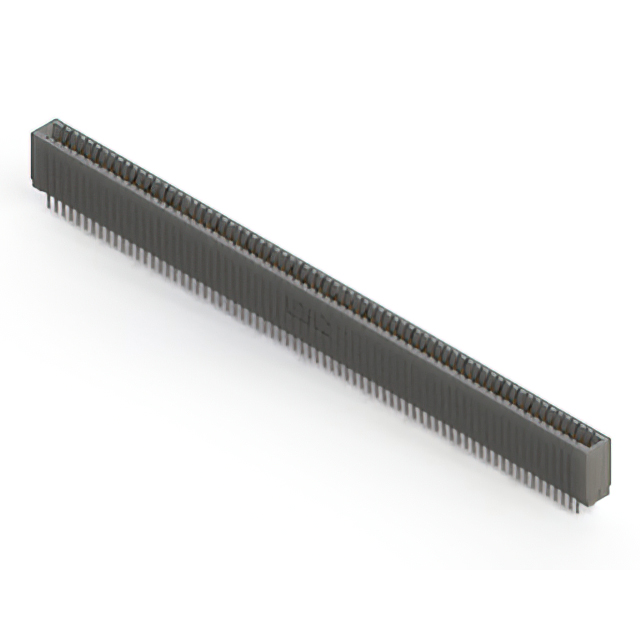

EDAC Inc. 745-144-560-201	Polyester Thermoplastic	2	Through Hole	-40 C	105 ░C	Black	Cantilever Make Before Break	Dual	Copper Alloy	72	0.07 in 1.78 mm	0.054 in 1.37 mm	144	2	Female	0.1 "	2.54 mm	Gold	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit
EDAC Inc. 745-144-540-206	Polyester Thermoplastic	2	Through Hole	-40 C	105 ░C	Black	Cantilever	Dual	Copper Alloy	72	0.07 in 1.78 mm	0.054 in 1.37 mm	144	2	Female	0.1 "	2.54 mm	Gold	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit Wire Wrap

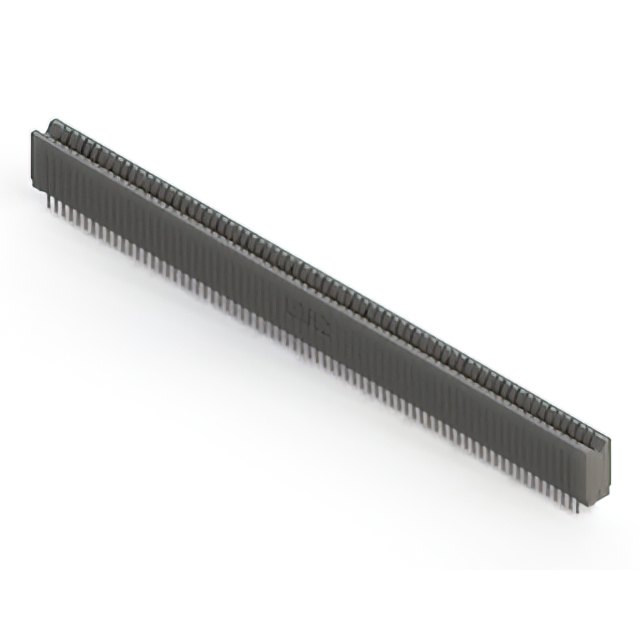

EDAC Inc. 745-144-525-206	Polyester Thermoplastic	2	Through Hole	-40 C	105 ░C	Black	Cantilever	Dual	Copper Alloy	72	0.07 in 1.78 mm	0.054 in 1.37 mm	144	2	Female	0.1 "	2.54 mm	Gold	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit
EDAC Inc. 745-144-541-206	Polyester Thermoplastic	2	Through Hole	-40 C	105 ░C	Black	Cantilever	Dual	Copper Alloy	72	0.07 in 1.78 mm	0.054 in 1.37 mm	144	2	Female	0.1 "	2.54 mm	Gold	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit Wire Wrap
