ANR-I Series

Manufacturer: OptiFuse

Catalog

FUSE AUTO 15A 32VDC BLADE ATO

Part	Voltage Rating - DC	Current Rating (Amps)	Response Time	Mounting Type	Breaking Capacity @ Rated Voltage	Color	Fuse Type	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Package / Case

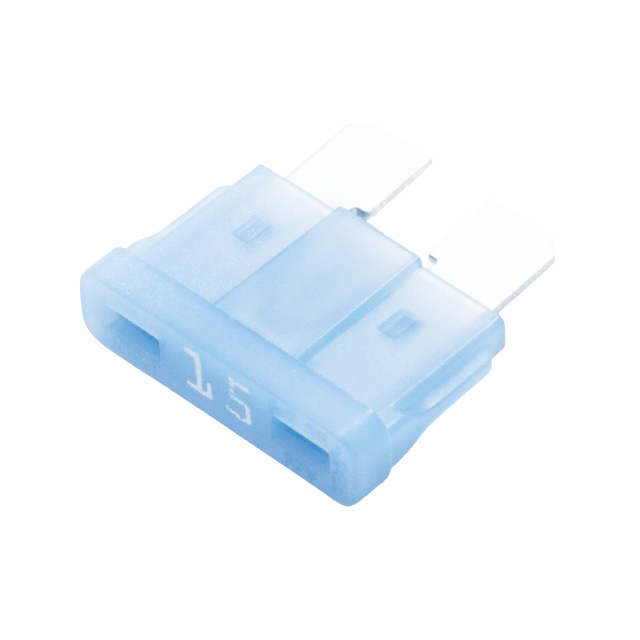

OptiFuse ANR-I-15A	32 V	15 A	Fast Blow	Requires Holder	1 kA	Blue	Automotive	ISO SAE	0.494 "	5 mm	19.3 mm	12.54 mm	0.197 "	0.76 "	Blade ATO/ATC
OptiFuse ANR-I-10A	32 V	10 A	Fast Blow	Requires Holder	1 kA	Red	Automotive	ISO SAE	0.494 "	5 mm	19.3 mm	12.54 mm	0.197 "	0.76 "	Blade ATO/ATC

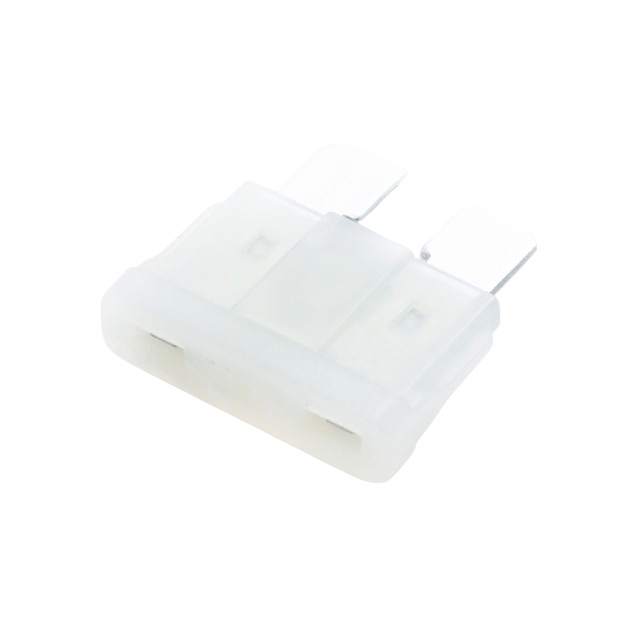

OptiFuse ANR-I-25A	32 V	25 A	Fast Blow	Requires Holder	1 kA	Clear	Automotive	ISO SAE	0.494 "	5 mm	19.3 mm	12.54 mm	0.197 "	0.76 "	Blade ATO/ATC

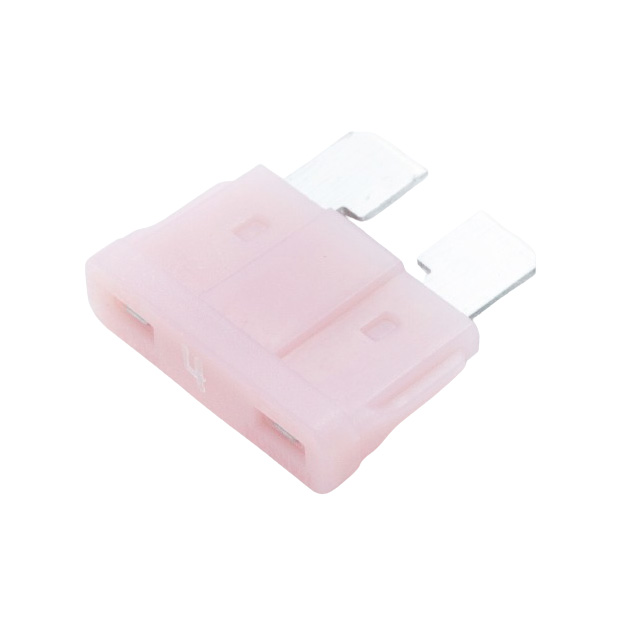

OptiFuse ANR-I-4A	32 V	4 A	Fast Blow	Requires Holder	1 kA	Pink	Automotive	ISO SAE	0.494 "	5 mm	19.3 mm	12.54 mm	0.197 "	0.76 "	Blade ATO/ATC

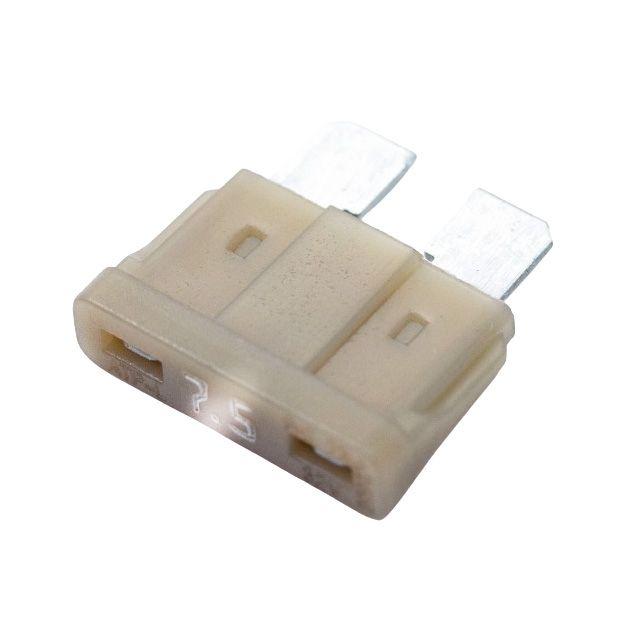

OptiFuse ANR-I-7.5A	32 V	7.5 A	Fast Blow	Requires Holder	1 kA	Brown	Automotive	ISO SAE	0.494 "	5 mm	19.3 mm	12.54 mm	0.197 "	0.76 "	Blade ATO/ATC

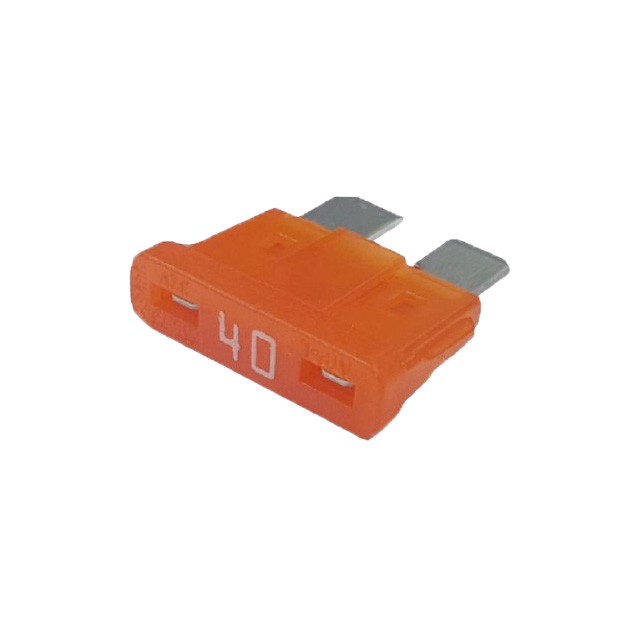

OptiFuse ANR-I-40A	32 V	40 A	Fast Blow	Requires Holder	1 kA		Automotive	ISO SAE	0.494 "	5 mm	19.3 mm	12.54 mm	0.197 "	0.76 "	Blade ATO/ATC

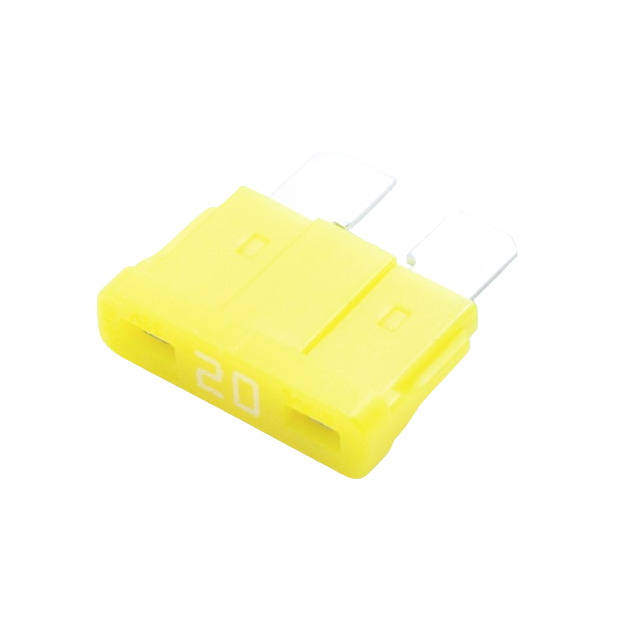

OptiFuse ANR-I-20A	32 V	20 A	Fast Blow	Requires Holder	1 kA	Yellow	Automotive	ISO SAE	0.494 "	5 mm	19.3 mm	12.54 mm	0.197 "	0.76 "	Blade ATO/ATC

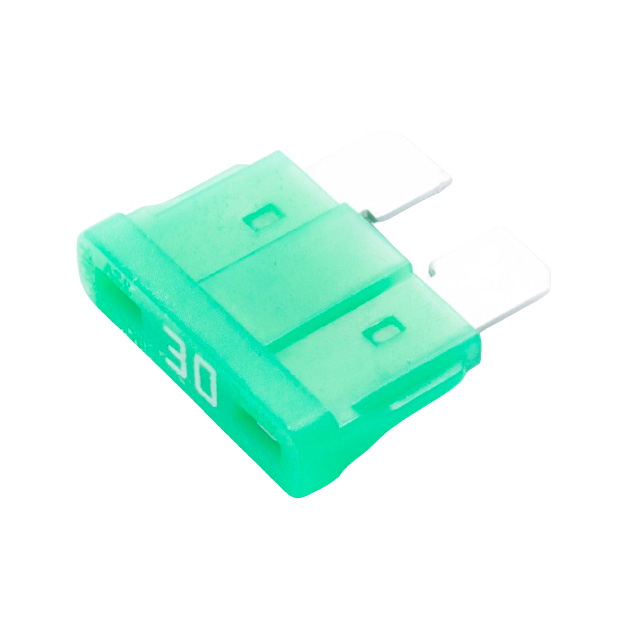

OptiFuse ANR-I-30A	32 V	30 A	Fast Blow	Requires Holder	1 kA	Green	Automotive	ISO SAE	0.494 "	5 mm	19.3 mm	12.54 mm	0.197 "	0.76 "	Blade ATO/ATC

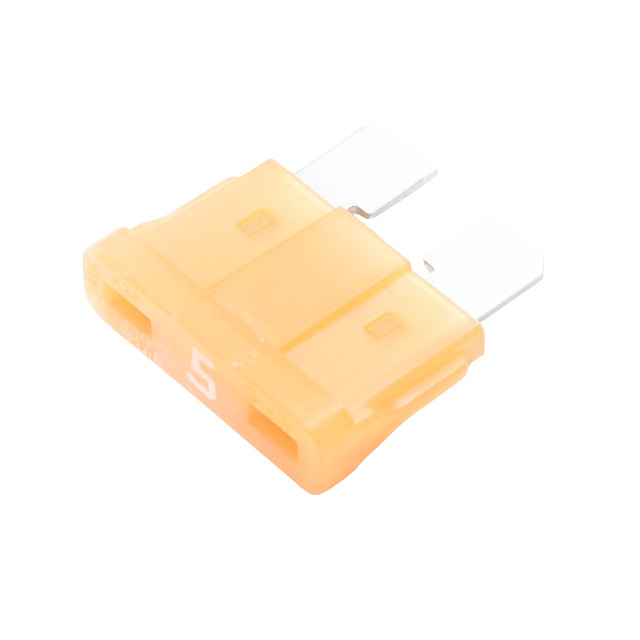

OptiFuse ANR-I-5A	32 V	5 A	Fast Blow	Requires Holder	1 kA	Tan	Automotive	ISO SAE	0.494 "	5 mm	19.3 mm	12.54 mm	0.197 "	0.76 "	Blade ATO/ATC

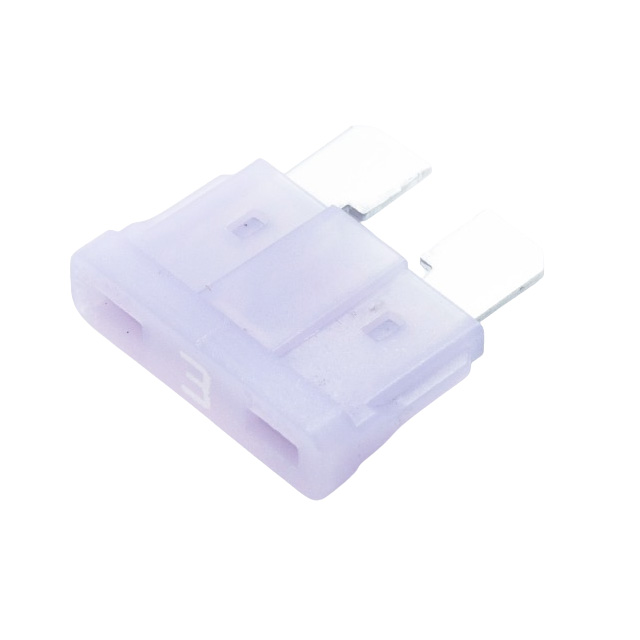

OptiFuse ANR-I-3A	32 V	3 A	Fast Blow	Requires Holder	1 kA	Violet	Automotive	ISO SAE	0.494 "	5 mm	19.3 mm	12.54 mm	0.197 "	0.76 "	Blade ATO/ATC
