GRACE INERTIA 12.4 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

GHC EYELET 12.4 2POS HEADER ASSY BLUE

Part	Applications	Insulation Material	Fastening Type	Contact Shape	Termination	Mounting Type	Current Rating (Amps)	Material Flammability Rating	Insulation Height	Insulation Height	Contact Finish - Post	Style	Contact Type	Connector Type	Voltage Rating	Contact Material	Number of Positions Loaded	Shrouding	Features	Insulation Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Pitch - Mating	Pitch - Mating

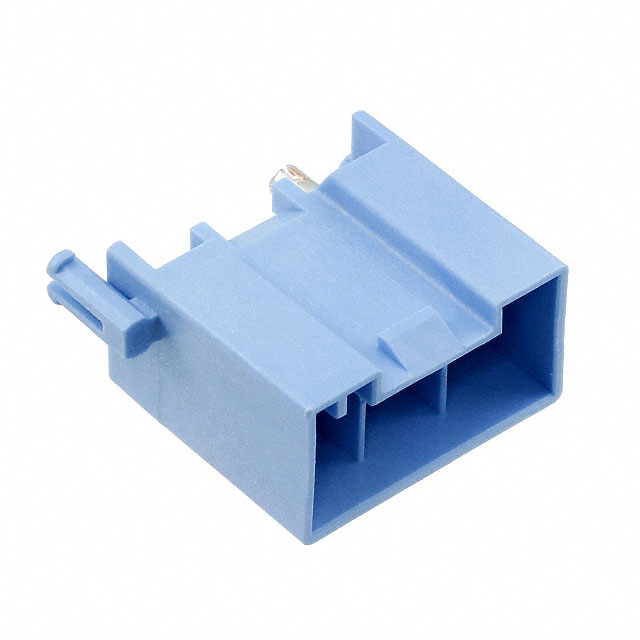

TE Connectivity AMP Connectors 1747996-3	General Purpose Industrial	Glass Filled Nylon 6/6 Polyamide (PA66)	Latch Lock	Rectangular	Solder	Through Hole	Varies by Wire Gauge	UL94 V-0	0.705 in	17.91 mm	Tin	Board to Cable/Wire	Tab	Header	600 VAC	Copper Alloy	All	Shrouded - 4 Wall	Board Lock	Blue	2	-30 ░C	105 ░C	1
TE Connectivity AMP Connectors 1747996-4		Glass Filled Nylon 6/6 Polyamide (PA66)	Latch Lock	Rectangular	Solder	Through Hole	Varies by Wire Gauge	UL94 V-0	0.705 in	17.91 mm	Tin	Board to Cable/Wire	Tab	Header	600 VAC	Copper Alloy	All	Shrouded - 4 Wall	Board Lock	Yellow	2	-30 ░C	105 ░C	1

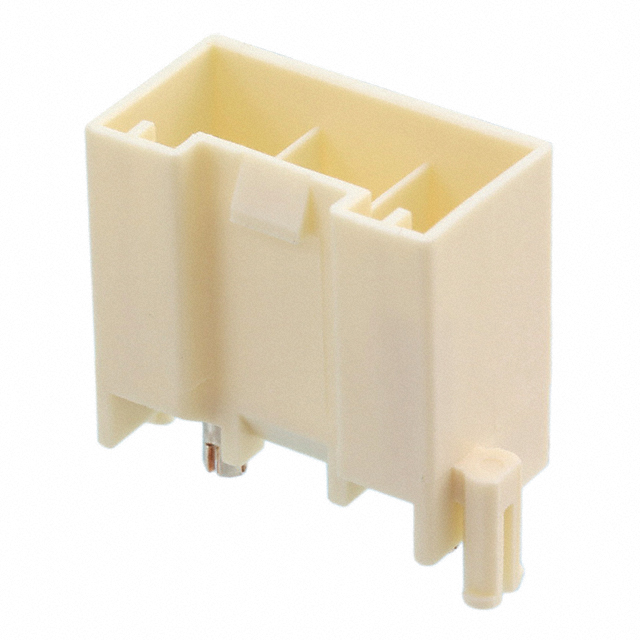

TE Connectivity AMP Connectors 1747996-1	General Purpose Industrial	Glass Filled Nylon 6/6 Polyamide (PA66)	Latch Lock	Rectangular	Solder	Through Hole	Varies by Wire Gauge	UL94 V-0	0.705 in	17.91 mm	Tin	Board to Cable/Wire	Tab	Header	600 VAC	Copper Alloy	All	Shrouded - 4 Wall	Board Lock	Natural	2	-30 ░C	105 ░C	1	0.488 in	12.4 mm

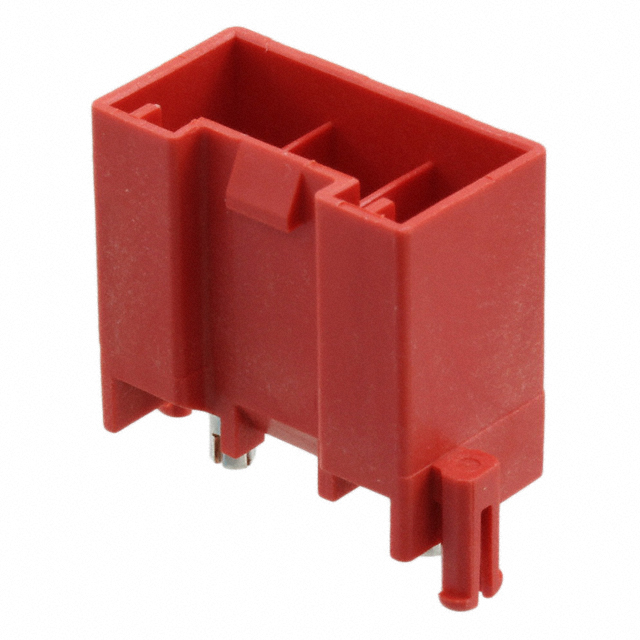

TE Connectivity AMP Connectors 1747996-2	General Purpose Industrial	Glass Filled Nylon 6/6 Polyamide (PA66)	Latch Lock	Rectangular	Solder	Through Hole	Varies by Wire Gauge	UL94 V-0	0.705 in	17.91 mm	Tin	Board to Cable/Wire	Tab	Header	600 VAC	Copper Alloy	All	Shrouded - 4 Wall	Board Lock	Red	2	-30 ░C	105 ░C	1	0.488 in	12.4 mm
