VB60 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K

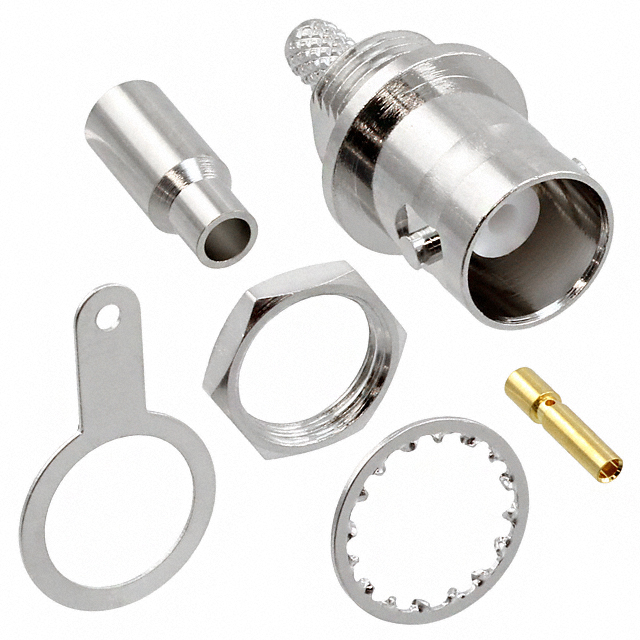

CONN BNC JACK STR CRIMP
| Part | Shield Termination | Connector Type | Contact Termination | Cable Group | Fastening Type | Mounting Type | Number of Ports | Connector Style | Mounting Feature | Body Finish | Body Material | Voltage Rating | Insertion Loss | Mating Cycles | Dielectric Material | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Impedance | Center Contact Material | Frequency - Max [Max] | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | Crimp | Female Socket Jack | Crimp | RG-174 | Bayonet Lock | Panel Mount | 1 | BNC | Bulkhead - Rear Side Nut | ||||||||||||||
 Cinch Connectivity Solutions | Crimp | Female Socket Jack | Crimp | RG-174 | Bayonet Lock | Panel Mount | 1 | BNC | Bulkhead - Rear Side Nut | Nickel | Brass | 500 V | 0.2 dB | 500 | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Contact 1 Ferrule 1 Nut 1 Solder Tag 1 Washer | -65 ░C | 165 °C | Gold | 50 Ohms | Brass | 4 GHz | Silver |
