UB16NKG Series

Catalog

SWITCH PUSHBUTTON SPDT 0.4VA 28V

Part	Electrical Life	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Actuator Marking	Current Rating (Amps)	Switch Function	Mounting Type	Illumination Voltage (Nominal)	Voltage Rating - AC	Actuator Type	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Type	Voltage Rating - DC	Color - Actuator/Cap	Features	Circuit
NKK Switches UB16NKG015C-JC	200000 Cycles	200000 Cycles	50 °C	-25 °C	LED Red	No Marking	0.4 VA	On-On	Panel Mount Snap-In	1.85 VDC	28 V	Button Rectangular	Solder Lug	16.2 mm	22.4 mm	Illuminated Standard	28 V	Clear	Process Sealed	SPDT
NKK Switches UB16NKG015F-JF	200000 Cycles	200000 Cycles	50 °C	-25 °C	Green LED	No Marking	0.4 VA	On-On	Panel Mount Snap-In	2.1 VDC	28 V	Button Rectangular	Solder Lug	16.2 mm	22.4 mm	Illuminated Standard	28 V	Clear	Process Sealed	SPDT
NKK Switches UB16NKG015C	200000 Cycles	200000 Cycles	50 °C	-25 °C	LED Red	No Marking	0.4 VA	On-On	Panel Mount Snap-In	1.85 VDC	28 V	Plunger for Cap	Solder Lug	16.2 mm	22.4 mm	Illuminated Standard	28 V		Process Sealed	SPDT
NKK Switches UB16NKG015D	200000 Cycles	200000 Cycles	50 °C	-25 °C	Amber LED	No Marking	0.4 VA	On-On	Panel Mount Snap-In	2 VDC	28 V	Plunger for Cap	Solder Lug	16.2 mm	22.4 mm	Illuminated Standard	28 V		Process Sealed	SPDT

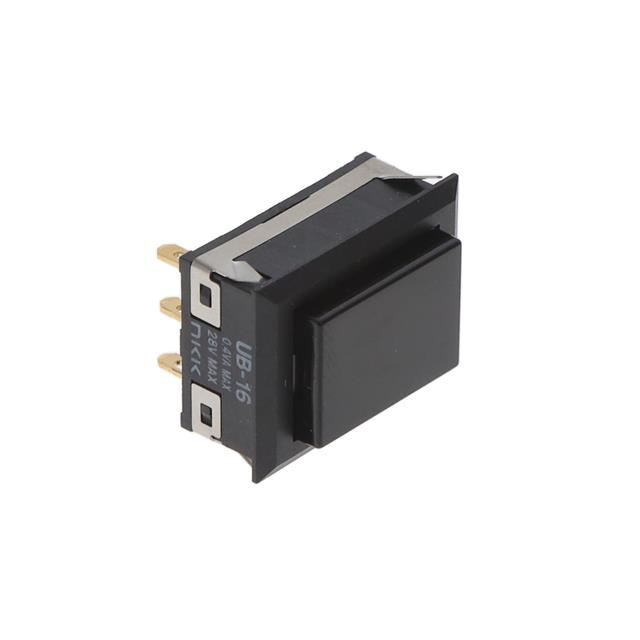

NKK Switches UB16NKG01N	200000 Cycles	200000 Cycles	70 °C	-20 ░C		No Marking	0.4 VA	On-On	Panel Mount Snap-In		28 V	Plunger for Cap	Solder Lug	16.2 mm	22.4 mm	Standard	28 V		Process Sealed	SPDT

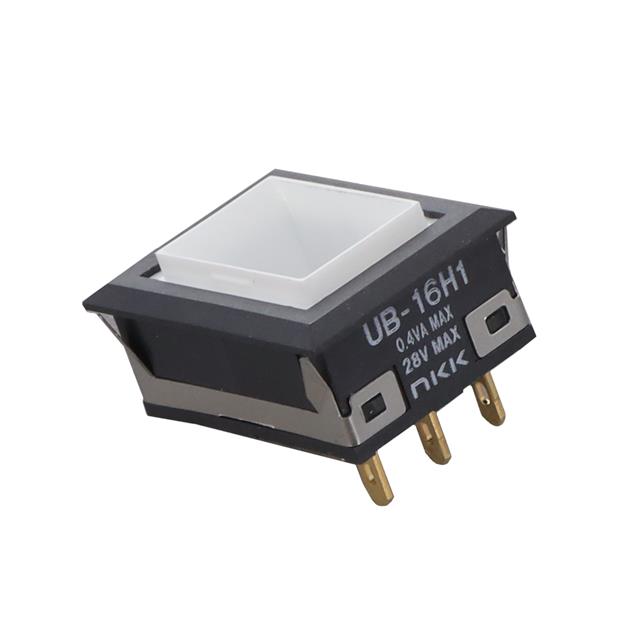

NKK Switches UB16NKG015F	200000 Cycles	200000 Cycles	50 °C	-25 °C	Green LED	No Marking	0.4 VA	On-On	Panel Mount Snap-In	2.1 VDC	28 V	Plunger for Cap	Solder Lug	16.2 mm	22.4 mm	Illuminated Standard	28 V		Process Sealed	SPDT
