SLC Series
Manufacturer: Preci-Dip
Beta
⌘K

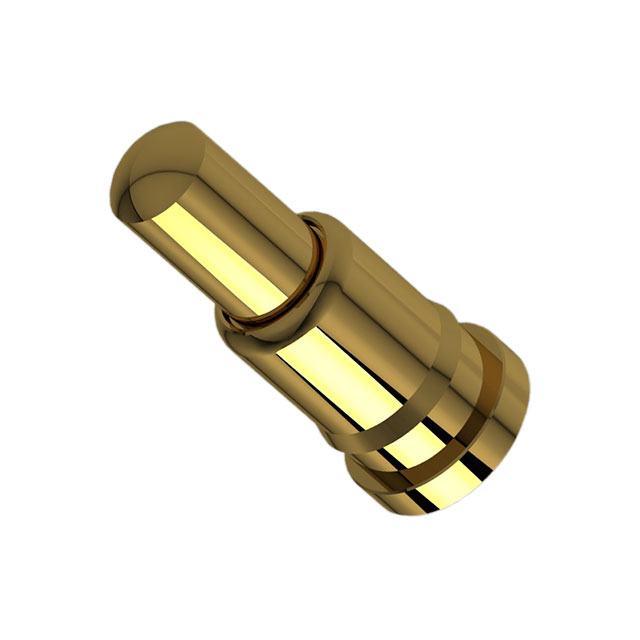

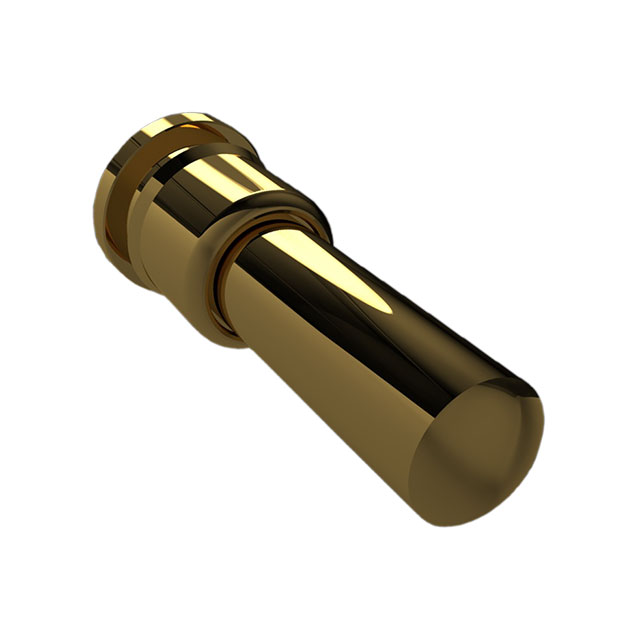

HEADERS & WIRE HOUSINGS SMD SPRING LOADED CONTACT, PRESS-IN MOUNT INTO 1.58MM HOLE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pad Layout Dimension | Pad Layout Dimension | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Maximum Working Height [Max] | Maximum Working Height [Max] | Mating Cycles | Contact Finish | Plunger Size [diameter] | Plunger Size [diameter] | Current Rating (Amps) | Operating Force - Initial | Minimum Working Height [Min] | Minimum Working Height [Min] | Mounting Type | Operating Force - Mid Compression | Contact Type | Minimum Working Height | Minimum Working Height | Pad Layout Dimension | Maximum Working Height | Maximum Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 0.072 in | 1.83 mm | 20 µin | 0.51 µm | Brass Alloy | 6.5 mm | 0.256 in | 40000 | Gold | 0.042 in | 1.07 mm | 3 A | 25.49 gf | 0.201 in | 5.1 mm | Surface Mount | 61.18 gf | Sleeve & Plunger (Pogo Pins) | |||||
 Preci-Dip | -55 C | 125 °C | 0.072 in | 1.83 mm | 20 µin | 0.51 µm | Brass Alloy | 4.5 mm | 0.177 in | 40000 | Gold | 0.042 in | 1.07 mm | 3 A | 25.49 gf | Surface Mount | 61.18 gf | Sleeve & Plunger (Pogo Pins) | 3.1 mm | 0.122 in | |||||
 Preci-Dip | -55 C | 125 °C | 0.055 in 1.4 mm | 20 µin | 0.51 µm | Brass Alloy | 40000 | Gold | 0.042 in | 1.07 mm | 3 A | 25.49 gf | Through Hole | 61.18 gf | Sleeve & Plunger (Pogo Pins) | 6.13 mm | 0.241 in | Circular | 7.53 mm | 0.296 in |
